EPL-Offline Controller

A:

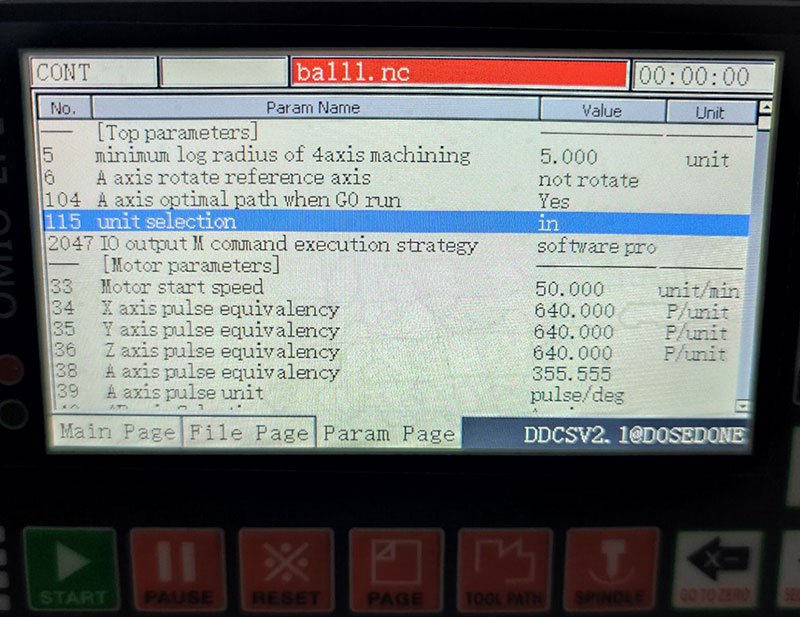

Yes. Please see following picture, set #115 value to "in" .

Please note that if your machine was purchased before Mar 2021, it doesn’t support inch.

A:
Step 1 , look at the following calculation:

Stepping motor 1.8 degrees, it needs 200 pulses to make a circle (200*1.8=360 degrees),

Now the default setting of the X8-2200EPL machine's stepper driver is 16 subdivisions,

That is, 200*16=3200 pulses are needed for the stepper motor to make one revolution;

Because the A-axis reduction ratio is 10:1,

So the stepper motor needs 3200*10=32000 pulses before the chuck can make one revolution.

That is, 32000/360=88.889 pulses are required for the chuck to rotate 1 degree.

Step 2, see attached picture, set the value of No.38 to 88.889. （如果是H60-A轴， 设置为35.555）

A:

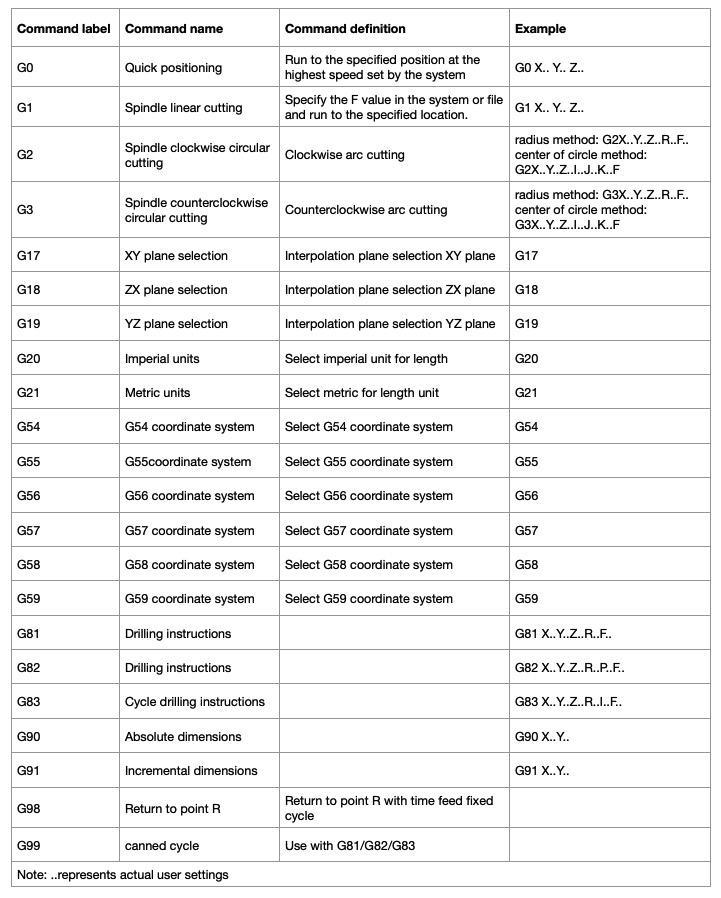

Yes. Please see following two pictures.

A:

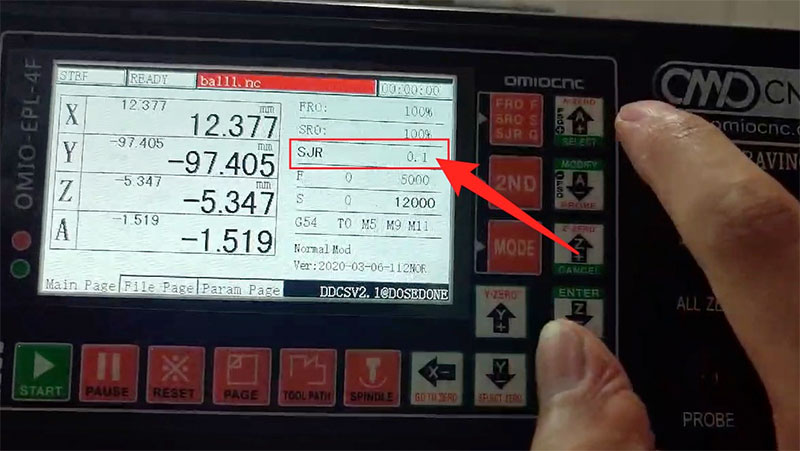

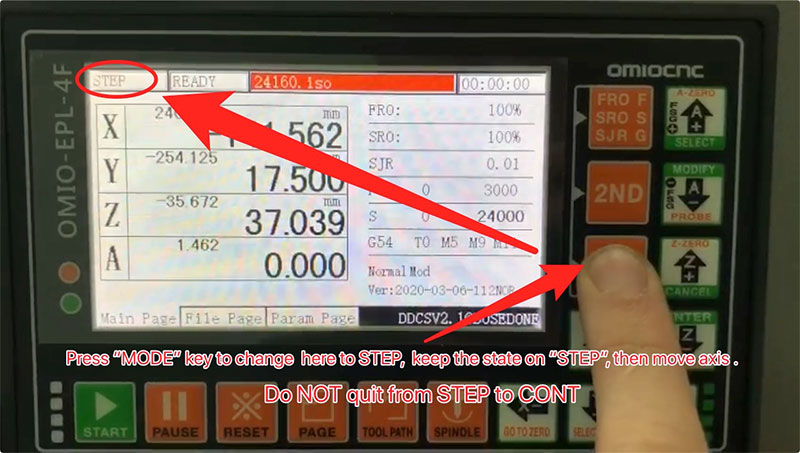

Please see following two pictures.

A:

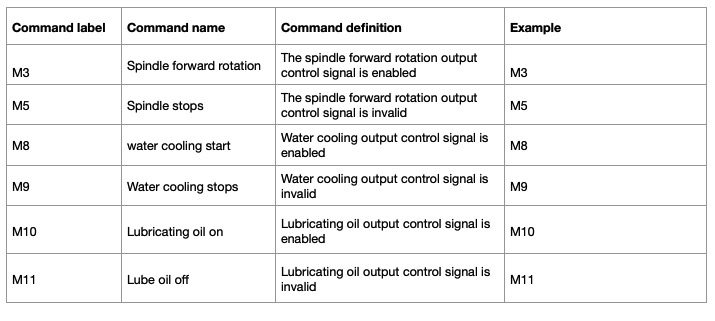

add code to in the program if need to stop and changing tool.
..........................................................................................
M0 (pause)
M5 (spindle stop) after manually changing the tool, press the start key, the program will continue to run.
M3 (spindle start)
..........................................................................................
