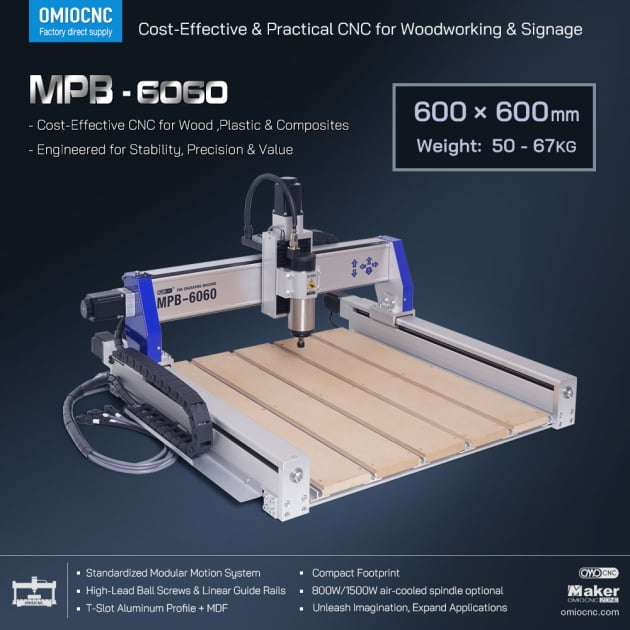

OMIOCNC MPB-6060 CNC Router | Large-Format, Affordable Machine for Woodworking, Signage & Panel Processing
Standard Configuration:
Priced at $1,450. Includes 220V, 800W spindle. Without spoilboards.
Important Notes:
- The 100V-120V version is not available with an 800W spindle. Please select the 1500W option.
- Shipping costs are weight-based and calculated in cart. We recommend sourcing spoilboards locally. Details here
MPB 6060/9090 Series:
Cost-Effective & Practical CNC Router for Woodworking, Signage & Panel Processing
The MPB 6060/9090 Series are engineered to deliver exceptional value and practicality, specifically tailored for the demanding needs of the woodworking, signage, and panel processing industries. It is the ideal productive workhorse for startups, individual studios, and workshops seeking reliable performance without a heavy capital investment.

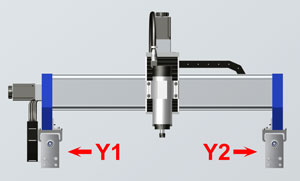

Standardized Modular Motion System
- XYZ Axes Design: Each axis employs professional-grade linear motion modules.
- Core Benefit: Ensures exceptional machine stability while allowing for easy disassembly and transport.
- Y-Axis Innovation: Features a dual-drive synchronous system. This architecture effectively eliminates the impact of uneven load on the machine, facilitates convenient maintenance, and allows for future expansion.

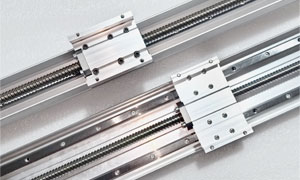

High-Lead Ball Screws & Linear Guide Rails
- Drive System: Utilizes 10 mm lead ball screws.
- Performance: Enables outstanding positioning precision and high-speed motion.
- Guidance System: Square-type linear guide rails offer extremely high rigidity.
- Result: Ensures smooth, chatter-free movement on all axes, making it ideal for large-format, high-quality cutting applications.

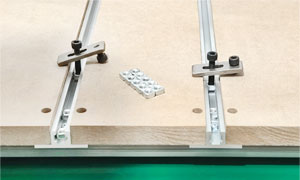

T-Slot Aluminum Profile + MDF Composite Worktable
- Surface Layer: MDF (Medium-Density Fiberboard) serves as a low-cost, easily replaceable sacrificial layer.
- User Advantage: Users can purchase replacement MDF locally, greatly reducing long-term maintenance costs and downtime.
- Structural Frame: T-slot aluminum profiles form the base, significantly increasing worktable load capacity and durability.
- Workholding: Insert square nuts into the T-slots and use clamps for fast, secure workpiece holding. This design is especially productive for batch cutting operations.
Exceptional Value, Accessible Performance
- With its unparalleled price-to-performance ratio, the MBP Series is positioned to become a reliable and productive cornerstone in your shop. It delivers industrial-grade capabilities tailored for startup companies and individual studios, minimizing the barrier to entry for professional CNC machining.

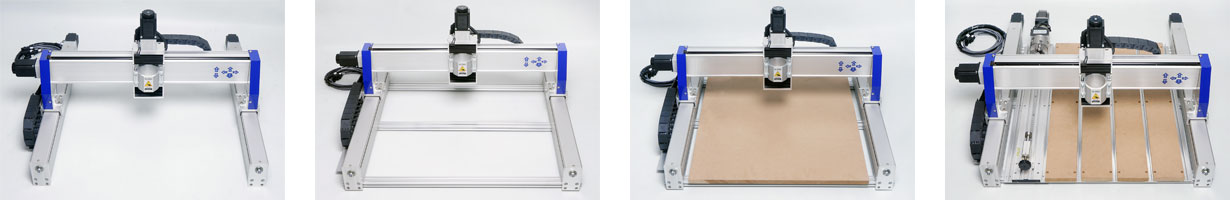

Unleash Your Imagination: A Versatile Application Platform
This machine is essentially still a standard gantry 3-axis motion platform (gantry robot). Apart from its existing CNC engraving function, let your unlimited imagination run wild to explore more application scenarios.

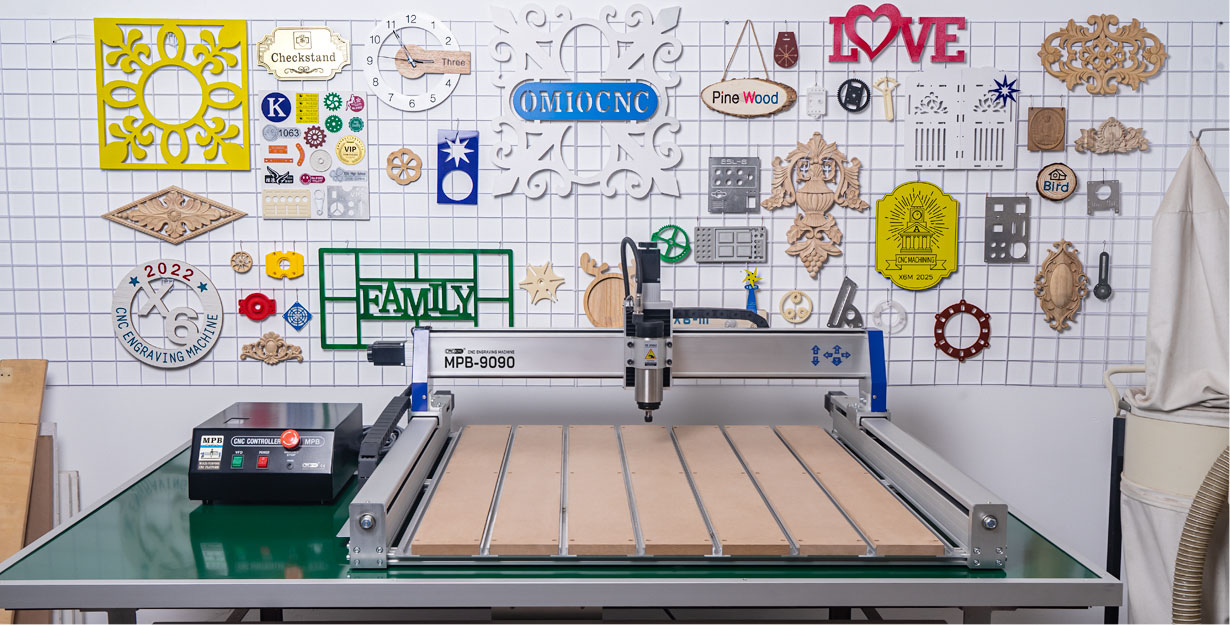

Suitable Materials
The MBP 9090/6060 Series is versatile and capable of processing a wide range of industry-standard materials, including but not limited to:
Wood & Derived Panels
- Solid Woods (Hardwood & Softwood)
- Plywood, MDF, Particleboard
- Composite Panels for Interior Finishing
Signage & Plastics
- Sign Board (PVC, Acrylic/PMMA)
- Engineering Plastics.
Composites & Specialties
- Metal-Plastic Composites
- And a wide range of similar machinable materials.

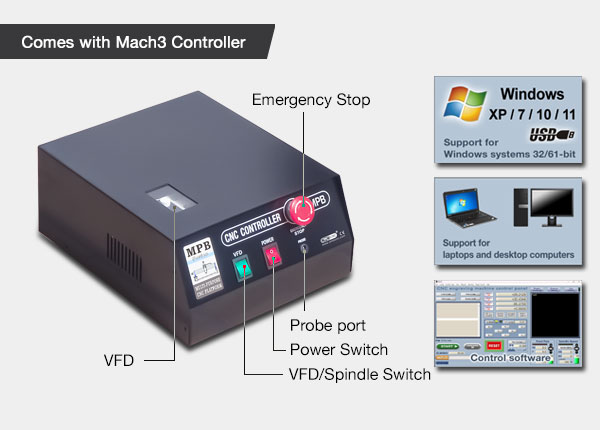

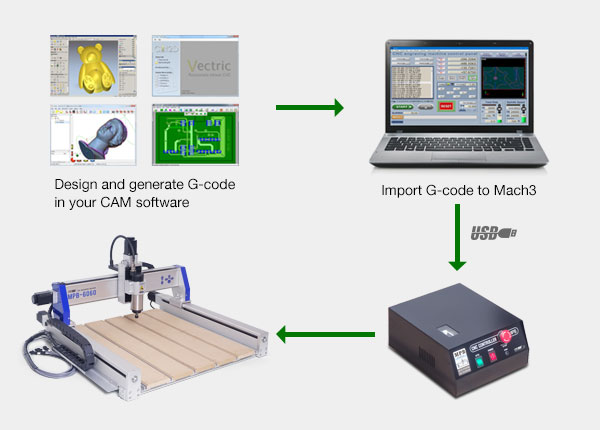

Control System
The device comes standard with the Mach3 Controller, which requires connection to a computer and is controlled via Mach3 software.
Specifications
| Specification | MPB-6060 | MPB-9090 |
|---|---|---|
| Max. Work Envelope (X/Y/Z) (mm): | XYZ = 600 × 600 × 100 | XYZ = 900 × 900 × 100 |
| Acceptable Material Thickness (mm): | ≤ 135mm | ≤ 135mm |
| Machine Dimensions (mm): | LWH = 924 × 880 × 520 | LWH = 1224 × 1190 × 520 |
| Weight (Including Packaging) (kg): | 50 kg (Without spoilboards) 57 kg (With MDF spoilboards) 63 kg (With Aluminum Alloy spoilboards) |
60 kg (Without spoilboards) 73 kg (With MDF spoilboards) 81 kg (With Aluminum Alloy spoilboards) |
| Package Dimension (cm): | Standard (without spoilboards): 2 boxes
|
Standard (without spoilboards): 2 boxes
|
| If MDF/Aluminum spoilboards ordered: +1 extra box (total 3 boxes) | ||
| Frame Material: | 6061/6063 Extruded Aluminum Alloy | |
| Rail Type: | HG/EG15 Linear Guide Rails | |
| Screw Rod Type: | X-Y Axis: 1610 Ball Screw, Z Axis: 1605 Ball Screw | |
| Feed Rate: | 100~8000 mm/min | |
| Positioning Accuracy (mm): | 0.05mm | |
| Spindle Type: | Variable Frequency Spindle 800W / 1500W optional, 24000 RPM | |
| Collet Type: | ER11 Collet 3.175mm - 6.35mm | |
| X/Y/Z Stepper Motor: | NEMA 23-H76, 2-phase/1.8°, 3.0A / 2.3N.m | |
| X/Y/Z Stepper Drives: | 2-phase High Performance DSP Intelligent Digital Stepper Drives | |
| Control System: | Mach3 Controller (USB connection) | |
| Computer Requirements: | Laptop or Desktop PC with Windows 7/10/11 Windows on Mac not supported. |
|
| Acceptable Command Code: | G-code (file type: .nc / .ncc / .tap / .txt) | |
| Power: | 100V~120V or 220V~240V (50/60Hz) | |
| Environment: | Temperature: 5°~40℃; Humidity: 35 to 80% | |

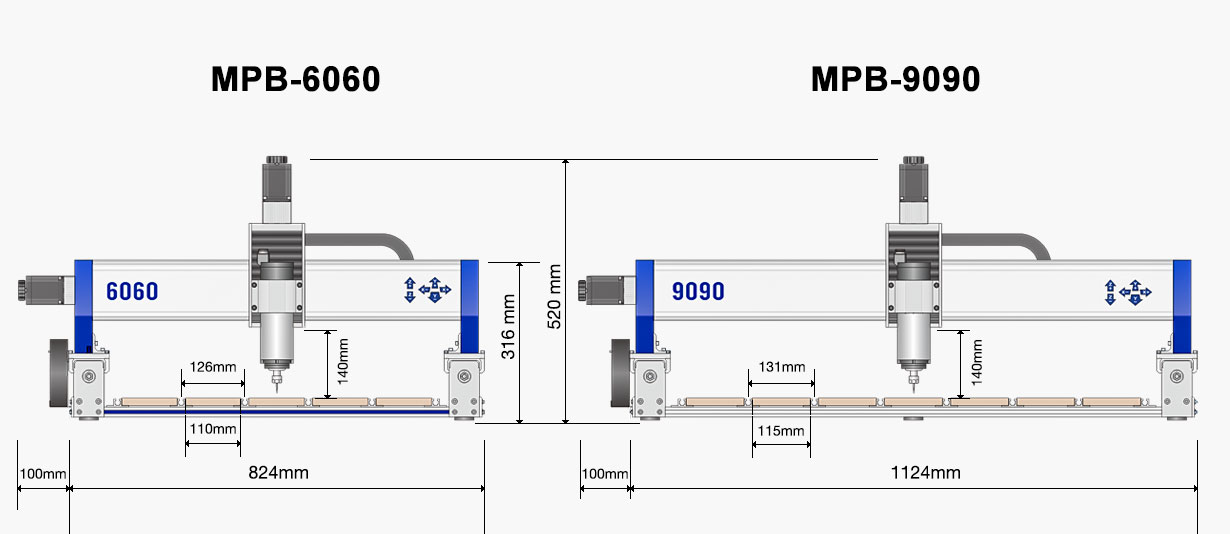

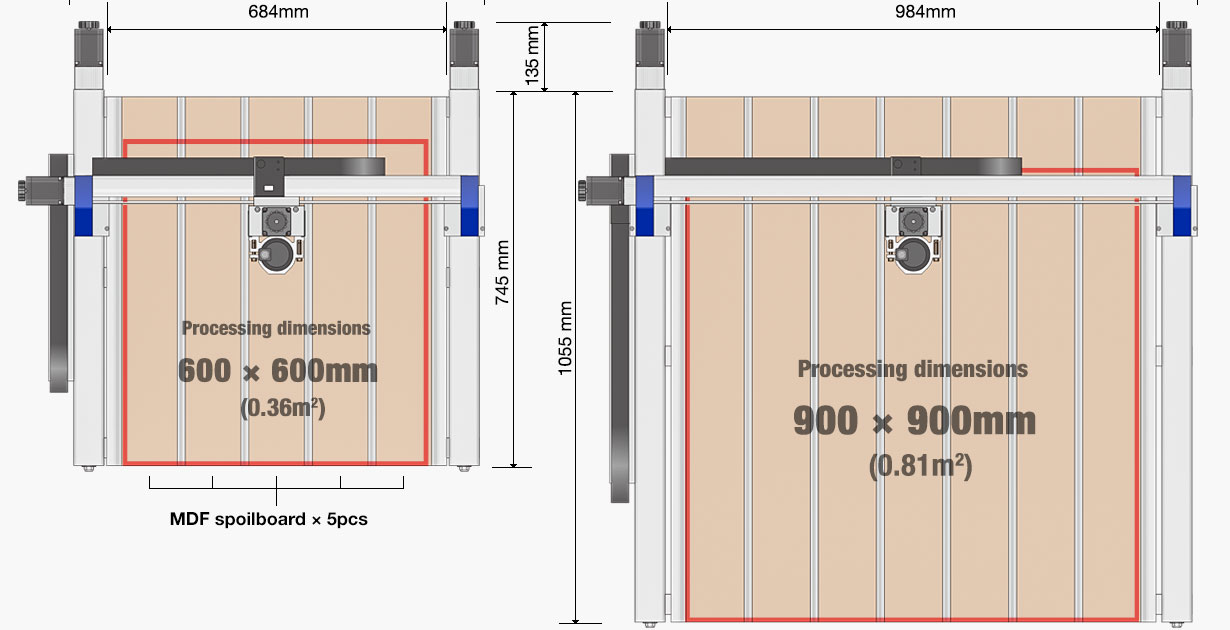

Equipment Dimensions
Support for long materials machining segmented.The spindle fixed position can be adjusted up or down.

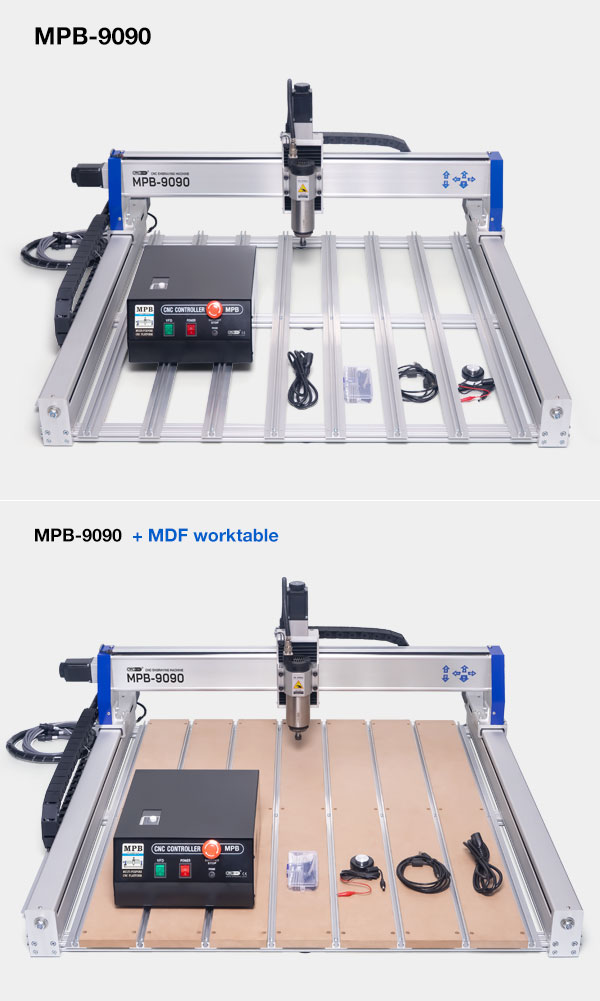

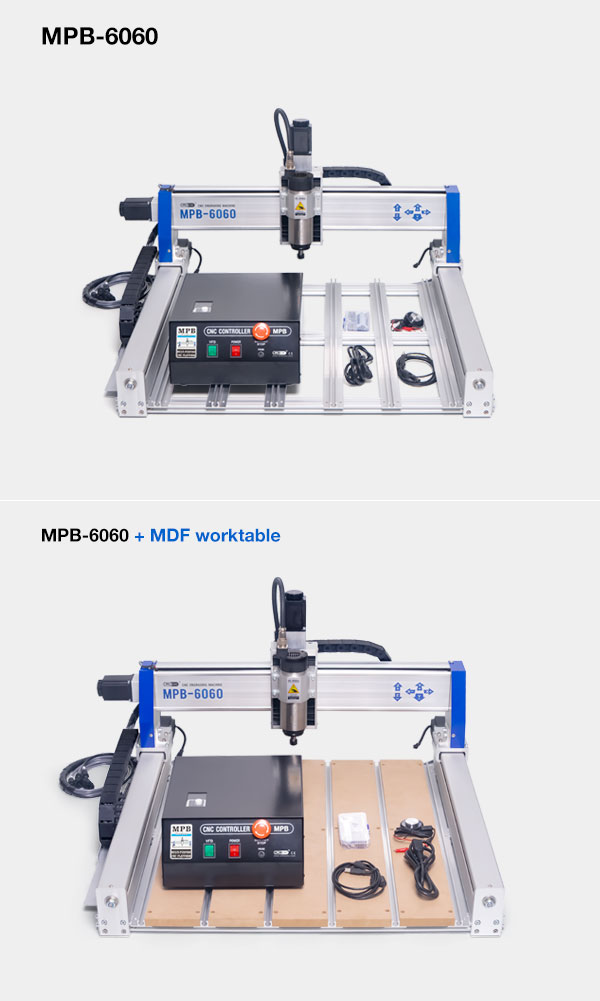

Packing List
We offer two packaging options for both the 6060 and 9090 models: with or without the MDF spoilboard. We highly recommend choosing the version without the MDF spoilboard.
Here’s why:
- The MDF board is a consumable item that will eventually wear out and need replacement.
- High International Shipping Cost: While the MDF itself is inexpensive, its large size and weight significantly increase international air freight costs, which ultimately adds to your expense.

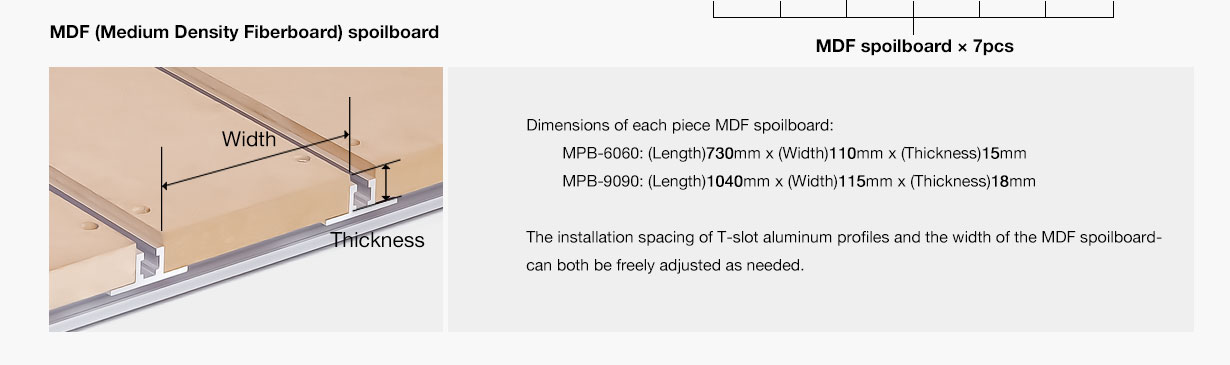

- Easier & More Economical Local Sourcing: You can easily purchase standard MDF board locally at a hardware store (the required dimensions are listed in the "Machine Dimensions" section above). Installation is straightforward: simply drill holes in the MDF board according to the hole pattern on the T-slot aluminum profiles, and it’s ready to use or replace.
This approach saves you unnecessary shipping costs and simplifies future maintenance.

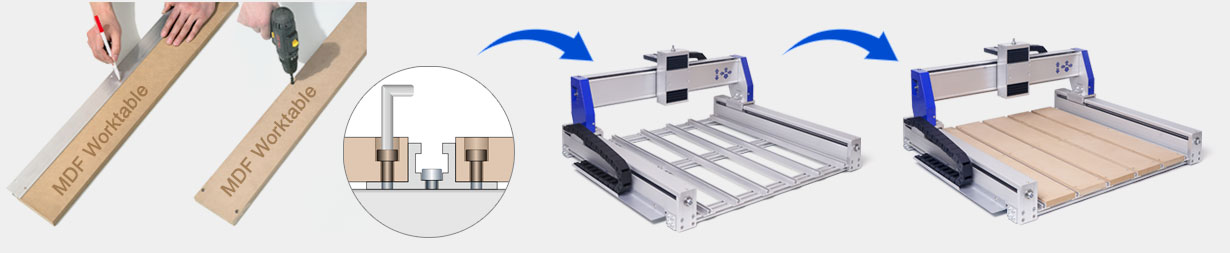

How to make MDF spoilboards for your MPB?
Support & Warranty
We stand behind our machines with comprehensive support to ensure your success from day one.
1. Documentation Support
Upon purchase, we will email you a complete set of documentation, including:
- User Manual & Setup Guide
- Mach3 Configuration Files & Configuration Guide
- Useful G-code Sample Files
- Basic Operation and Maintenance Tips
2. Technical Support
Customers are entitled to 2 years of free technical support via email for any questions related to the standard operation and use of the machine.
- Scope: Covers setup, software configuration, standard usage, and equipment troubleshooting.
- Response Time: We aim to reply within 24 hours (accounting for time zone differences).
- Note: Support does NOT cover modifications to the machine or issues with third-party products.
3. Warranty Coverage
We offer a robust warranty on all MPB Series machines for your peace of mind.
- Mechanical Hardware (Frame, Rails, Screws, etc.): 2 Years
- Electronic Modules (Controllers, Drives, Motors, etc.): 1 Year
For full details on terms, conditions, and the warranty claim process, please refer to our complete Warranty Terms & Conditions.
4. Replacement Parts Support
We are committed to supporting your machine for the long term.
- Genuine spare parts for all MPB Series machines are available for up to 10 years from the date of purchase.
- If you need any component, from a single bolt to a major module, please contact us with your machine's serial number and the part name/number.
- We provide competitive pricing and global shipping for all spare parts.
