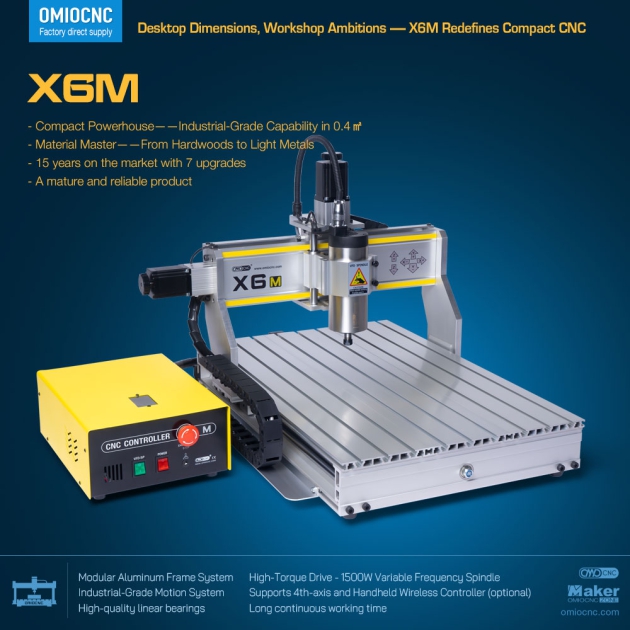

X6M Desktop CNC Machine: Cost-Effective Creativity Partner
The X6M is an industrial-grade desktop CNC machine engineered for small-scale woodworking, with capability for soft metal processing such as aluminum alloys. With 15 years of market presence and 7 major upgrades, it has earned certification from over 6,000 global users.
Ideal for studios, sign shops, craft entrepreneurs, and DIY enthusiasts, this machine shatters the 'compact equals compromise' stereotype by delivering workshop-grade machining performance in a compact 0.4m² footprint — smaller than standard office desks.
Latest Version Release
- Latest technological iteration — 30% performance improvement
- Cost-effective Solution — 40% reduced maintenance costs
- Professional-grade Body — Aerospace-grade aluminum alloy construction
- 1500W Variable Frequency Spindle — ±0.02mm precision
- Compact Design — 25% reduced footprint
- Travel Range: 380×575×80mm
Turn Your Ideas Into Real Products with This Desktop CNC Machine
It's easy to use, takes up very little space, and is fast, secure, and reliable. Start making your product today.
Clock Parts
Wooden Fruit Bowl
Copper Nameplate
Industrial Components
UAV Parts
Wooden Comb
Food Mold
Food Mold
Art Decor
Signage
Signage
Wooden Artwork
EVA Foam Mold
EVA Foam Mold
Signage

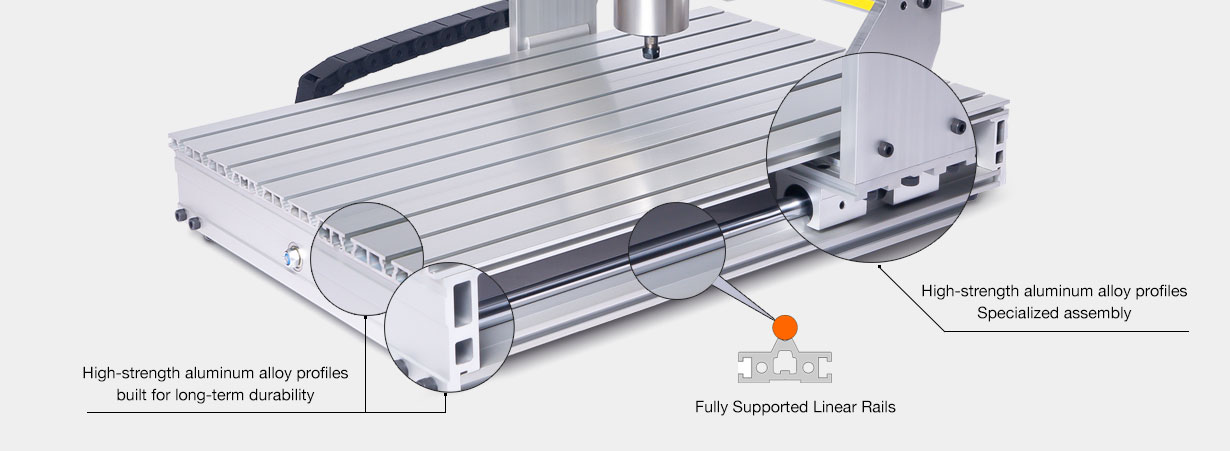

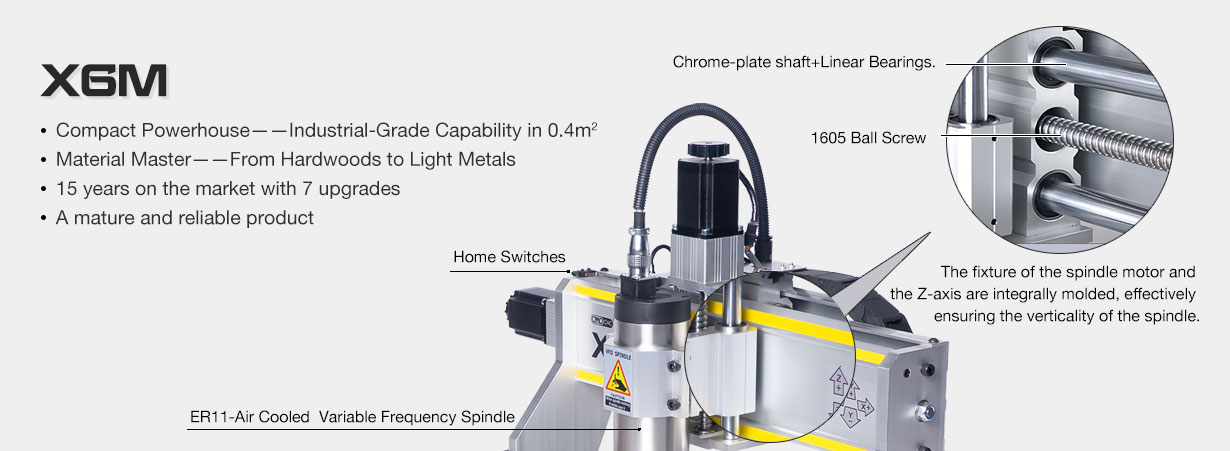

Machine Features of the X6M Desktop CNC Router
All frame materials using 6061-T5 extruded aluminum profiles, higher density, higher strength. Professional installation and fixation methods of the screw, and clasped type couplings.

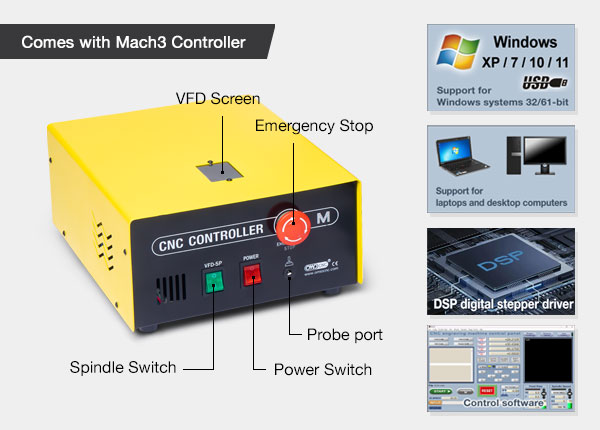

Control System for Your CNC Engraving Machine
The device comes standard with the Mach3 Controller, which requires connection to a computer and is controlled via Mach3 software.
Mach3 Controller Setup

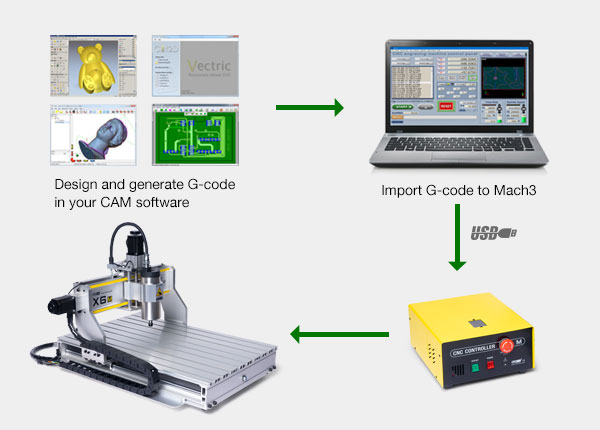

Mach3 Workflow
Technical Specifications of the X6M Desktop CNC Machine
| Specification | X6M |
|---|---|
| Machine Dimensions (mm): | LWH = 876 × 662 × 542 |
| Max. Working Travel (mm): | XYZ = 380 × 575 × 80 |
| Acceptable Material Thickness (mm): | ≤ 110 |
| Frame Material: | 6061-T6 Extruded Aluminum Alloy |
| Rail Type: | Chromeplate Shaft + Linear Bearings |
| Screw Type: | Ball Screw (1605) |
| Positioning Accuracy: | 0.05mm |
| Spindle Motor: | Standard: Air-Cooled 1500W Variable Frequency Spindle, 24000 RPM. Optional upgrade to water-cooled spindle. |
| Revolution Speed: | 1000~24000 rpm/min |
| Collet Type: | ER11 |
| X/Y/Z Stepper Motor: | NEMA23 - Two-phase / 1.8°, 3A / 1.8 N.m |
| X/Y/Z Stepper Drives: | High-performance independent stepper driver board for each axis |
| Feed Rate: | 300~4000 mm/min |
| Control System: | Mach3 Controller (USB Connection) |
| Computer Requirements: | Laptop or Desktop PC with Windows 7/10/11 Windows on Mac not supported. |
| Acceptable Command Code: | G-code (file types: .nc / .ncc / .tap / .txt) |
| Power: | 100V~120V or 220V~240V (50/60Hz) |
| Environment: | Temp: 5°~40°C; Humidity: 35 to 80% |
| Weight (kg): | 55kg |
| Package (cm): | 2 boxes. Box1: 63×38×45, Box2: 83×17×60 |

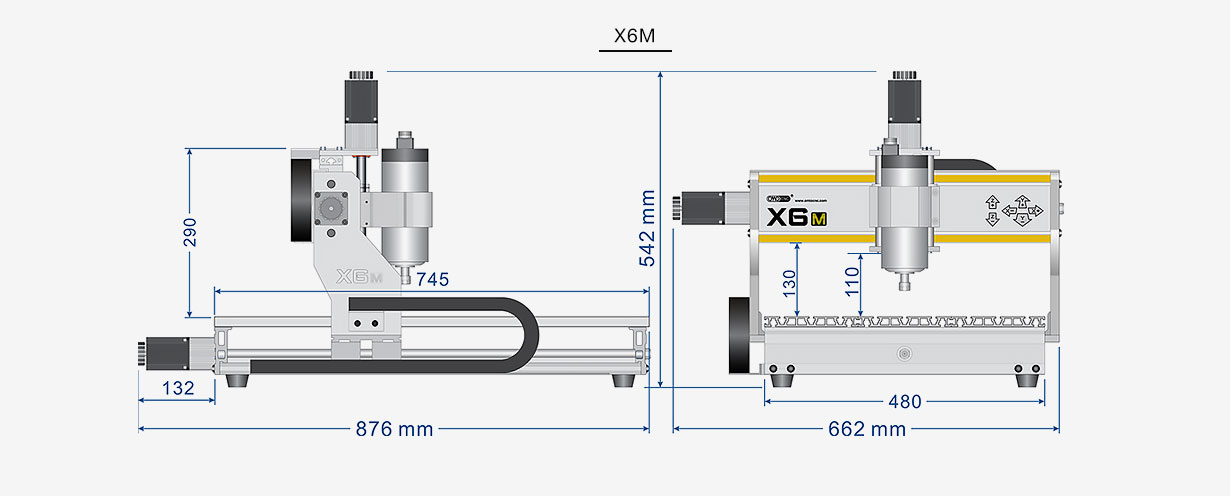

Equipment Dimensions for the X6M
Support for long materials machining segmented. The spindle fixed position can be adjusted up or down.

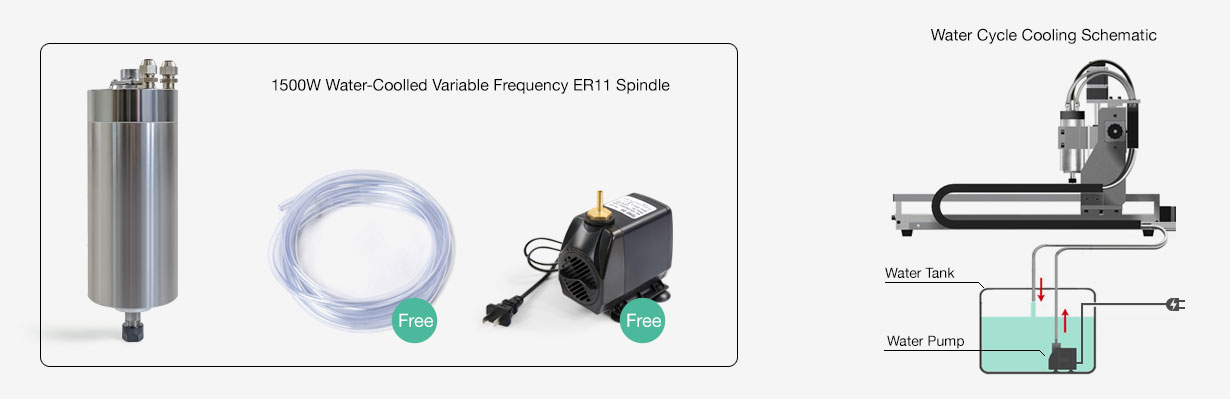

Water-Cooled Spindle Upgrade Option
If you choose a water-cooled spindle, we will give you a water pipe and a water pump for free.
