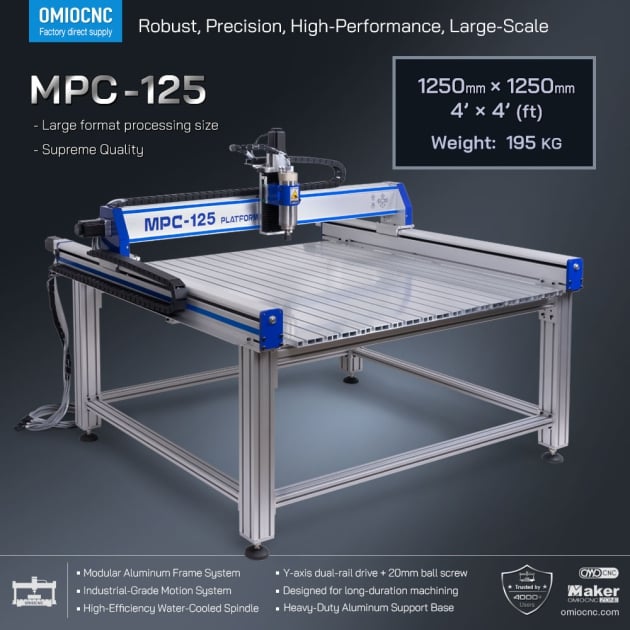

MPC-125 Large-Format 4x4ft CNC Router | 1250×1250mm Industrial Machining

$4,500.00
In stock
SKU
MPC-125

Important Notes:

Due to the weight, dimensions, and shipping requirements of this machine:

  • Online purchasing is not available for this unit.
  • This machine must be shipped via ocean freight. If you are interested in purchasing, please click here to view the detailed purchasing process or click the button below to contact us.
Wish List
MPB-9090 CNC Router | Carving Milling Engraving Machine Previous OMIOCNC MPB-9090 CNC Router | Carving Milling Engraving Machine


MPC-125: Multi-Purpose CNC System Platform — Large-Scale Industrial Machining Solution

The OMIOCNC MPC-125 is a professional, large-format (4x4 ft / 1250x1250mm) CNC router engineered for industrial-scale production. Featuring a heavy-duty gantry, 2.2KW water-cooled spindle, and 8 proprietary patents, it delivers precision and speed for wood, plastics, composites, and non-ferrous metals.

  • Extra-Large Machining Area: Provides a 1250×1250mm (approx. 4x4 ft) large-format workspace, specifically designed for handling oversized workpieces.
  • Wide Range of Applications: Suitable for diverse industries, including:
    • Furniture Manufacturing
    • Musical Instrument Making (e.g., Guitars)
    • Clock and Watch Manufacturing
    • Signage and Plaque Production
    • RC Aircraft Model and Robotics Component Fabrication
  • High-Rigidity HD Gantry Structure: Features reinforced columns that expand the working envelope while ensuring superior overall structural integrity.
  • High-Strength Aluminum Alloy Base: The entire machine base is constructed from high-strength aluminum alloy, delivering exceptional operational stability.
  • Industrial-Grade Core Motion System: Employs a large industrial-grade configuration, achieving machining speeds of up to 8000mm/min for materials like wood and plastic.
  • Exceptional Cost-Performance Ratio: Its overall machining performance and efficiency far surpass other products in the same category and size range.



Machine Features & Patented Technologies

The MPC-125 incorporates 8 exclusive patented technologies. All frame materials use 6061/6063-T6 extruded aluminum profiles with higher density and strength. Each material maintains high consistency, effectively minimizing errors during machining. The Y-axis features a dual-rail design with higher-grade square linear guideways and 20mm-diameter ball screws, increasing load capacity by 80% and rigidity, making it more suitable for high-speed machining. Additionally, the professional screw fixation method and clamp-type couplings ensure high-speed and long-term operation reliability.

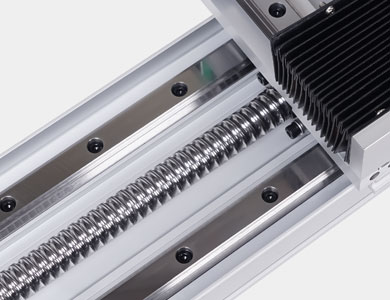

MPC-125 CNC Router XYZ-axis with H20 square linear guide rails and 2010 ball screws
Professional H20 square linear guides and high-precision 2010 ball screws ensure smoother motion and higher accuracy.

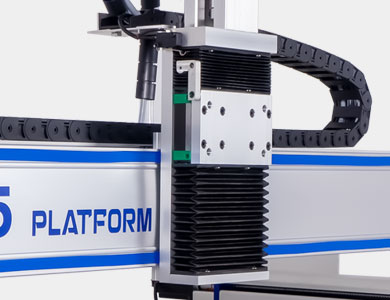

MPC-125 Z-axis sealed dustproof structure for component protection
Z-axis adopts a sealed dust-proof structure, effectively protecting its precision components.

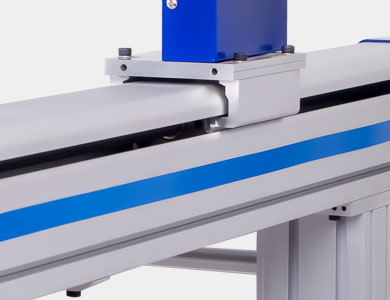

MPC-125 patented Y-axis dual-track dual-motor drive system
Patented Y-axis design with specialized molds: Dual-track dual-motor system, H20 square linear guides with double sliders, paired with high-load-capacity 2010 ball screws.

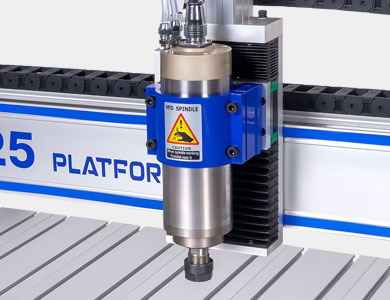

MPC-125 industrial 2.2KW ER20 water-cooled spindle motor
Industrial-grade 2.2KW ER20 water-cooled spindle—High power & torque, capable of continuous 12-hour operation.

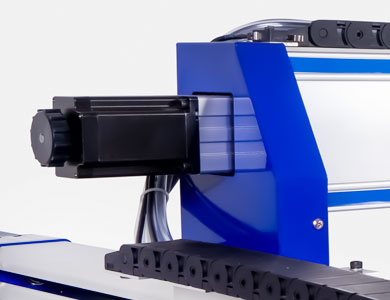

MPC-125 high-torque 3.2N·m stepper motor
High-torque stepper motor (3.2N·m): Load capacity ↑28%, acceleration ↑22% at same RPM, significantly improving start-stop performance.

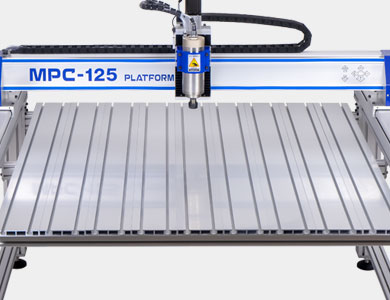

MPC-125 high-hardness 6061-T6 aluminum alloy worktable with T-slots
High-hardness worktable: Made of ultra-strong 6061-T6 aluminum alloy with patented T-slot design. Iteratively optimized for structural strength, custom-molded and professionally assembled.

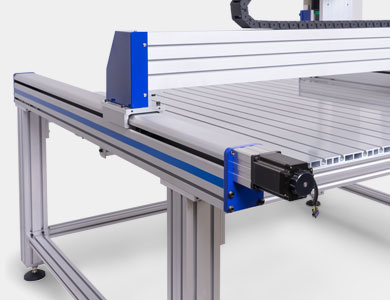

MPC-125 heavy-duty structural support brackets
Professional structural connection: Heavy-duty support brackets ensure machine stability.

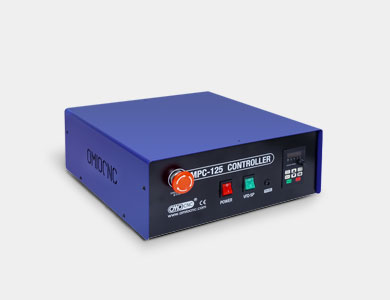

MPC-125 control system with four independent DSP drivers
High-performance dedicated controller; Four motors independently driven by four separate drivers.

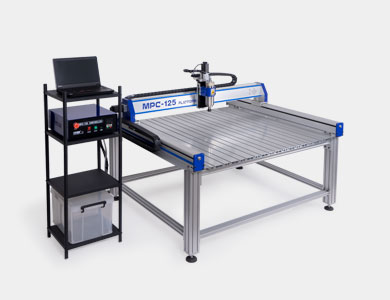

MPC-125 large-format CNC router installed in a workshop setting
Machine placement example in an industrial workshop.



Equipment Dimensions & Work Area

MPC-125 has a processing size of 1250mm × 1250mm, the position of the spindle motor can be adjusted up and down as required.

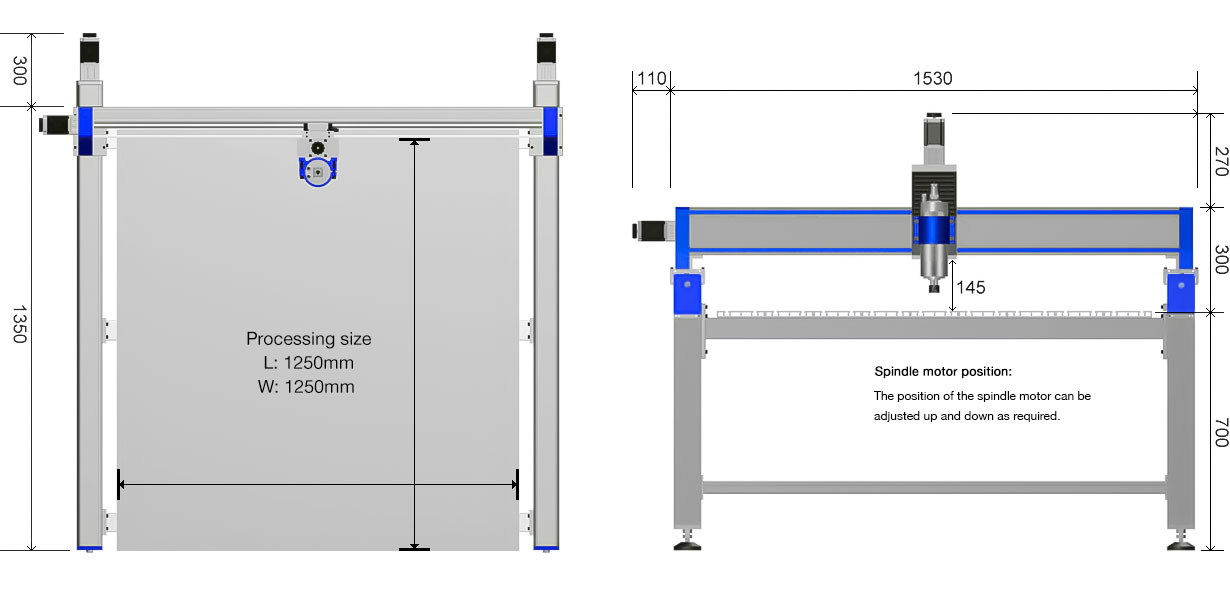

MPC-125 CNC Router dimensional drawing with overall size 1650x1640x1270mm and work area 1250x1250mm
Detailed dimensional diagram of the MPC-125 industrial CNC router.



Industrial Control System

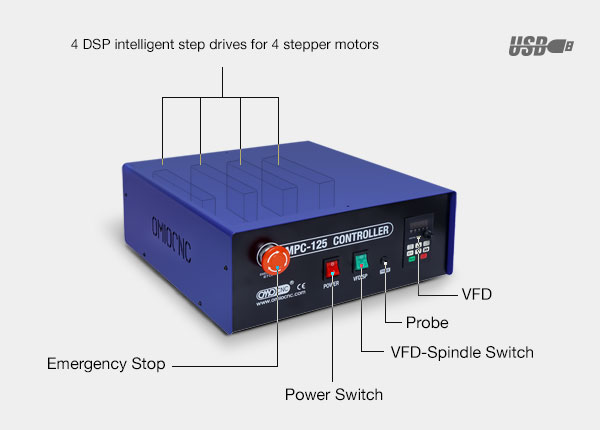

The machine comes standard with the High-performance dedicated Mach3 Controller. Four motors independently driven by four separate DSP drivers.

MPC-125 Mach3 software control interface on computer screen
Mach3 Software Control Interface

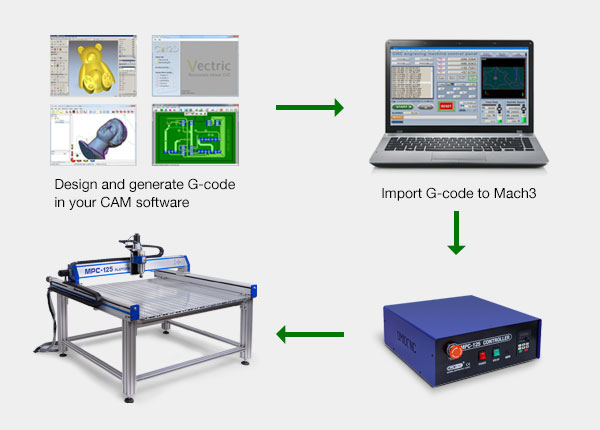

MPC-125 Mach3 controller system workflow diagram
Control System Workflow Diagram

Core Control Components

  • 4-Axis Motion Control Card: Features a 4-layer PCB for excellent anti-interference, 2000KHz pulse output for 4-axis linkage, fully isolated I/O ports for stability, and USB 2.0/3.0 compatibility.
  • DSP Intelligent Stepper Drivers: Designed on AC servo principles for high-speed, high-torque output with low noise, vibration, and heat. Includes comprehensive over/under voltage and overcurrent protection with opto-isolated signals.
  • Dedicated Spindle Inverter: Custom-designed for high-speed spindles using a 32-bit DSP and Intelligent Power Module (IPM), ensuring exceptional stability and reliability for long-term continuous use.



Technical Specifications

Specification MPC-125
Machine Dimensions (mm): LWH = 1650 × 1640 × 1270
Max. Working Travel (mm): XYZ = 1250 × 1250 × 80
Acceptable Material Thickness (mm): ≤ 145mm
Frame Material: 6063-T6 Extruded Aluminum Alloy
Rail Type: HG20 Linear Guide Rails
Screw Type: Ball Screw, Diameter 20mm, Pitch 10mm
Positioning Accuracy: 0.05mm
Spindle Motor: 2200W Powerful Brushless Frequency Water-cooled Spindle
Revolution Speed: 6000~24,000 RPM
Collet Type: ER20 (Includes one 6mm collet)
X/Y/Z Stepper Motor: Stepper Motor 57BYGH76-3.0A
X/Y/Z Stepper Drives: High Performance DSP Intelligent Digital Stepper Drives
Feed Rate: 300~8,000 mm/min
Control System: MPC Mach3-USB Controller
Computer Requirements: Laptop or Desktop PC with Windows 7/10/11
Windows on Mac not supported.
Acceptable Command Code: G-code (file type: .nc / .ncc / .tap / .txt)
Power: 100V~120V or 220V~240V (50/60Hz)
Environment: Temperature: 5°~40℃; Humidity: 35 to 80%
Machine Net Weight: 155 kg
Shipping Weight (Packed): 195 kg
Package Type: 1 Wooden Export Crate


Purchase MPC-125: Ordering & Global Shipping

Delivery Methods

Due to the weight and packaging size, the MPC-125 is shipped worldwide from China via sea or air freight.

1. C&F (Cost and Freight)

Buyer Responsibility: Import customs clearance and port pickup
  1. Buyer pays product cost and shipping fees; we arrange shipment to specified seaport
  2. Buyer arranges import agent/broker for customs clearance and port pickup
Important: Only choose this option if you have an import agent/freight forwarder to handle customs clearance.

2. DDP (Delivered Duty Paid)

Our Responsibility: Import customs clearance and delivery to your address
  1. Buyer pays product cost and shipping fees; our freight forwarder arranges shipment
  2. Our forwarder handles customs clearance, pays duties, and delivers to your address

We offer 'Air Freight Special Line' and 'Ocean Freight Special Line' services where all customs processing is handled by our freight forwarder.

Note: DDP service is available for selected countries only.

Payment Method

  1. Bank Transfer Only: For MPC-125 orders, we accept bank transfer payments exclusively
  2. Full Payment Required: Shipment is arranged only after receiving full payment

Ordering Process

  1. Contact Us with Requirements
    • Machine quantity, voltage, and options
    • Preferred delivery method (C&F or DDP)
    • Destination seaport (if choosing C&F)
    • Consignee's complete address, contact information
  2. Proforma Invoice: We'll send a detailed proforma invoice
  3. Payment: Complete payment via bank transfer
  4. Production & Shipping: We prepare your order and arrange shipping
Ready to place your order or have questions? Contact our experts for MPC-125 pricing and configuration
