X6EPL Pro Desktop CNC Router – OMIOCNC Flagship CNC Engraving Machine for Makers

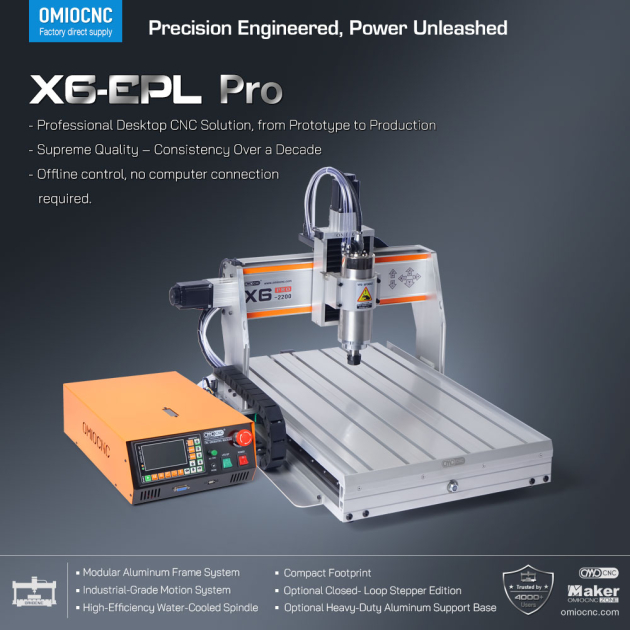

X6EPL Pro Desktop CNC Router: Flagship-Level Precision for Modern Manufacturing
The X6EPL Pro is the culmination of nearly 15 years of engineering excellence. As the successor to the globally trusted X6-2200EPL, this desktop CNC router redefines the standard for cost-performance in its class. It is the ultimate CNC engraving machine for makers, small studios, and enterprises who demand industrial-grade results from a compact, user-friendly platform.
Industrial-Grade Modular Aluminum Profile Structure
Featuring a topology-optimized design with aerospace-grade 6063-T6 aluminum profiles, the X6EPL Pro achieves a 20% reduction in mass while enhancing structural rigidity by 30%, providing a rock-solid foundation for precision machining.
Industrial-Grade Motion System
Equipped with HG20 square linear guides and precision ball screws, this desktop CNC delivers a repeat positioning accuracy of ±0.05mm, ensuring stable and consistent performance for even the most demanding projects.
Industrial-Grade High-Efficiency Water-Cooled Spindle
Powered by a robust 2.2kW variable-frequency spindle with 0–24,000 RPM stepless speed control. The integrated water-cooling system guarantees 8+ hours of sustained high-power operation without performance degradation.
Intuitive User-Friendly Control Interface
Designed for efficiency, the X6EPL Pro features a dedicated interface that streamlines the engraving workflow, allowing even beginners to seamlessly convert G-code into finished products.
What Can This Desktop CNC Machine Process?
Its compact footprint and user-friendly operation make it ideal for rapid prototyping and small-batch production. Start turning your ideas into real products immediately!
1mm Stainless Steel Cutting
Aluminum Alloy Parts
Aluminum Alloy Drilling
Aluminum Alloy Milling
Copper - Leather Imprinting Mold
Copper - Leather Imprinting Mold
Copper - Leather Imprinting Mold
Copper - Leather Imprinting Mold
Aluminum Alloy Parts
Aluminum Alloy Parts
Aluminum Alloy Parts
Aluminum Alloy Parts
Aluminum Alloy Model Making
Aluminum Alloy Parts
Making Robots
Machine Features of the X6EPL Pro CNC Router
All frame materials use 6063-T6 extruded aluminum profiles for higher density and strength. Each component is precisely manufactured to ensure consistency and accuracy. The machine utilizes high-precision ball screws and professional installation methods for optimal performance.
OMIO-EPL-4F Offline Control System
The machine comes standard with the standalone OMIO-EPL-4F Offline Controller (Orange Control Box) and a Handheld Handwheel Control handle .

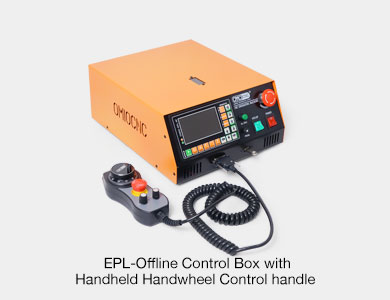

OMIO-EPL-4F Offline Controller + Handheld Handwheel Control handle
Why Choose an Offline Control System (EPL)?
Compared to traditional PC-dependent controllers (like Mach3), the OMIO-EPL-4F offline control system delivers fundamental improvements in reliability and performance:
Advantages of EPL Offline Control
- Standalone Operation: No dependency on external computers or networks, eliminating system crash and software conflict risks.
- Strong Anti-Interference: Embedded hardware with dedicated short-path signal transmission reduces bit error rates by over 80% in high EMI environments.
- Excellent Real-Time Performance: Dedicated DSP chips eliminate millisecond-level delays from PC OS scheduling.
- Higher Precision: Short-stroke positioning accuracy improves by 30% in high-speed machining scenarios.
Standard Specifications
- RM9 main control chip, FPGA core algorithm chip
- 4.3-inch display
- Supports G-code reading via USB, no file size limit
- 0-10V spindle analog control port
- Equipped with handwheel (MPG) interface
- Supports multiple coordinate systems
- Automatic power-off data save
Technical Specifications of the X6EPL Pro CNC Router
| Specification | X6EPL Pro |
|---|---|
| Machine Dimensions (mm): | LWH = 875 × 672 × 608 |
| Max. Working Travel (mm): | XYZ = 360 × 560 x 100 |
| Frame Material: | 6063-T6 Extruded Aluminum Alloy |
| Rail Type: | HG20 Linear Guide Rails (Y-axis guide rail with double flange block) |
| Screw Type: | Ball Screw (Diameter 16mm, Pitch 5mm) |
| Positioning Accuracy: | 0.05mm |
| Spindle Motor: | 2200W Powerful Brushless Frequency Water-Cooling Spindle |
| Revolution Speed: | 3000 ~ 24000 rpm/min |
| Collet Type: | ER20 (Supports up to 1/2 inch tool) |
| X/Y/Z Stepper Motor: | NEMA 23 / H76-3.0A / 1.8N.m (Two Phase, Step Angle 1.8°) |
| X/Y/Z Stepper Drives: | High Performance Digital Stepper Drives |
| Feed Rate: | 50 ~ 4000 mm/min |
| Control System: | Stand-alone control system (EPL-4F Offline Control Box) With Handheld Handwheel Control handle |
| Computer Requirements: | Laptop or Desktop PC with Windows 7/10/11 Windows on Mac not supported. |
| Acceptable Command Code: | G-code (File types: .nc / .ncc / .tap / .txt) |
| Power: | 100V~120V or 220V~240V (50/60Hz) |
| Environment: | Temp: 5°~40°C; Humidity: 35 to 80% |
| Weight: | 67 kg |
| Package Dimension (cm): | Standard (without spoilboards): 2 boxes
|
Equipment Dimensions for the X6EPL Pro
Supports segmented machining of long materials. The spindle fixed position can be adjusted up or down.
X6EPL Pro Closed-Loop Stepper Edition
The X6EPL Pro Closed-Loop Stepper Edition is equipped with closed-loop stepper motors and matched drives on all three axes (X, Y, Z) as standard.
Integrated Closed-Loop Stepper Motors on All Axes
Each axis uses an encoder-equipped stepper motor paired with a closed-loop drive. The encoder continuously monitors the actual rotor position. If a commanded movement deviates slightly due to changes in cutting load or acceleration/deceleration, the drive attempts to compensate automatically, helping each step stay closer to its intended position.
In practice, this contributes to a more confident machining experience:
- When working with different materials (aluminum, copper, stainless steel, wood, plastics, etc.) and varying cutting conditions, the closed-loop system helps reduce unexpected deviations, giving you better control over the process.
- Low-speed engraving of fine details or curved surfaces benefits from improved smoothness, which can lead to better surface finishes.
- Every axis carries position feedback, making the machining process more transparent and giving you greater insight into how the machine is performing.
Overall, the Closed-Loop Stepper Edition adds an extra layer of assurance to your work — the machine stays aware of its own movements, so you can focus more on creating and less on worrying about whether everything is going according to plan.
X6EPL Pro v.s. X6 Pro
| Comparison Item | X6EPL Pro | X6 Pro |
|---|---|---|
| Mechanical structure & size: | Same | |
| Spindle motor and Stepper motors: | Same | |
| Electronic drive system: | Same | |
| Control system: | Independent offline controller | USB Motion control card |
| PC connection required: | No | Yes |
| Anti-interference capability: | Strong | Depends on the stability of the pulse signal output from the user's PC. |
