XC-21D Compact Industrial CNC Router – Desktop Engraving Machine for Maker Education & Home Workshop
The XC-21D Compact Industrial CNC Router is a maker-education and home-workshop solution with a 0.2㎡ footprint. Its 6061-T5 aerospace aluminum frame, ball screws, and ER11 collet system achieve 0.05mm repeat accuracy. Modular design allows 10-minute disassembly. Supports 12 applications including wood carving, PCB milling, and acrylic signage. Ideal for K-12 to higher education STEM programs.
X8-2200L CNC Router | Carving Milling Engraving Machine
Previous

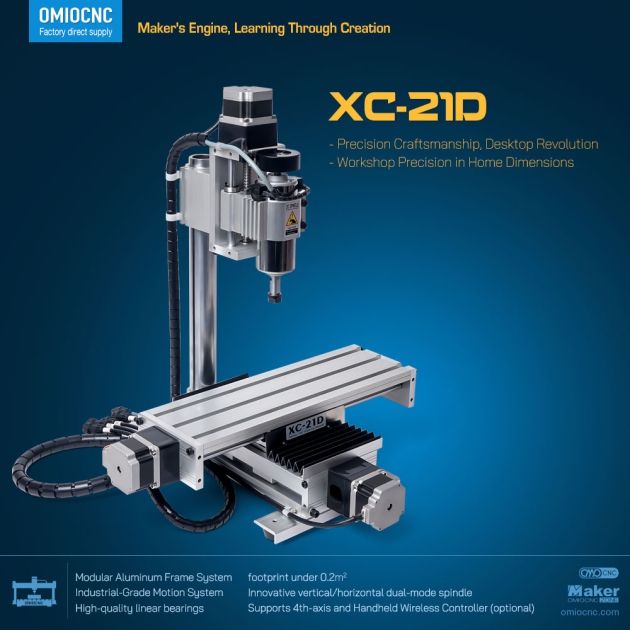

XC-21D Compact Industrial CNC Router: Maker's Engine, Learning Through Creation
The XC-21D is a compact industrial CNC router designed for maker education and home workshops. With a space-saving 0.2㎡ footprint, its aerospace-grade 6061 aluminum frame and precision ball screws achieve 0.05mm repeat positioning accuracy. Featuring quick-release X/Y-axis sliding mechanisms and bidirectional Z-axis/spindle adjustment, complete disassembly takes just 10 minutes. The ER11 collet system supports 3-10mm tools, while Mach3 control enables direct G-code execution — an affordable STEM solution for 12 applications including wood carving and PCB milling. (OMIOCNC Factory-direct quality assurance)
Latest Version Release
- Space Revolution — 0.2㎡ footprint breaks traditional limits, 40% space-saving vs competitors.
- Industrial-Grade Precision — 6061-T5 aluminum + ball screws achieve 0.05mm accuracy, surpassing 0.1mm entry-level standards.
- Rapid Reconfiguration — Modular design enables 10-minute assembly/disassembly.
- Acceptable Material Thickness — Up to 190mm.
- Multi-Scenario — From children's science projects to PCB fabrication, covering K-12 to higher education.
Turn Your Ideas Into Real Products with This Desktop CNC Machine
It's easy to use, takes up very little space, and is fast, secure, and reliable. Start making your product today.
Sign Processing
Toy Manufacturing
Craft Wooden Box
Coaster Cutting
Wooden Sign
Wooden Creative Clock
Food Mold
Wooden Pen Holder
Acrylic Sign
Acrylic Sign Production
Acrylic Sign Production

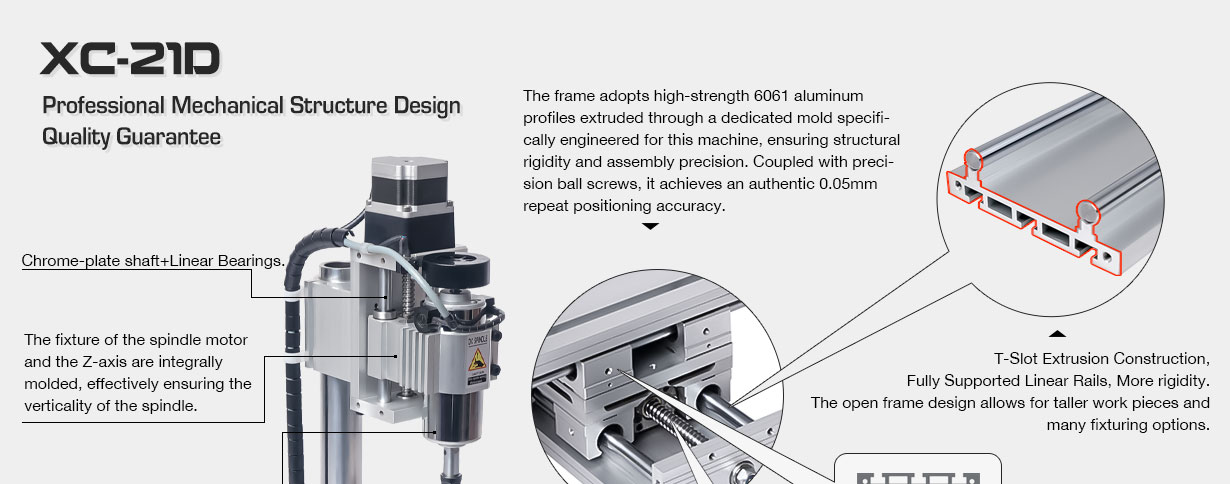

Machine Features of the XC-21D Compact CNC Router

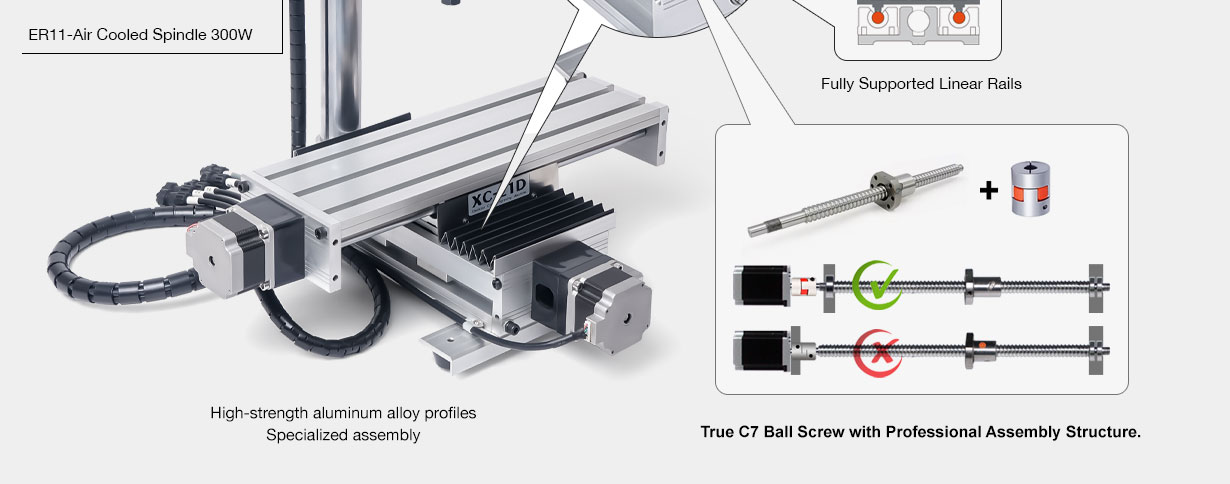

All frame materials use 6061-T5 extruded aluminum profiles for higher density and strength. Professional screw installation and clasp-style couplings ensure long-term stability.
Control System for Your CNC Engraving Machine

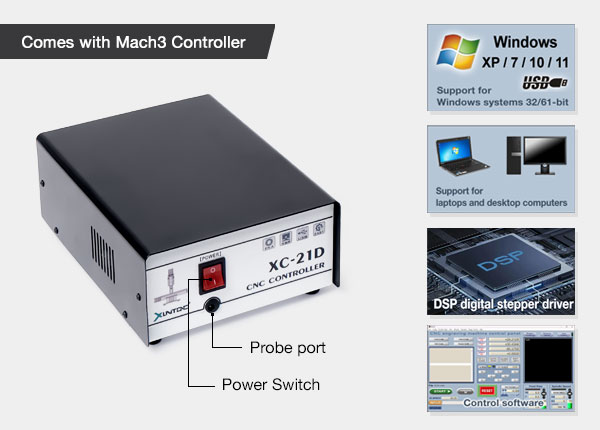

The device comes standard with the Mach3 Controller, which requires connection to a computer and is controlled via Mach3 software.
Mach3 Controller Setup

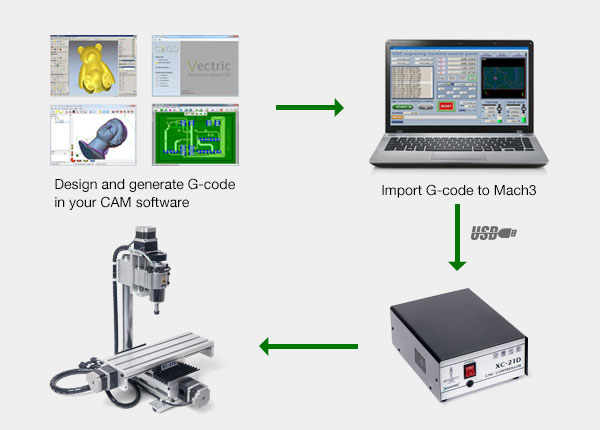

Mach3 Workflow
Technical Specifications of the XC-21D Desktop CNC Machine
| Specification | XC-21D |
|---|---|
| Machine Dimensions (mm): | LWH = 510 × 420 × 590 |
| Max. Working Travel (mm): | XYZ = 230 × 120 × 60 |
| Acceptable Material Thickness (mm): | ≤ 190 |
| Frame Material: | 6061-T5 Extruded Aluminum Alloy |
| Rail Type: | Chromeplate Shaft + Supported Round Rails |
| Screw Type: | Ball Screw (1204), Pitch 4mm |
| Positioning Accuracy: | 0.05mm |
| Spindle Motor: | Air-Cooled 300W DC Spindle |
| Revolution Speed: | 3000~11000 rpm/min |
| Collet Type: | ER11 - 3.175mm |
| X/Y/Z Stepper Motor: | NEMA23 - Two-Phase / 1.8°, 1.45A |
| X/Y/Z Stepper Drives: | High-Performance Integrated Stepper Driver |
| Feed Rate: | 100~3000 mm/min |
| Control System: | Mach3 Controller (USB Connection) |
| Computer Requirements: | Laptop or Desktop PC with Windows 7/10/11 Windows on Mac not supported. |
| Acceptable Command Code: | G-code (file types: .nc / .ncc / .tap / .txt) |
| Power: | 100V~120V or 220V~240V (50/60Hz) |
| Environment: | Temp: 5°~40°C; Humidity: 35 to 80% |
| Weight (kg): | 21 kg |
| Package (cm): | 1 box: 52 × 42 × 30cm |

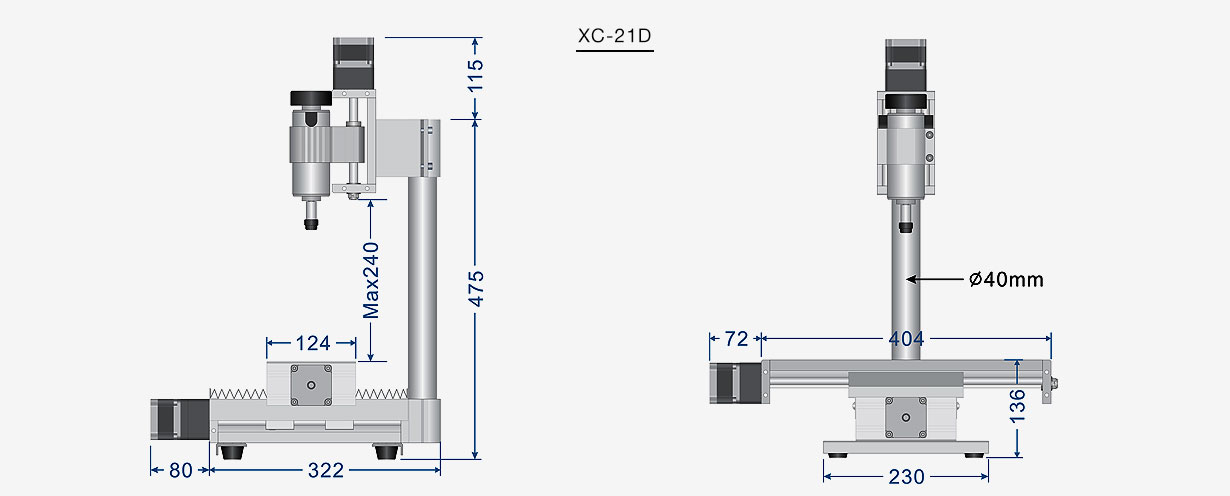

Equipment Dimensions for the XC-21D

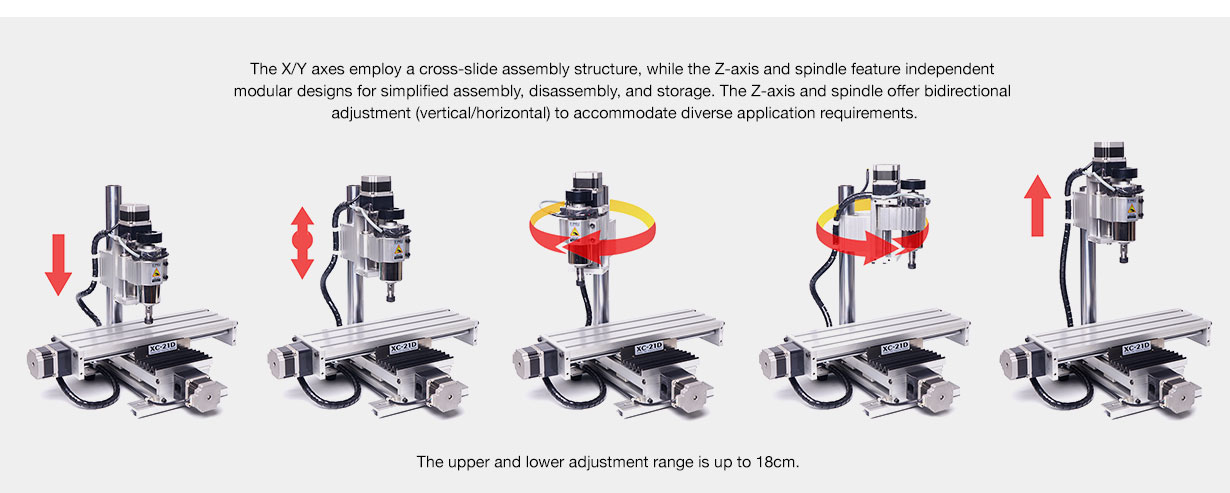

Support for long materials machining segmented. The spindle fixed position can be adjusted up or down.
