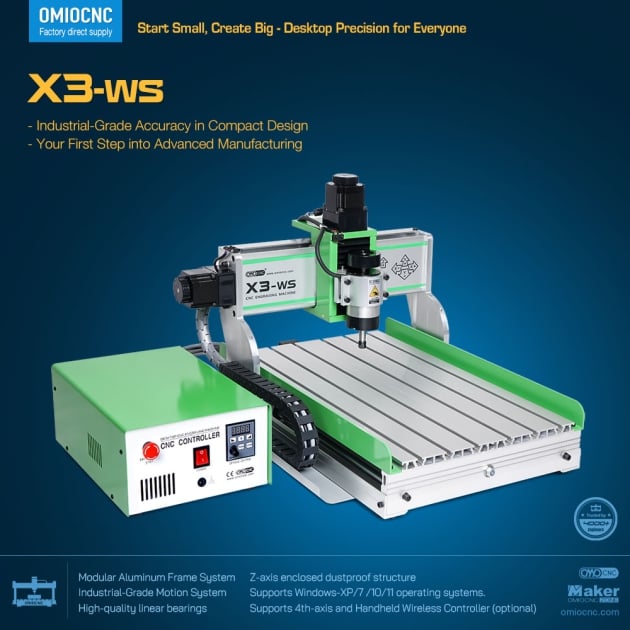

Compact Powerhouse — Professional Results at Home
The X3-WS is a professional compact CNC engraving machine designed for makers, educators, and small businesses. Featuring a 6061-T5 aerospace aluminum frame with 0.05mm ultra-high positioning accuracy, paired with a 3000–11000 RPM brushless spindle for industrial-grade machining standards.
Supports ER8 collet compatible with 3–10mm cutting tools. XYZ axis travel reaches 285×380×70mm, enabling efficient processing of 12 materials including wood, PCB, and acrylic.
Equipped with the Mach3 intelligent control system supporting 12 file formats including G-code via USB connection, paired with NEMA23 independent drive motors achieving a 3000 mm/min feed rate.
Total weight 29 kg with 100V–240V wide voltage input and 30-minute rapid tool change design. Meets educational training, signage production, and rapid prototyping needs through desktop-grade industrial performance.
Turn Your Ideas Into Real Products with This Desktop CNC Machine
It's easy to use, takes up very little space, and is fast, secure, and reliable. Start making your product today.
Engineering Plastics Nameplate
Engineering Plastic Parts
Wooden Fruit Tray
PCB Circuit Board
Cabinet Handles
Carbon Fiber Parts
Aluminum Alloy Housing
Pet Nameplate
Food Mold
Metal Nameplate
Art Model
Machine Features of the X3-WS Compact CNC Router

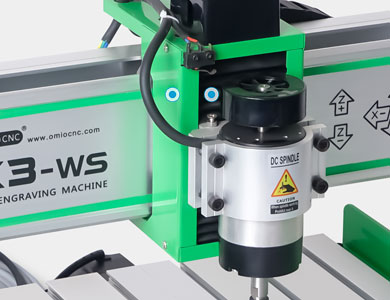

Z-axis sealed dustproof structure effectively protects the Z-axis precision components.

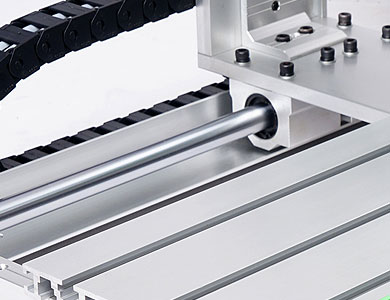

Precision Linear Motion System

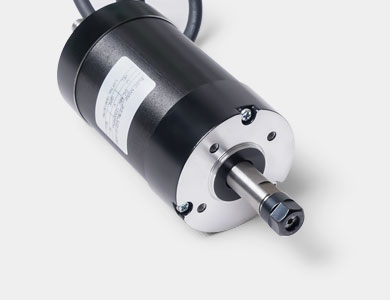

300W Brushless Spindle
Aerospace-Grade Frame

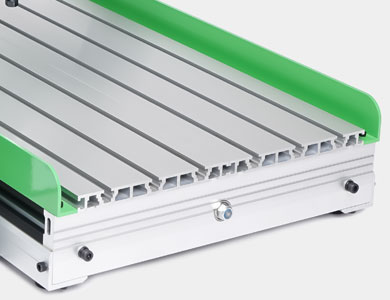

Home Switches & Fixture Mounting

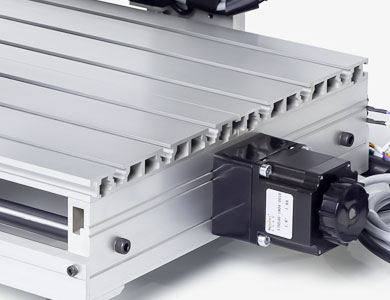

Durable Construction

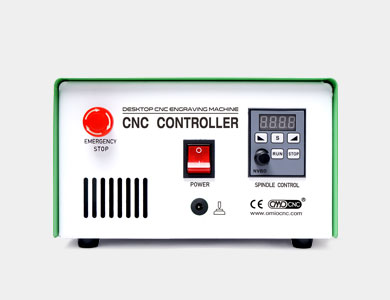

Mach3 Control System
Control System for Your CNC Engraving Machine
The device comes standard with the Mach3 Controller, which requires connection to a computer and is controlled via Mach3 software.
Mach3 Controller Setup
Mach3 Workflow
Technical Specifications of the X3-WS Desktop CNC Machine
| Specification | X3-WS |
|---|---|
| Machine Dimensions (mm): | LWH = 615 × 495 × 425 |
| Max. Working Travel (mm): | XYZ = 285 × 380 × 70 |
| Acceptable Material Thickness (mm): | ≤ 80 |
| Frame Material: | 6061-T5 Extruded Aluminum Alloy |
| Rail Type: | Chromeplate Shaft + Linear Bearings |
| Screw Type: | Ball Screw (1204) |
| Positioning Accuracy: | 0.05mm |
| Spindle Motor: | Air-Cooled, Brushless DC Spindle 300W |
| Revolution Speed: | 3000~11000 RPM/Min |
| Collet Type: | ER8 |
| X/Y/Z Stepper Motor: | NEMA23 - Two-Phase / 1.8°, 2A / 1 N.m |
| X/Y/Z Stepper Drives: | High-Performance Integrated Stepper Drive |
| Feed Rate: | 100~3000 mm/min |
| Control System: | Mach3 Controller (USB Connection) |
| Computer Requirements: | Laptop or Desktop PC with Windows 7/10/11 Windows on Mac not supported. |
| Acceptable Command Code: | G-code (file types: .nc / .ncc / .tap / .txt) |
| Power: | 100V~120V or 220V~240V (50/60Hz) |
| Environment: | Temp: 5°~40°C; Humidity: 35 to 80% |
| Weight: | 31 kg |
| Package: | 1 box (LWH = 62 × 51 × 44 cm) |

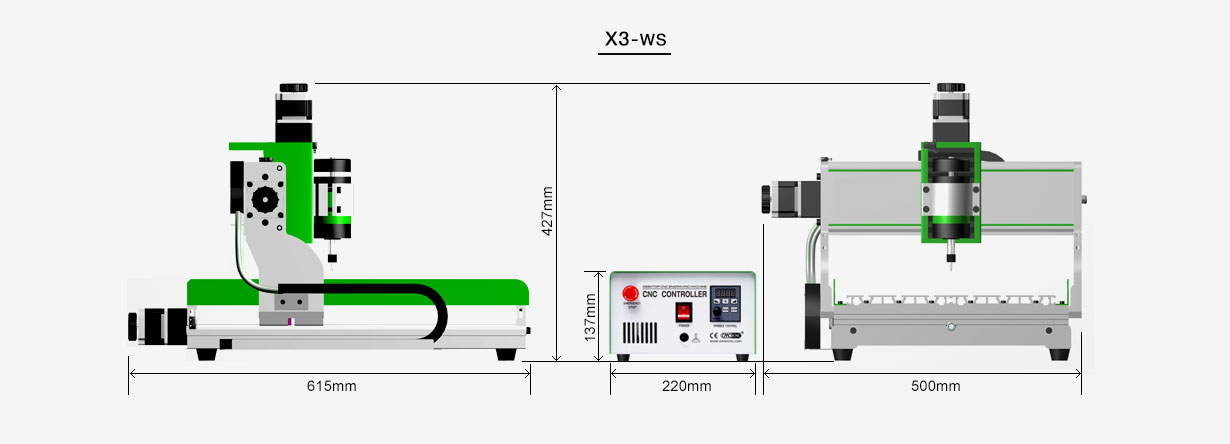

Equipment Dimensions for the X3-WS
Support for long materials machining segmented. The spindle fixed position can be adjusted up or down.
