X-Pro Mach3 Control Overview
- Control Method: PC-based via Mach3 software (Windows)
- Connection Interface: USB 2.0/3.0 to computer
- Control Type: Motion control with interpolation
X8-2200L Professional CNC Router | Industry-Leading Aluminum Machining for Robotics & Education
Save
As low as
$2,799.00
In stock
Only %1 left
SKU
X8-2200L

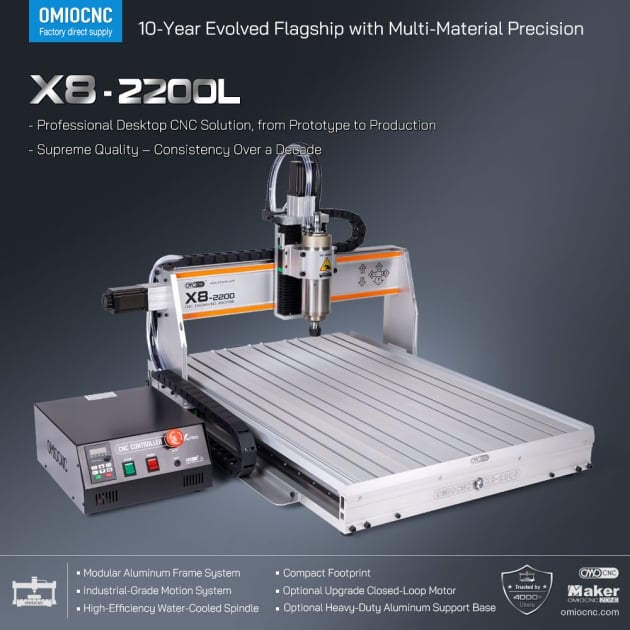

X8-2200L Commercial CNC Router: A Decade-Refined Flagship for Precision Multi-Material Machining
The X8-2200L represents the culmination of 10 years and 5 generations of development in our flagship CNC router series. Engineered for unparalleled value, it combines robust machining power, industrial-grade reliability, and exceptional precision, making it the ideal choice for workshops, R&D labs, STEAM education, and small-batch manufacturing.
Why Choose the X8-2200L?
- Proven Track Record: Trusted by hundreds of FRC teams and businesses worldwide for over a decade.
- Superior Cost-Performance: Delivers capabilities found in more expensive machines, offering a faster return on investment.
- Industrial-Grade Construction: Built with custom 6063-T6 aluminum extrusions and professional assembly for lasting rigidity and accuracy.
- Versatile Application Ready: Perfect for prototyping, education, custom fabrication, and production runs in various materials.
Materials & Applications
The X8-2200L excels in machining a wide range of materials, offering particularly low operating costs for aluminum and efficient handling of plastics and composites.
Metals
- Aluminum Alloys: (Ideal) Cutting, milling, engraving.
- Copper, Brass: Engraving, mold making.
- Soft Metals: Thin sheet cutting and etching.
Plastics & Composites
- Plastics: Acrylic, PVC, Nylon, ABS, POM, PTFE.
- Composites: PCB boards, carbon fiber panels, fiberglass.
- Signage Materials: Foam, PVC, acrylic.
Wood & Creative
- Wood: Hardwood, MDF, plywood for detailed carving.
- Modeling: Precision parts for prototypes and models.
- Arts & Crafts: Detailed inlays, decorative elements.
Aluminum Plate Cutting
Aluminum Parts Milling & Drilling
1mm Stainless Steel Cutting
Copper - Leather Embossing Mold
Copper Mold Engraving
Copper Mold Batch Cutting/Engraving
Carbon Fiber Cutting – Drone Manufacturing
Wooden Chessboard Engraving
Batch Aluminum Processing – Robotics Production
Batch Aluminum Processing – Robotics Production
Wood Cutting – Guitar Making
Hardwood Engraving – Art Decor Production
X8-2200L Case – Plastic Gears
X8-2200L Case – Composite Architectural Decor
X8-2200L Case – Aluminum Parts Processing
Machine Features
The X8-2200L utilizes 6063-T6 extruded aluminum alloy profiles for all frame components, offering higher density and enhanced structural strength. Each material unit maintains strict dimensional consistency, minimizing machining errors during production. The Y-axis employs a grade-2005 ball screw with 30% increased load capacity and superior rigidity, optimized for high-speed machining scenarios. Additional innovations include professional screw mounting fixtures and clamp-style couplings, ensuring stability during prolonged high-speed operation. With 7 exclusive patented technologies, its comprehensive machining performance surpasses competitors in the same price range.

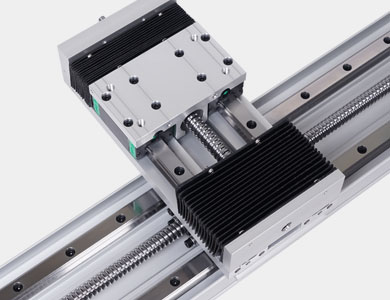

The X-axis and Z-axis both feature professional H20 square linear guides and high-precision 1605 ball screws, ensuring smoother movement and higher accuracy. Each axis uses dedicated high-strength aluminum extrusion modules.

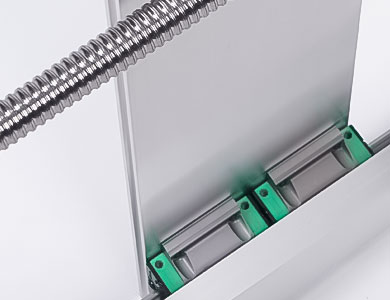

The Y-axis is equipped with dual H20 professional square linear guides and double sliders on both sides, paired with a high-precision 2005 ball screw.

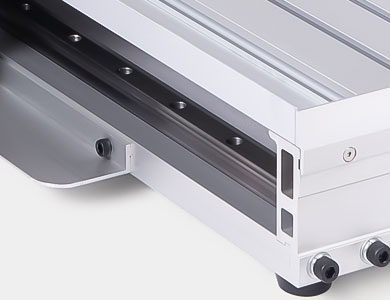

High-strength aluminum alloy profiles
Specialized assembly

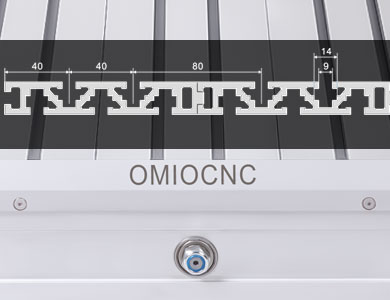

The high-hardness butting worktable is made of extra-strong 6063-T6 aluminum alloy, featuring a patented T-slot design. After multiple iterations and improvements, it offers superior structural strength, custom-molded manufacturing, and professional assembly.

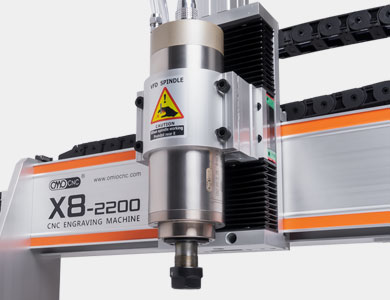

Industrial-grade 2.2KW ER20 water-cooled spindle—high power, high torque, capable of continuous operation for up to 12 hours.

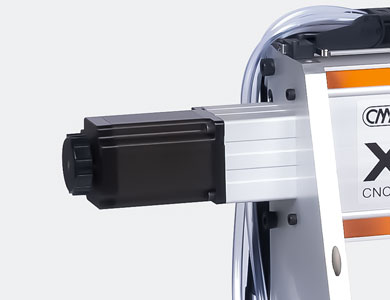

The high-torque stepper motor (3.2N.m) achieves a 28% improvement in load-driving capability and approximately 22% faster acceleration at the same speed, significantly enhancing start-stop performance.
X-Pro Mach3 PC-Based Control System
This machine is equipped with the standard X-Pro Mach3 Controller. It operates via USB connection to a Windows computer running Mach3 software, offering a flexible and familiar interface for users.
X-Pro Mach3 Controller (USB Connection)
Key Component Specifications
high performance Motion Control Card
- PCB Design: 4-layer board with enhanced anti-interference capability
- Pulse Output: 2000KHz high-speed
- I/O Protection: All ports fully isolated for maximum stability
- Compatibility: USB interface compatible with USB 2.0/3.0 standards
DSP Intelligent Stepper Drivers
- Design Principle: Based on AC servo technology for superior performance
- Output Characteristics: High-speed and high-torque output capability
- Operational Features: Low noise, low vibration, and minimal heat generation
- Protection Systems: Comprehensive safeguards including over/under voltage, phase current, and bus overcurrent protection
- Signal Isolation: All input/output control signals feature optical isolation
Dedicated Spindle Inverter
- Custom Design: Specifically engineered for high-speed spindle motors
- Core Technology: 32-bit DSP processor with Intelligent Power Module (IPM)
- Reliability: Exceptional stability for long-duration continuous operation
- Application: Ideal for industrial and educational environments requiring sustained use
Specifications
| Specification | X8-2200L |
|---|---|
| Machine Dimensions (mm): | LWH = 1150 × 420 × 590 |
| Max. Working Travel (mm): | XYZ = 565 × 770 × 80 |
| Acceptable Material Thickness (mm): | ≤ 140mm |
| Frame Material: | 6063-T6 Extruded Aluminum Alloy |
| Rail Type: | HG20 Linear Guide Rails (Y-axis guide rail with double flange block) |
| Screw Type: | X-axis & Z-axis: 1605 Ball Screw (diameter 16mm, screw thread pitch 5mm) Y-axis: 2005 Ball Screw (diameter 20mm, screw thread pitch 5mm) |
| Positioning Accuracy: | 0.05mm |
| Spindle Motor: | 2200W Powerful Brushless Frequency Water-cooled Spindle |
| Revolution Speed: | 6000~24,000 rpm/min |
| Collet Type: | ER20 (Includes one 6mm collet free of charge) |
| X/Y/Z Stepper Motor: | NEMA 23 - 82HBS8-3.2A |
| X/Y/Z Stepper Drives: | High Performance DSP Intelligent Digital Stepper Drives |
| Feed Rate: | 100~4,000 mm/min |
| Control System: | X-Pro Mach3 Controller (USB connection) |
| Computer Requirements: | Laptop or Desktop PC with Windows 7/10/11 Windows on Mac not supported. |
| Acceptable Command Code: | G-code (file type: .nc / .ncc / .tap / .txt) |
| Power: | 100V~120V or 220V~240V (50/60Hz) |
| Environment: | Temperature: 5°~40℃; Humidity: 35 to 80% |
| Machine Net Weight: | 83 kg |
| Machine Volume Weight with Package: | 88 kg |
| Package (cm): | 2 boxes (Box 1: 64 × 45 × 55, Box 2: 86 × 63 × 22) |

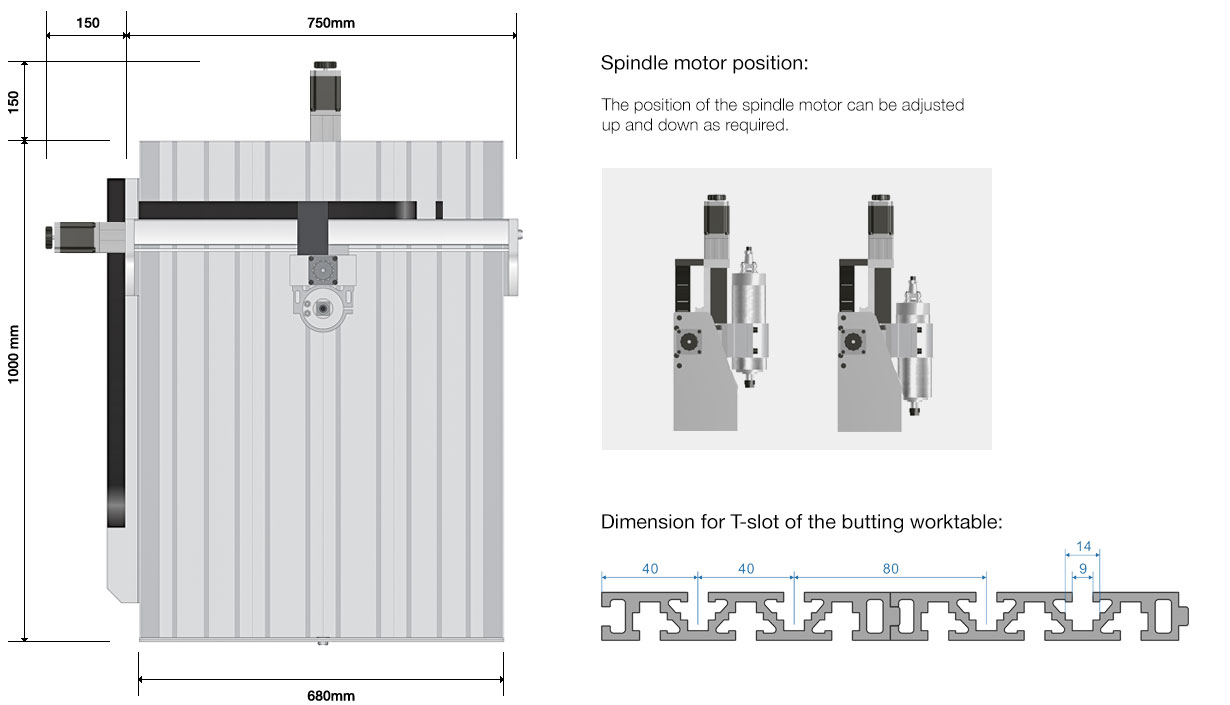

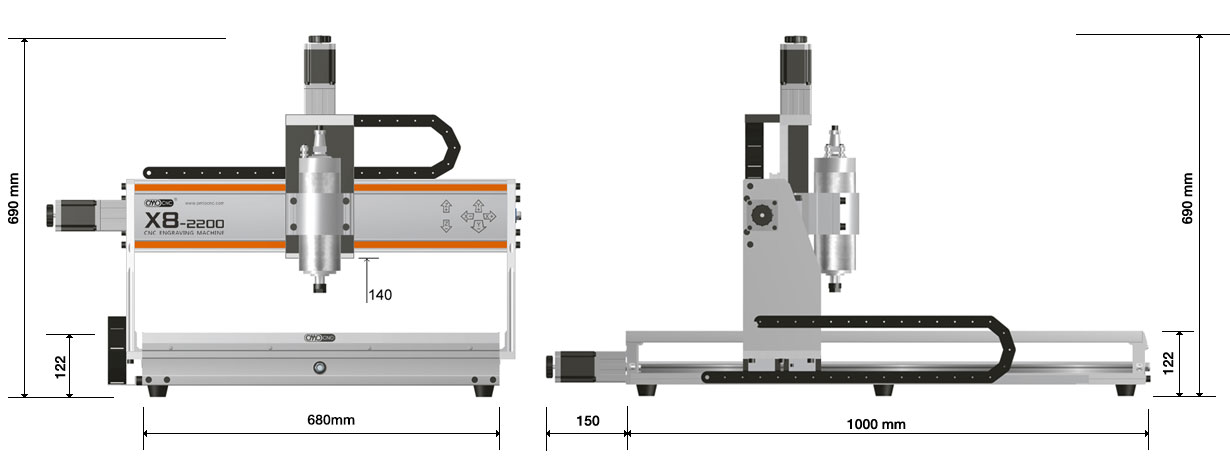

Equipment Dimensions
Support for long materials machining segmented.The spindle fixed position can be adjusted up or down.
X8-2200EPL v.s. X8-2200L
| Comparison Item | X8-2200EPL | X8-2200L |
|---|---|---|
| Mechanical structure & size: | Same | |
| Spindle motor and Stepper motors: | Same | |
| Electronic drive system: | Same | |
| Control system: | Independent offline controller | USB Motion control card |
| PC connection required: | No | Yes |
| Anti-interference capability: | Strong | Depends on the stability of the pulse signal output from the user's PC. |
