Compact Powerhouse — Professional Results at Home

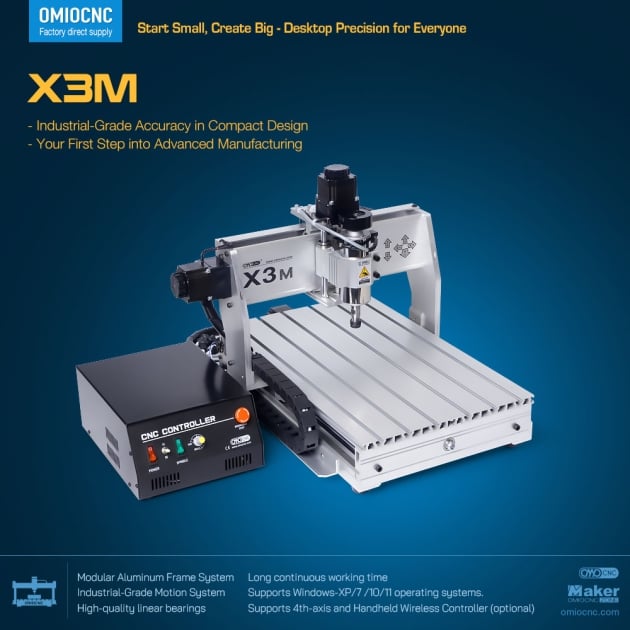

The X3M is a desktop CNC engraving machine from OMIOCNC with 10-year iterative upgrades, designed for makers, educators, and small workshops.
Its precision 3-axis system supports full-dimensional processing of wood (hardwood/plywood/MDF), engineering plastics (ABS/PVC/POM), resin, and non-ferrous metals (aluminum alloy/brass).
With an intelligent motion control algorithm, it achieves ±0.05mm repeat positioning accuracy, improving prototyping efficiency by 300%, making it an ideal STEM education platform.
Turn Your Ideas Into Real Products with This Desktop CNC Machine
It's easy to use, takes up very little space, and is fast, secure, and reliable. Start making your product today.
Hardwood Relief Carving
Bakelite Drilling
Engineering Plastic Milling
PCB Circuit Board
Cabinet Handles
Carbon Fiber Parts
Aluminum Alloy Housing
Pet Nameplate
Aluminum Alloy Parts
PVC Wall Clock
Wooden Doorplate
Furniture Decoration
Food Mold
Metal Nameplate
Art Model
Machine Features of the X3M Desktop CNC Router
All frame materials using 6061-T5 extruded aluminum profiles, higher density, higher strength. Professional installation and fixation methods of the screw, and clasped type couplings.

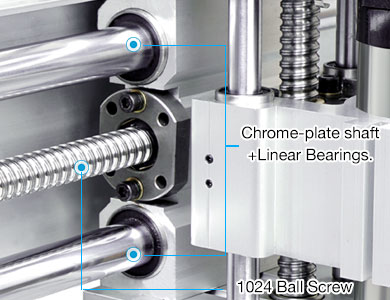

Precision Linear Motion System

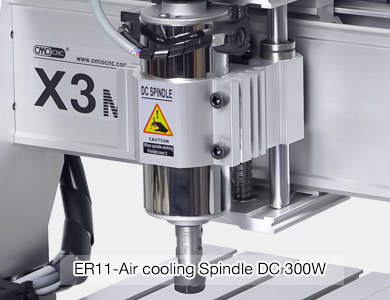

300W Air-Cooled Spindle

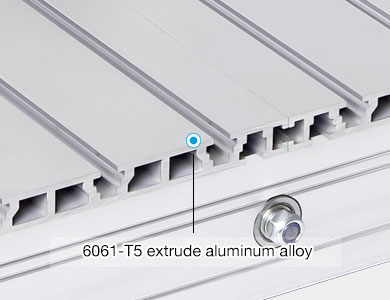

Aerospace-Grade Frame

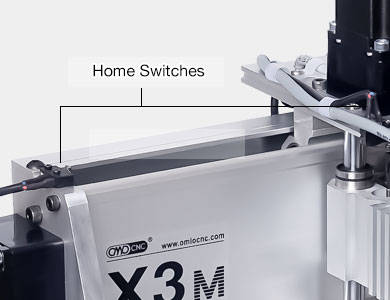

Home Switches & T-Slot Table

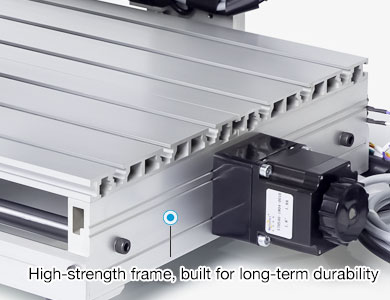

Durable Construction

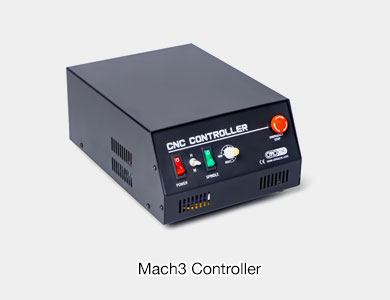

Mach3 Control System
Control System for Your CNC Engraving Machine
The device comes standard with the Mach3 Controller, which requires connection to a computer and is controlled via Mach3 software.

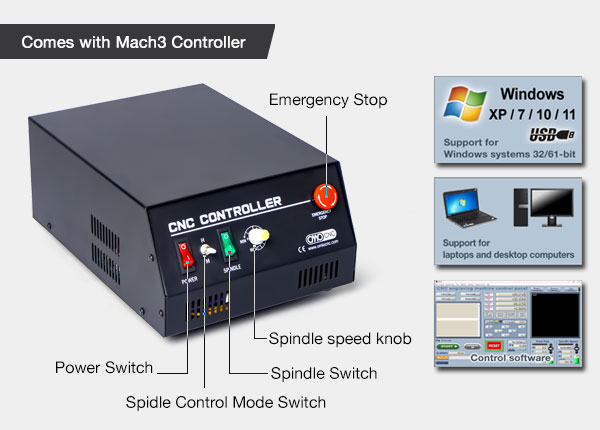

Mach3 Controller Setup

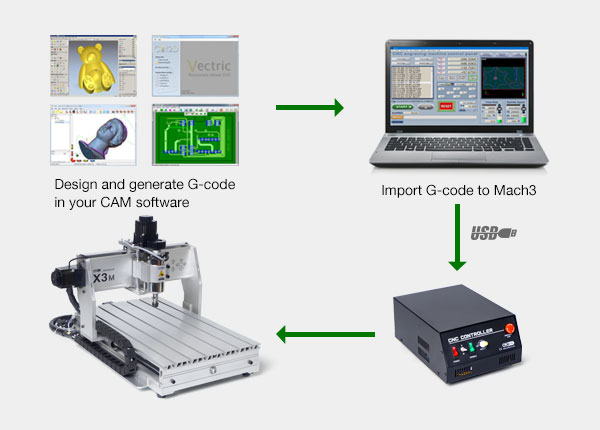

Mach3 Workflow
Technical Specifications of the X3M Desktop CNC Machine
| Specification | X3M |
|---|---|
| Machine Dimensions (mm): | LWH = 615 × 495 × 425 |
| Max. Working Travel (mm): | XYZ = 285 × 380 × 70 |
| Frame Material: | 6061-T5 Extruded Aluminum Alloy |
| Rail Type: | Chromeplate Shaft + Linear Bearings |
| Screw Type: | Ball Screw (1204) |
| Positioning Accuracy: | 0.05mm |
| Spindle Motor: | DC Spindle 300W, Air-Cooled |
| Revolution Speed: | 3000~11000 RPM/Min |
| Collet Type: | ER11 |
| X/Y/Z Stepper Motor: | NEMA23 - Two-Phase / 1.8°, 2A / 1 N.m |
| X/Y/Z Stepper Drives: | High-Performance Integrated Stepper Drive |
| Feed Rate: | 100~3000 mm/min |
| Control System: | Mach3 Controller (USB Connection) |
| Computer Requirements: | Laptop or Desktop PC with Windows 7/10/11 Windows on Mac not supported. |
| Acceptable Command Code: | G-code (file types: .nc / .ncc / .tap / .txt) |
| Power: | 100V~120V or 220V~240V (50/60Hz) |
| Environment: | Temp: 5°~40°C; Humidity: 35 to 80% |
| Weight: | 30 kg |
| Package: | 1 box (LWH = 60 × 50 × 40 cm) |

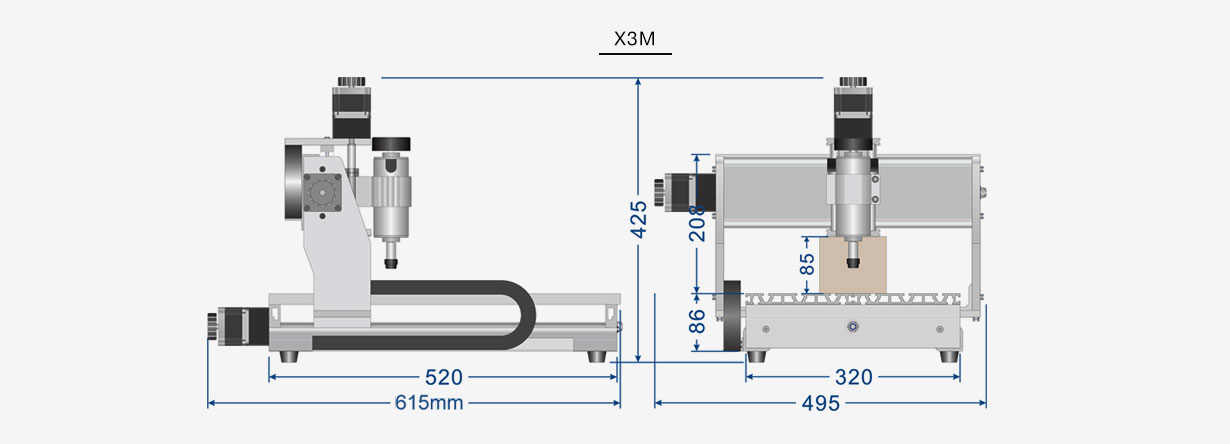

Equipment Dimensions for the X3M
Support for long materials machining segmented. The spindle fixed position can be adjusted up or down.
