X-Pro Mach3 Control Overview
- Control Method: PC-based via Mach3 software (Windows)
- Connection Interface: USB 2.0/3.0 to computer
- Control Type: Motion control with interpolation

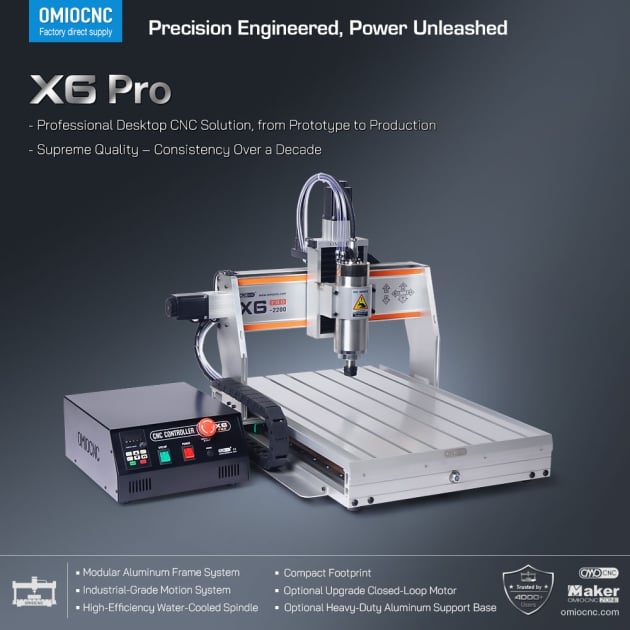

X6 Pro Desktop CNC Router – OMIOCNC Flagship CNC Engraving Machine for Makers
Save
As low as
$2,399.00
In stock
Only %1 left
SKU
X6pro
X6 Pro Desktop CNC Router: Flagship-Level Precision for Modern Manufacturing
The X6 Pro is the culmination of nearly 15 years of engineering excellence. As the successor to the globally trusted X6-2200L, this desktop CNC router redefines the standard for cost-performance in its class. It is the ultimate CNC engraving machine for makers, small studios, and enterprises who demand industrial-grade results from a compact, user-friendly platform.
Industrial-Grade Modular Aluminum Profile Structure
Featuring a topology-optimized design with aerospace-grade 6063-T6 aluminum profiles, the X6 Pro achieves a 20% reduction in mass while enhancing structural rigidity by 30%, providing a rock-solid foundation for precision machining.
Industrial-Grade Motion System

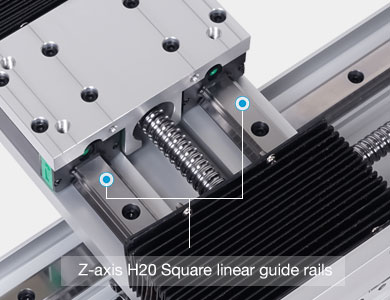

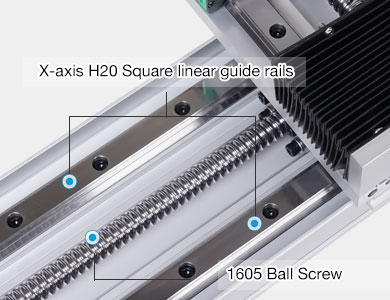

Equipped with HG20 square linear guides and precision ball screws, this desktop CNC delivers a repeat positioning accuracy of ±0.05mm, ensuring stable and consistent performance for even the most demanding projects.

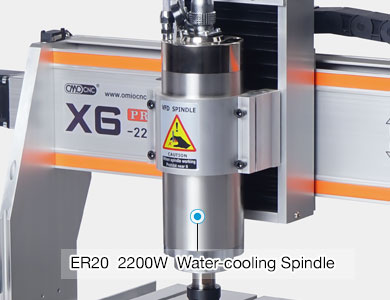

Industrial-Grade High-Efficiency Water-Cooled Spindle
Powered by a robust 2.2kW variable-frequency spindle with 0–24,000 RPM stepless speed control. The integrated water-cooling system guarantees 8+ hours of sustained high-power operation without performance degradation.
Intuitive User-Friendly Control Interface
Designed for efficiency, the X6 Pro features a dedicated interface that streamlines the engraving workflow, allowing even beginners to seamlessly convert G-code into finished products.
What Can This Desktop CNC Machine Process?
Its compact footprint and user-friendly operation make it ideal for rapid prototyping and small-batch production. Start turning your ideas into real products immediately!
1mm Stainless Steel Cutting
Aluminum Alloy Parts
Aluminum Alloy Drilling
Aluminum Alloy Milling
Copper - Leather Imprinting Mold
Copper - Leather Imprinting Mold
Copper - Leather Imprinting Mold
Copper - Leather Imprinting Mold
Aluminum Alloy Parts
Aluminum Alloy Parts
Aluminum Alloy Parts
Aluminum Alloy Parts
Aluminum Alloy Model Making
Aluminum Alloy Parts
Making Robots
Machine Features of the X6 Pro CNC Router

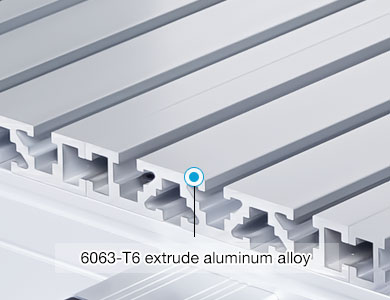

All frame materials use 6063-T6 extruded aluminum profiles for higher density and strength. Each component is precisely manufactured to ensure consistency and accuracy. The machine utilizes high-precision ball screws and professional installation methods for optimal performance.

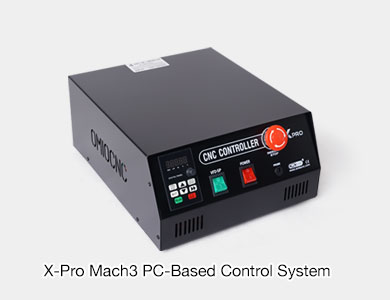

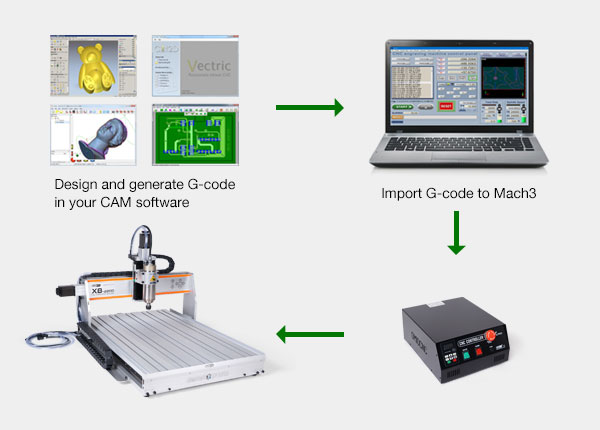

X-Pro Mach3 PC-Based Control System
This machine is equipped with the standard X-Pro Mach3 Controller. It operates via USB connection to a Windows computer running Mach3 software, offering a flexible and familiar interface for users.

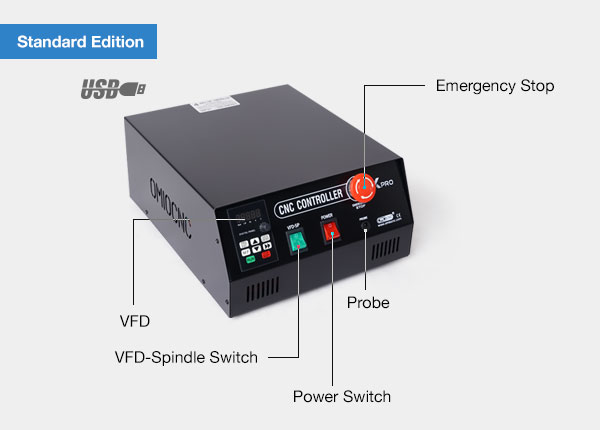

X-Pro Mach3 Controller (USB Connection)
Key Component Specifications
high performance Motion Control Card
- PCB Design: 4-layer board with enhanced anti-interference capability
- Pulse Output: 2000KHz high-speed
- I/O Protection: All ports fully isolated for maximum stability
- Compatibility: USB interface compatible with USB 2.0/3.0 standards
DSP Intelligent Stepper Drivers
- Design Principle: Based on AC servo technology for superior performance
- Output Characteristics: High-speed and high-torque output capability
- Operational Features: Low noise, low vibration, and minimal heat generation
- Protection Systems: Comprehensive safeguards including over/under voltage, phase current, and bus overcurrent protection
- Signal Isolation: All input/output control signals feature optical isolation
Dedicated Spindle Inverter
- Custom Design: Specifically engineered for high-speed spindle motors
- Core Technology: 32-bit DSP processor with Intelligent Power Module (IPM)
- Reliability: Exceptional stability for long-duration continuous operation
- Application: Ideal for industrial and educational environments requiring sustained use
Technical Specifications of the X6 Pro CNC Router
| Specification | X6 Pro |
|---|---|
| Machine Dimensions (mm): | LWH = 875 × 672 × 608 |
| Max. Working Travel (mm): | XYZ = 360 × 560 x 100 |
| Frame Material: | 6063-T6 Extruded Aluminum Alloy |

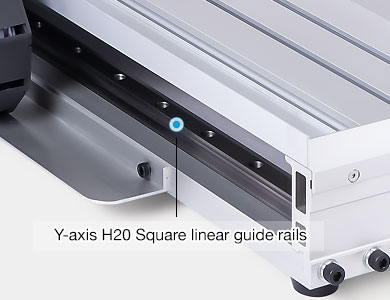

| Rail Type: | HG20 Linear Guide Rails (Y-axis guide rail with double flange block) |
| Screw Type: | Ball Screw (Diameter 16mm, Pitch 5mm) |
| Positioning Accuracy: | 0.05mm |
| Spindle Motor: | 2200W Powerful Brushless Frequency Water-Cooling Spindle |
| Revolution Speed: | 3000 ~ 24000 rpm/min |
| Collet Type: | ER20 (Supports up to 1/2 inch tool) |

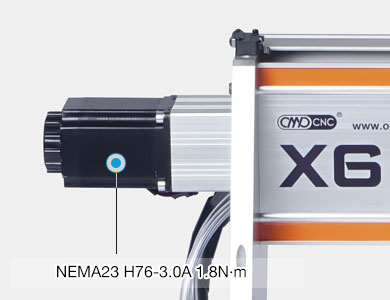

| X/Y/Z Stepper Motor: | NEMA 23 / H76-3.0A / 1.8N.m (Two Phase, Step Angle 1.8°) |
| X/Y/Z Stepper Drives: | High Performance Digital Stepper Drives |
| Feed Rate: | 50 ~ 4000 mm/min |
| Control System: | X-Pro Mach3 Controller (USB connection) |
| Computer Requirements: | Laptop or Desktop PC with Windows 7/10/11 Windows on Mac not supported. |
| Acceptable Command Code: | G-code (File types: .nc / .ncc / .tap / .txt) |
| Power: | 100V~120V or 220V~240V (50/60Hz) |
| Environment: | Temp: 5°~40°C; Humidity: 35 to 80% |
| Weight: | 67 kg |
| Package Dimension (cm): | Standard (without spoilboards): 2 boxes
|

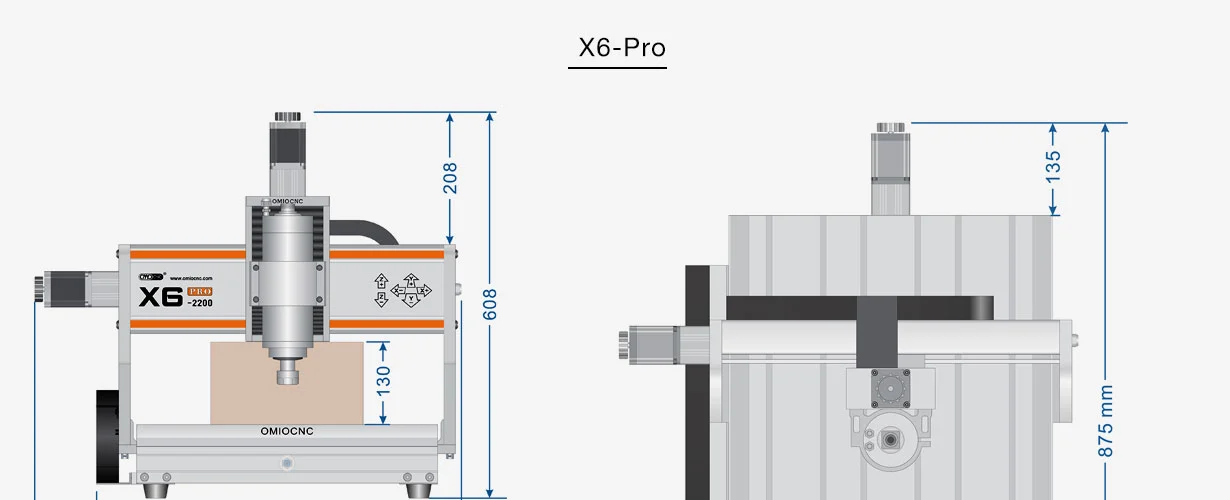

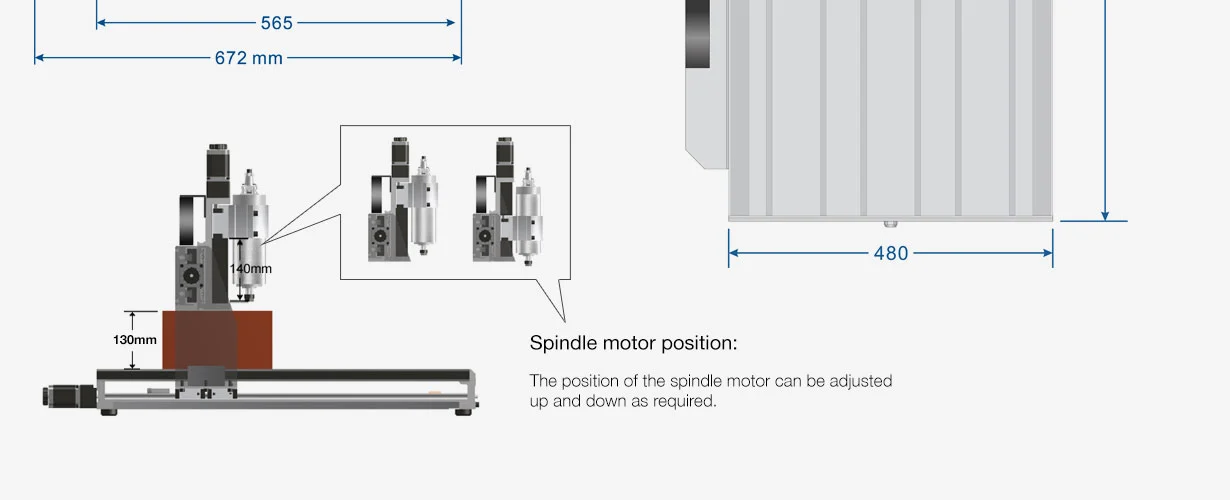

Equipment Dimensions for the X6 Pro
Supports segmented machining of long materials. The spindle fixed position can be adjusted up or down.

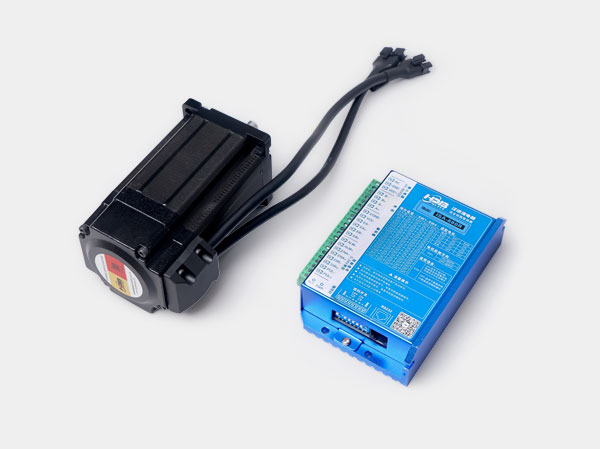

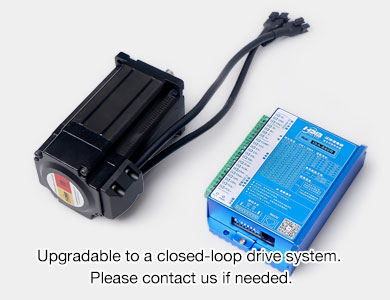

Upgrade Option: Closed-Loop Motors for Enhanced Precision
This machine offers an upgrade from standard stepper motors to closed-loop control motors (for X, Y, Z axes), including a corresponding upgrade to the stepper drive board for improved performance.

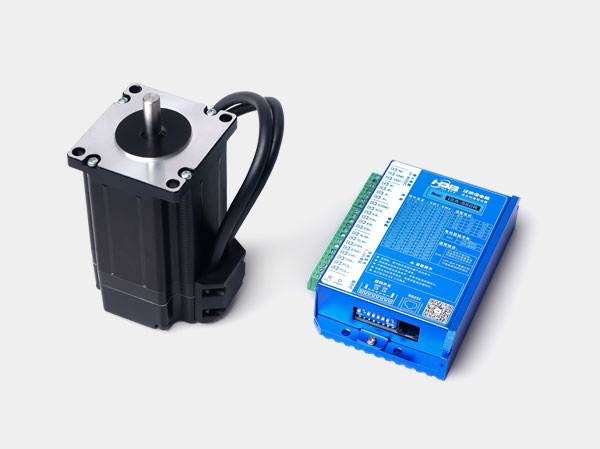

Upgrade XYZ Stepper Motors to Closed-Loop Motors
Closed-loop motors provide superior control accuracy and stability. By utilizing a real-time feedback mechanism, they dynamically adjust their running state to maintain precise output, regardless of load variations.
These motors offer faster dynamic response, allowing for quick transitions to desired speeds, positions, and torque levels. Their enhanced anti-interference performance ensures a stable operating condition even under fluctuating loads and environmental disturbances.
