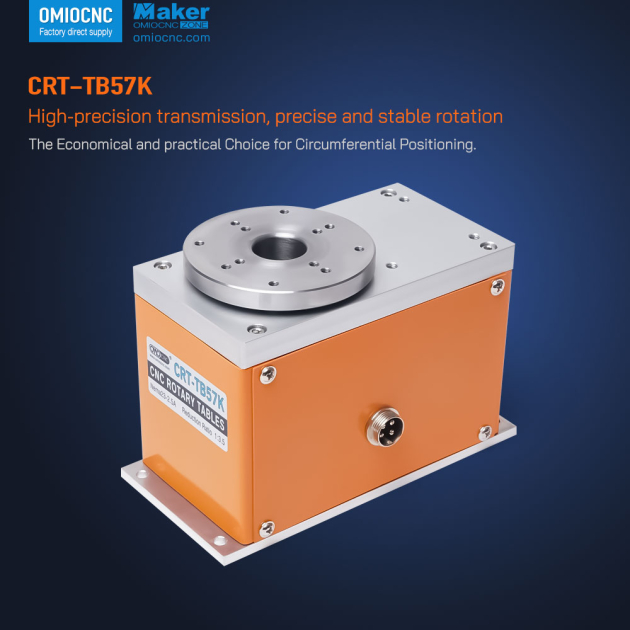

CRT-TB57K Synchronous Belt Hollow Rotary Table
57 Stepper Single Cradle - 5axis Rotary TiltingTable--CRT-ABYL57
Previous

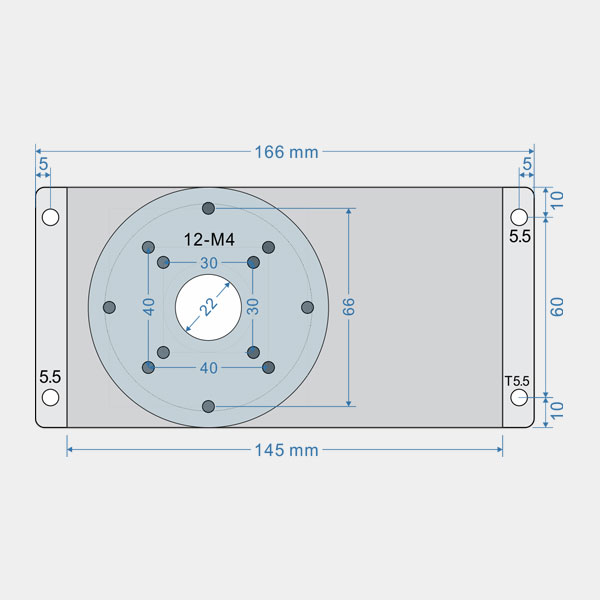

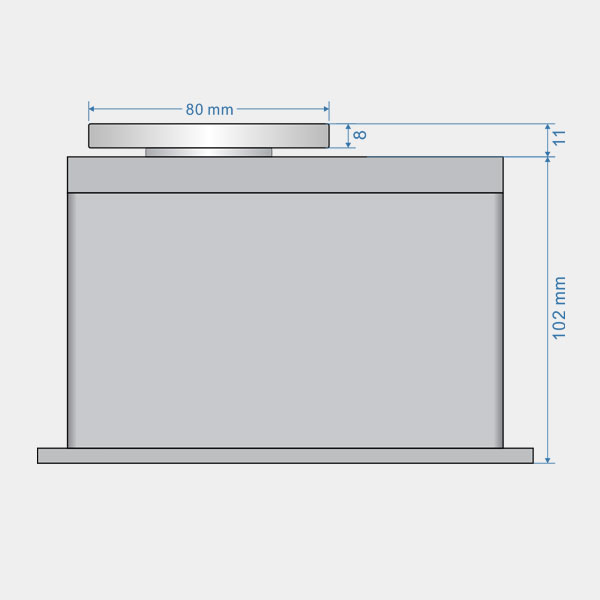

Equipment Dimensions
Specifications
| CRT-TB57K / with Stepper Drive | |
|---|---|
| Model: | CRT-TB57K |
| External Dimensions: | 166 × 80 × 113mm |
| Flange: | D=80mm |
| Positioning Accuracy: | 0.1° |
| Stepper Motor: | NEMA23/1.2N.m/2.5A |
| Transmission Method: | Synchronous Belt Reduction |
| Reduction Ratio: | 1：3.5 |
| Holding Torque: | 3.8N.m |
| Maximum Rotational Speed: | 200r/min |
| Stepper Drive: | OMIOCNC-X054H |
| Cable Length: | 1m |
Packing List

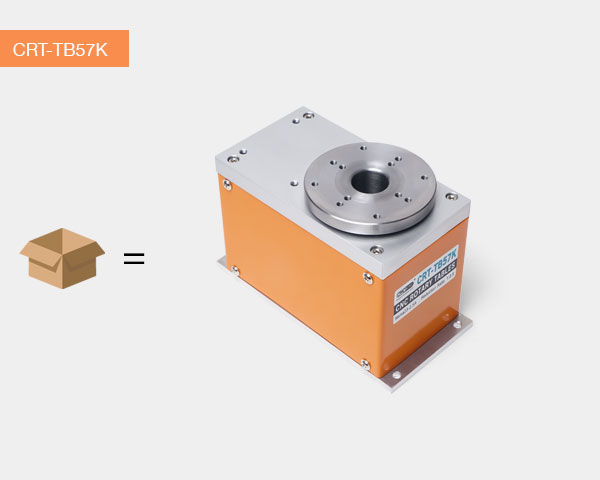

CRT-TB57K
Packing List:
1 × CRT-TB57K
Weight (incl. packaging): 3.7 kg

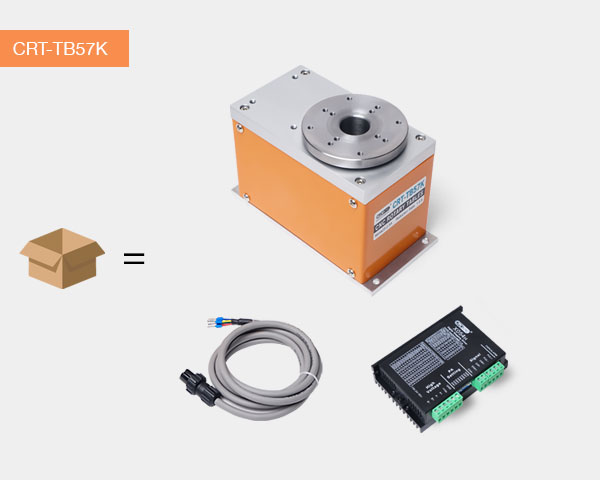

CRT-TB57K with Drivers
Packing List:
1 × CRT-TB57K
1 × Stepper Drive
1 × Cable
Weight (incl. packaging): 4.2 kg
