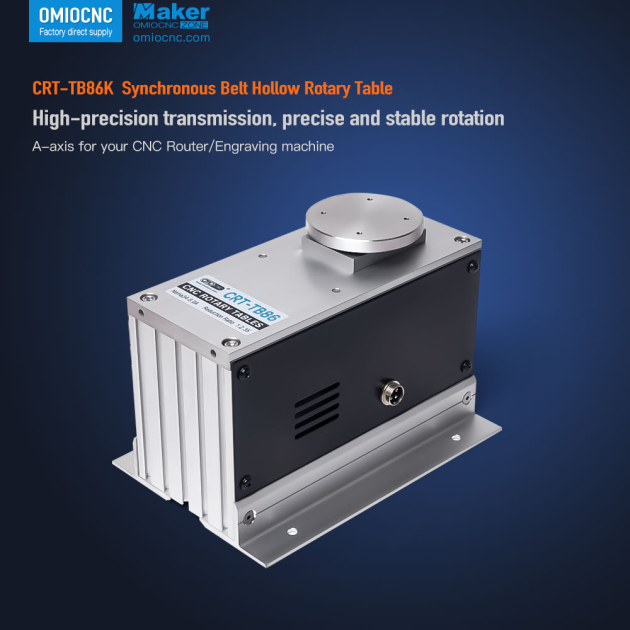

CRT-TB86K Synchronous Belt Rotary Table
Features: The Economical and practical Choice for Circumferential Positioning.
57 Synchronous Belt Rotary Table--CRT-TB57K
Previous

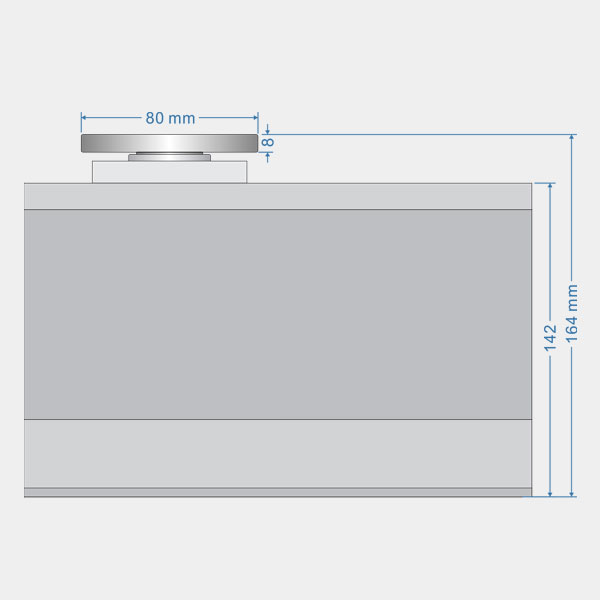

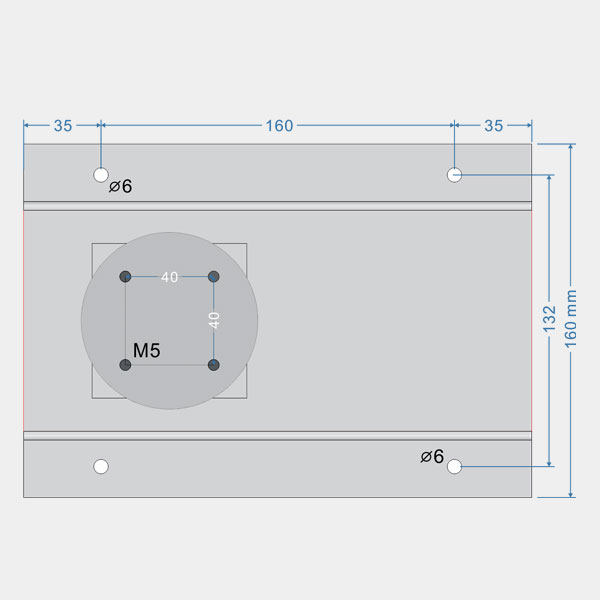

Equipment Dimensions
Specifications
| CRT-TB86K / with Stepper Drive | |
|---|---|
| Model: | CRT-TB86K |
| External Dimensions: | 240 × 160 × 164mm |
| Flange: | D=80mm |
| Positioning Accuracy: | 0.1° |
| Stepper Motor: | NEMA34 / 4.5N.m / 4.2A |
| Transmission Method: | Synchronous Belt Reduction |
| Reduction Ratio: | 1:2.35 |
| Holding Torque: | 9.0N.m |
| Maximum Rotational Speed: | 160r/min |
| Stepper Drive: | JMC-2DM860 |
| Cable Length: | 1m |
Packing List

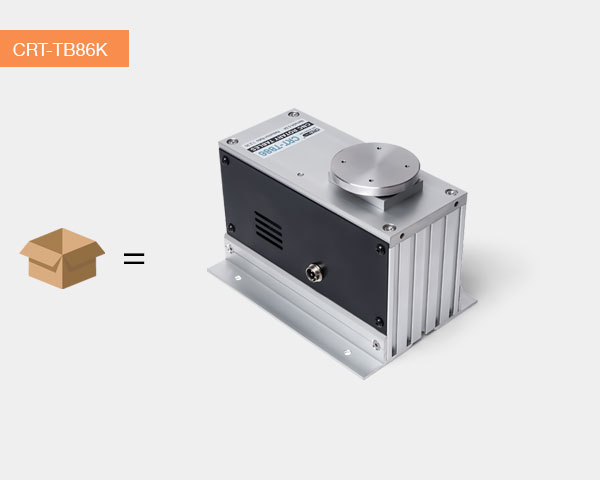

CRT-TB86K
Packing List:
1 × CRT-TB86K
Weight (incl. packaging): 8.5 kg

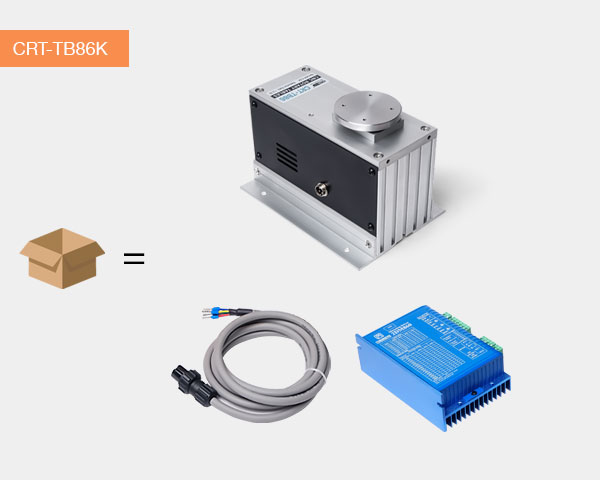

CRT-TB86K with Drivers
Packing List:
1 × CRT-TB86K
1 × Stepper Drive
1 × Cable
Weight (incl. packaging): 9.0 kg
