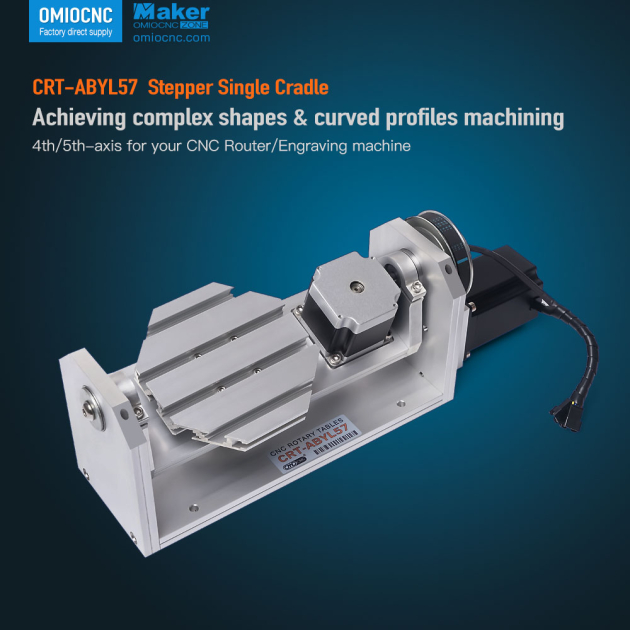

CRT-ABYL57 Dual-Axis Cradle Rotary Table – 0.1° Precision A/B Axis

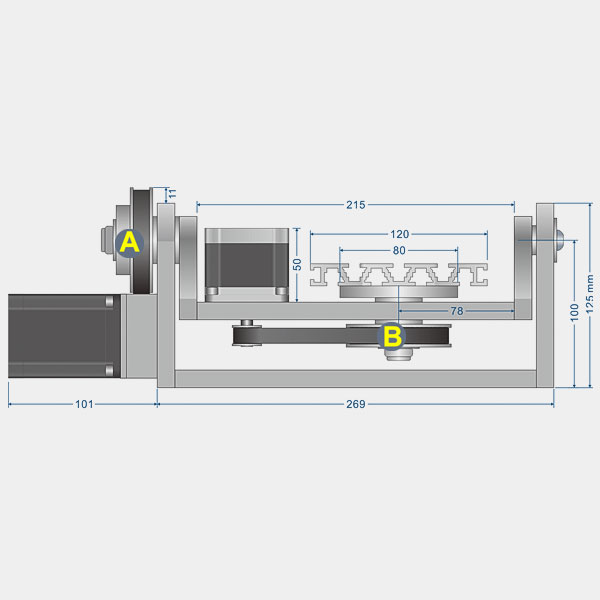

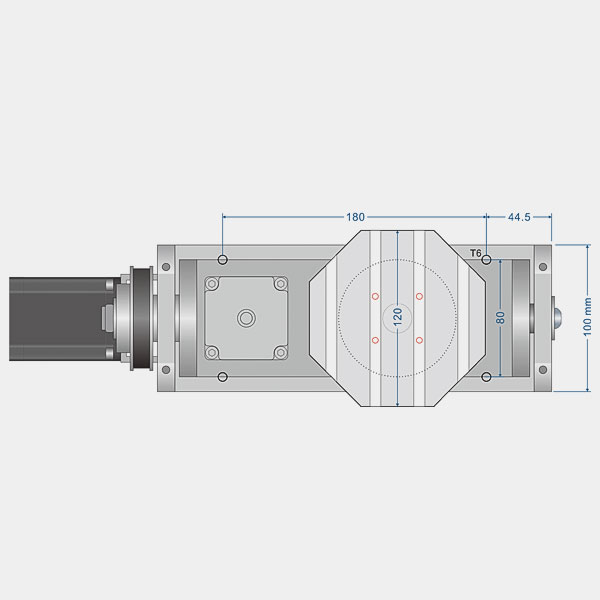

Equipment Dimensions
Specifications
| CRT-ABYL57 / with Stepper Drive | |
|---|---|
| Model: | CRT-ABYL57 |
| Positioning Accuracy: | 0.1° |
| A-Axis Reduction Ratio | 1:3.5 |
| A-Axis Center Height | 100 mm |
| A-Axis Rotation Angle | Left 270° / Right 270° |
| A-Axis Stepper Motor | NEMA23 / 1.8° / 2.2 N·m / 3.5A |
| B-Axis Reduction Ratio | 1:3.5 |
| B-Axis Table Size | 120 mm × 120 mm |
| B-Axis Rotation Angle | 360° (Continuous) |
| B-Axis Stepper Motor | NEMA23 / 1.8° / 1.3 N·m / 2.5A |
| Load Capacity | ≤ 4 kg |
| Overall Dimensions | 370 mm (L) × 120 mm (W) × 136 mm (H) |
| Net Weight | 5.3 kg |
| Packaging Weight | 7.0 kg |
Packing List

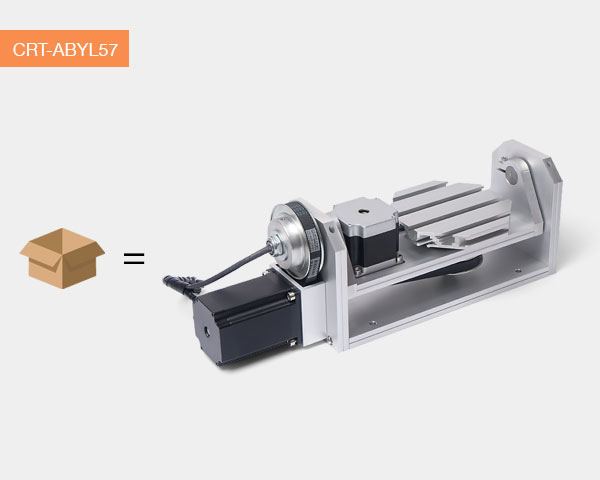

CRT-ABYL57
Packing List:
1 × CRT-ABYL57
Weight (incl. packaging): 7.0 kg

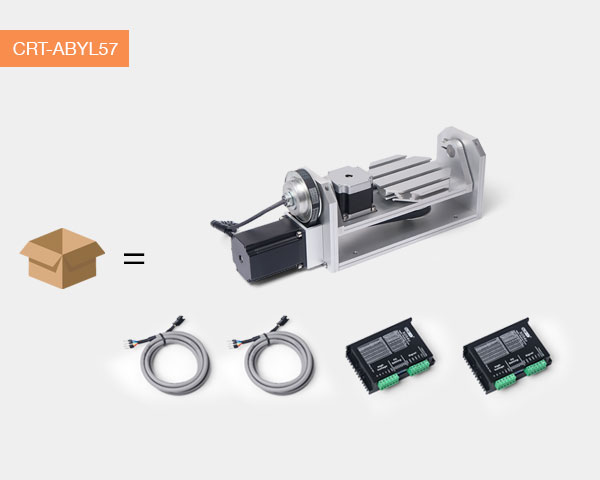

CRT-ABYL57 with Drivers
Packing List:
1 × CRT-ABYL57
2 × Stepper Drives
2 × Cables
Weight (incl. packaging): 7.6 kg
