X8-2200EPL Professional CNC Router | Featuring Industrial EPL Offline Control
About X8-2200EPL
- Topology optimization design of aerospace-grade 6063-T6 aluminum extrusion.
- Industrial-grade motion system: Square linear guides + precision ball screws, achieving ±0.05mm repeatability positioning accuracy.
- 2200W high-power variable frequency spindle, supporting stepless speed variation from 0 to 24,000rpm, maintaining constant speed during 8-hour continuous machining without frequency drop.
- The offline control system operates independently without reliance on external computers or networks.
X8-2200L CNC Router | Carving Milling Engraving Machine
Previous
X8-2200EPL Commercial CNC Router: A Decade-Refined Flagship for Precision Multi-Material Machining
The X8-2200EPL represents the culmination of 10 years and 5 generations of development in our flagship CNC router series. Engineered for unparalleled value, it combines robust machining power, industrial-grade reliability, and exceptional precision, making it the ideal choice for workshops, R&D labs, STEAM education, and small-batch manufacturing.
Why Choose the X8-2200EPL?
- Proven Track Record: Trusted by hundreds of FRC teams and businesses worldwide for over a decade.
- Superior Cost-Performance: Delivers capabilities found in more expensive machines, offering a faster return on investment.
- Industrial-Grade Construction: Built with custom 6063-T6 aluminum extrusions and professional assembly for lasting rigidity and accuracy.
- Versatile Application Ready: Perfect for prototyping, education, custom fabrication, and production runs in various materials.
Materials & Applications
The X8-2200EPL excels in machining a wide range of materials, offering particularly low operating costs for aluminum and efficient handling of plastics and composites.
Metals
- Aluminum Alloys: (Ideal) Cutting, milling, engraving.
- Copper, Brass: Engraving, mold making.
- Soft Metals: Thin sheet cutting and etching.

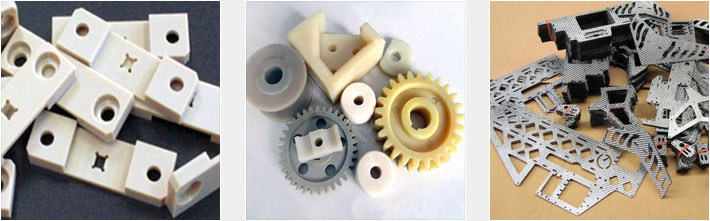

Plastics & Composites
- Plastics: Acrylic, PVC, Nylon, ABS, POM, PTFE.
- Composites: PCB boards, carbon fiber panels, fiberglass.
- Signage Materials: Foam, PVC, acrylic.
Wood & Creative
- Wood: Hardwood, MDF, plywood for detailed carving.
- Modeling: Precision parts for prototypes and models.
- Arts & Crafts: Detailed inlays, decorative elements.
Aluminum Plate Cutting
Aluminum Parts Milling & Drilling
1mm Stainless Steel Cutting
Copper - Leather Embossing Mold
Copper Mold Engraving
Copper Mold Batch Cutting/Engraving
Carbon Fiber Cutting – Drone Manufacturing
Wooden Chessboard Engraving
Batch Aluminum Processing – Robotics Production
Batch Aluminum Processing – Robotics Production
Wood Cutting – Guitar Making
Hardwood Engraving – Art Decor Production
X8-2200EPL Case – Plastic Gears
X8-2200EPL Case – Composite Architectural Decor
X8-2200EPL Case – Aluminum Parts Processing
Machine Features
The X8-2200EPL utilizes 6063-T6 extruded aluminum alloy profiles for all frame components, offering higher density and enhanced structural strength. Each material unit maintains strict dimensional consistency, minimizing machining errors during production. The Y-axis employs a grade-2005 ball screw with 30% increased load capacity and superior rigidity, optimized for high-speed machining scenarios. Additional innovations include professional screw mounting fixtures and clamp-style couplings, ensuring stability during prolonged high-speed operation. With 7 exclusive patented technologies, its comprehensive machining performance surpasses competitors in the same price range.
The X-axis and Z-axis both feature professional H20 square linear guides and high-precision 1605 ball screws, ensuring smoother movement and higher accuracy. Each axis uses dedicated high-strength aluminum extrusion modules.
The Y-axis is equipped with dual H20 professional square linear guides and double sliders on both sides, paired with a high-precision 2005 ball screw.
High-strength aluminum alloy profiles
Specialized assembly
The high-hardness butting worktable is made of extra-strong 6063-T6 aluminum alloy, featuring a patented T-slot design. After multiple iterations and improvements, it offers superior structural strength, custom-molded manufacturing, and professional assembly.
Industrial-grade 2.2KW ER20 water-cooled spindle—high power, high torque, capable of continuous operation for up to 12 hours.
The high-torque stepper motor (3.2N.m) achieves a 28% improvement in load-driving capability and approximately 22% faster acceleration at the same speed, significantly enhancing start-stop performance.
OMIO-EPL-4F Offline Control System
The machine comes standard with the standalone OMIO-EPL-4F Offline Controller (Orange Control Box) and a Handheld Handwheel Control handle .
OMIO-EPL-4F Offline Controller + Handheld Handwheel Control handle
Why Choose an Offline Control System (EPL)?
Compared to traditional PC-dependent controllers (like Mach3), the OMIO-EPL-4F offline control system delivers fundamental improvements in reliability and performance:
Advantages of EPL Offline Control
- Standalone Operation: No dependency on external computers or networks, eliminating system crash and software conflict risks.
- Strong Anti-Interference: Embedded hardware with dedicated short-path signal transmission reduces bit error rates by over 80% in high EMI environments.
- Excellent Real-Time Performance: Dedicated DSP chips eliminate millisecond-level delays from PC OS scheduling.
- Higher Precision: Short-stroke positioning accuracy improves by 30% in high-speed machining scenarios.
Standard Specifications
- RM9 main control chip, FPGA core algorithm chip
- 4.3-inch display
- Supports G-code reading via USB, no file size limit
- 0-10V spindle analog control port
- Equipped with handwheel (MPG) interface
- Supports multiple coordinate systems
- Automatic power-off data save
Specifications
| Specification | X8-2200EPL |
|---|---|
| Machine Dimensions (mm): | LWH = 1150 × 420 × 590 |
| Max. Working Travel (mm): | XYZ = 565 × 770 × 80 |
| Acceptable Material Thickness (mm): | ≤ 140mm |
| Frame Material: | 6063-T6 Extruded Aluminum Alloy |
| Rail Type: | HG20 Linear Guide Rails (Y-axis guide rail with double flange block) |
| Screw Type: | X-axis & Z-axis: 1605 Ball Screw (diameter 16mm, screw thread pitch 5mm) Y-axis: 2005 Ball Screw (diameter 20mm, screw thread pitch 5mm) |
| Positioning Accuracy: | 0.05mm |
| Spindle Motor: | 2200W Powerful Brushless Frequency Water-cooled Spindle |
| Revolution Speed: | 6000~24,000 rpm/min |
| Collet Type: | ER20 (Includes one 6mm collet free of charge) |
| X/Y/Z Stepper Motor: | NEMA 23 - 82HBS8-3.2A |
| X/Y/Z Stepper Drives: | High Performance DSP Intelligent Digital Stepper Drives |
| Feed Rate: | 100~4,000 mm/min |
| Control System: | Stand-alone control system (EPL-4F Offline Control Box) With Handheld Handwheel Control handle |
| Acceptable Command Code: | G-code (file type: .nc / .ncc / .tap / .txt) |
| Power: | 100V~120V or 220V~240V (50/60Hz) |
| Environment: | Temperature: 5°~40℃; Humidity: 35 to 80% |
| Machine Net Weight: | 83 kg |
| Machine Volume Weight with Package: | 89 kg |
| Package (cm): | 2 boxes (Box 1: 64 × 45 × 55, Box 2: 86 × 63 × 22) |
Equipment Dimensions
Support for long materials machining segmented. The spindle fixed position can be adjusted up or down.
X8-2200EPL v.s. X8-2200L
| Comparison Item | X8-2200EPL | X8-2200L |
|---|---|---|
| Mechanical structure & size: | Same | |
| Spindle motor and Stepper motors: | Same | |
| Electronic drive system: | Same | |
| Control system: | Independent offline controller | USB Motion control card |
| PC connection required: | No | Yes |
| Anti-interference capability: | Strong | Depends on the stability of the pulse signal output from the user's PC. |
