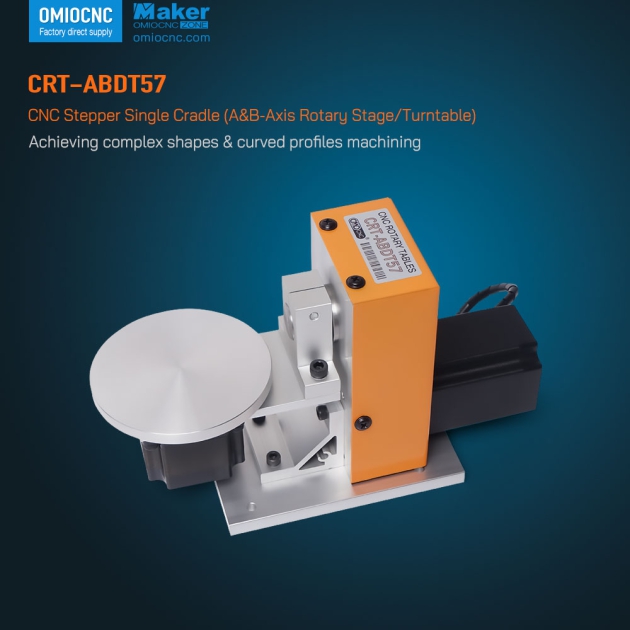

CRT-ABDT57 Single Cradle Rotary Table – 0.1° Precision A/B Axis

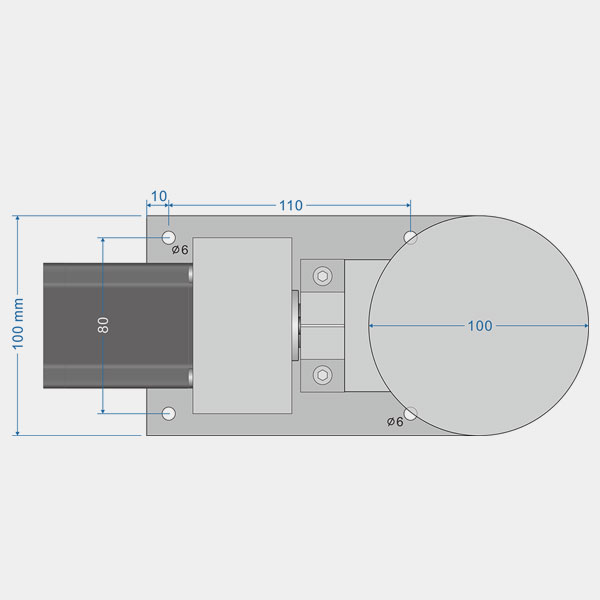

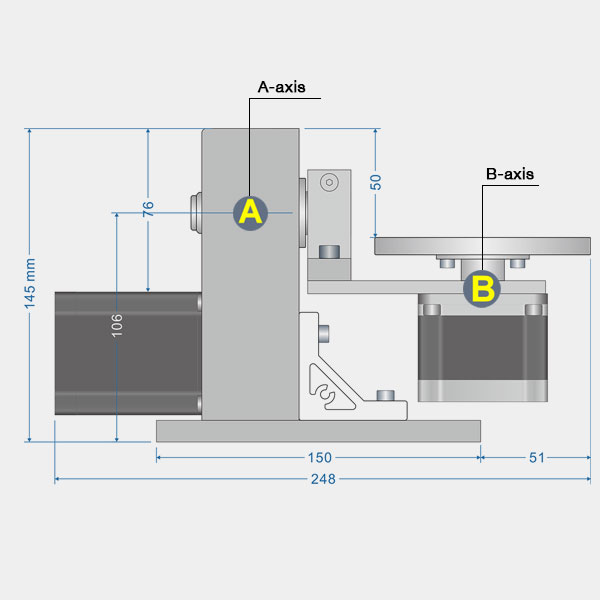

Equipment Dimensions
Specifications
| CRT-ABDT57 | |
|---|---|
| Model: | CRT-ABDT57 |
| Positioning Accuracy: | 0.1° |
| A-Axis Reduction Ratio: | 1:3.5 |
| A-Axis Center Height: | 106mm |
| A-Axis Rotation Range: | Left 270° , Right 270° |
| B-Axis Reduction Ratio: | 1:1 (Motor Direct Drive) |
| B-Axis Turntable Diameter: | 100mm |
| B-Axis Rotation Range: | 360° |
| B-Axis Stepper Motor: | NEMA23, 1.8°, 1.2N.m, 2.5A |
| Load Capacity: | 1kg |
| Dimensions: | 248mm (L) × 100mm (W) × 145mm (H) |
| Net Weight: | 3.4kg |
| Gross Weight: | 4.5kg |
Packing List

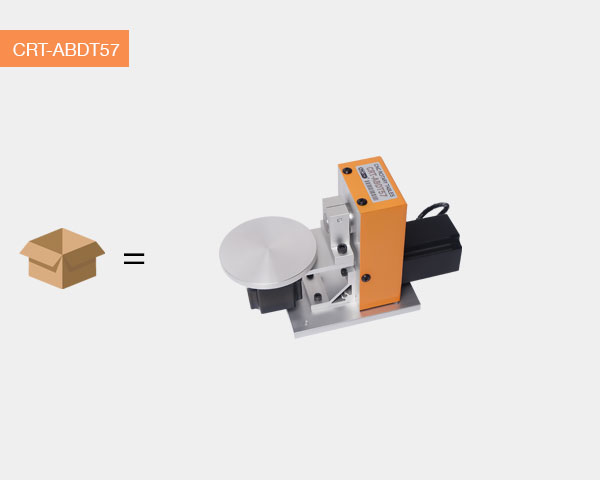

CRT-ABDT57
Packing List:
1 × CRT-ABDT57
Weight (incl. packaging): 4.5 kg

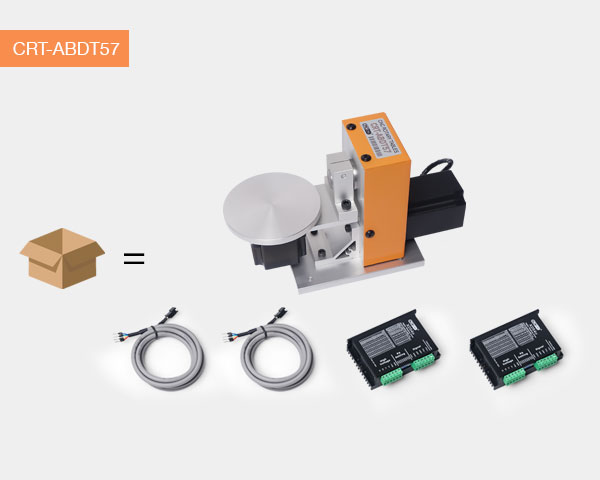

CRT-ABDT57 with Drivers
Packing List:
1 × CRT-ABDT57
2 × Stepper Driver boards
2 × Cables
Weight (incl. packaging): 5.5 kg
