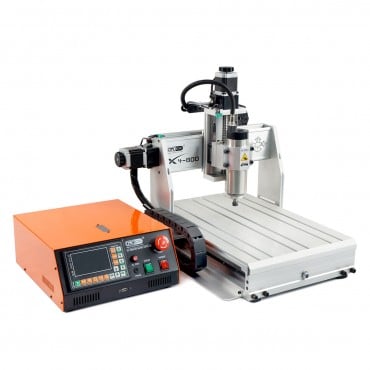

X4-800EPL CNC Desktop Engraving Machine


Availability: In stock

Standard come with OMIO-EPL-4F Offline Control System, HG15/20 Linear Guide Rails(for XYZ axis), 40V Switching-Power, OMIO556 Stepper Drives, Limit Switches, ER11-800W Air-cooled Spindle, AH60 4th-axis optional.

Shipping: We ship to Global. Add to Cart then go to shopping cart to check the shipping cost.

<<  Back to learn more

* Required Fields

Shopping Policy
  • Shipping by DHL/FEDEX/UPS, more>
  • Pay via Bank Transfer or Western Union, you can get 4% discount.
  • Estimated Delivery Time: 7 -15days
  • Buyer Protection: Full Refund if you don't receive your order.
  • Water pump (only for machine with water-cooled spondle).
Equipment Specifications
Max. working stroke: (X)270×(Y)390×(Z)100mm
Acceptable material thickness: ≤105mm
Frame Material: 6061-T5 extruded aluminum alloy
Rail type: (XZ)HG15 Linear Guideway, (Y)HG20 Linear Guideway
Screw Type: Ball screw, diameter 16mm,screw thread pitch 5mm
Mechanical Resolution: XYZ-axis: 0.0025 mm/step
Positioning accuracy: 0.05mm
Spindle Motor: Powerful brushless frequency spindle, ER11/800W 4bearings air-cooled
Revolution Speed: 6000~24000rpm/min
Collet type: ER11 (equipped with 6mm collet)
X/Y/Z Stepper Motor: Stepper Motor 57BYGH64-2.8A
X/Y/Z/A Stepper Drives: OMIO556 High performance Digital Stepper Drives
Feed rate: 100~4000mm/min
Control System: OMIO-EPL-4F CNC system
Acceptable Command code: : G-code (file type: /.nc/.ncc/.tap/.txt)
Power: 100V-120V or 220V-240V
Environment: Temp: 5°~40° C; Humidity: 35 to 80%
Equipment Dimensions and Weight
Equipment dimensions: L690 × W545 × H560mm
Machine weight: 46kg
Package dimension: 1 box (680x550x550mm)
