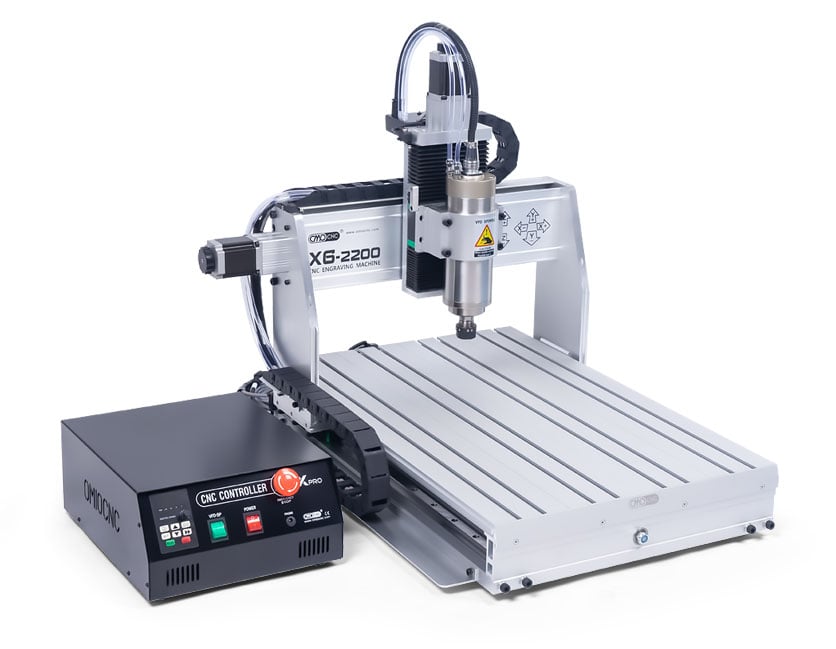

X6-2200L-USB
OMIOCNC Desktop Engraver
Overview
X6-2200L-USB has the most powerful performance in the current same level desktop-engraver. it is a fighter in desktop-engraver field.
Now we recommend to you this fighter and provide an incrediable price！
◎ Standard 2.2KW water-cooling frequency spindle.
◎ XYZ-axis all use HG20 Linear Guide Rails,
◎XYZ-axis limit protected.
◎ wireless control.
◎ USB interface, support laptop computer.
◎ DC40V 'switching power' provided ample power source for the stepper drive.
◎ Advanced digital stepper drives achieved a greater locking torque and positioning accuracy.
◎ High-performance USB motion controller guaranteed that transmission of running instructions real-time and accurately.
◎ Featured highly matching VFD guaranteed spindle motor to running on high performance.
◎ Reasonable lines layout reflected the intentions of design.
Now we recommend to you this fighter and provide an incrediable price！
◎ Standard 2.2KW water-cooling frequency spindle.
◎ XYZ-axis all use HG20 Linear Guide Rails,
◎XYZ-axis limit protected.
◎ wireless control.
◎ USB interface, support laptop computer.
◎ DC40V 'switching power' provided ample power source for the stepper drive.
◎ Advanced digital stepper drives achieved a greater locking torque and positioning accuracy.
◎ High-performance USB motion controller guaranteed that transmission of running instructions real-time and accurately.
◎ Featured highly matching VFD guaranteed spindle motor to running on high performance.
◎ Reasonable lines layout reflected the intentions of design.
Machinable Materials
X6-2200L suitable for machining of bamboo, wood, various plastics (such as ABS, POM, nylon, glass, rubber, etc.), advertising logo material (such as acrylic, color plates, aluminum panels, Chevron board), bakelite plate, fiberglass plate, carbon fiber plate, non-ferrous metals (such as gold, silver, copper, aluminum, lead, zinc, stainless steel, etc.).
 |
 |
 |
 |
|
Wood
|
Marble
|
Acrylic plate
|
Insulation board
|
 |
 |
 |
 |
|
1045(45C)Carbon Steel
|
Copper
|
Aluminum Alloy
|
High density board
|
Machinable Material Dimensions
◎ Support for long materials machining segmented.
◎ The spindle fixed position can be adjusted up or down.
Features
HG20 Linear Guide Rails
Wireless control handle,
easy and convenient to use
easy and convenient to use
USB Motion Control Card
High Performance Digital Stepper Drives
Support Laptop computer to control
travel limit protection
2200W Frequency Spindle
2200W spindle motor provides stronger cutting power, greatly improved machining efficiency.
X6-2200L equipped Linear Guide Rails , now you can use bigger than 6mm collets and cutting tool .when engraving non-metallic material, you will get more convenience and save more time.
Please note:
◎X6-2200L equipped ER20-2.2KW-Water-Cooled Spindle.
◎ Comes standard with: 6mm collet * 1 . we send 3.175mm * 1 as free gift.
if you need other specifications collets, please buy it by yourself.
Mature and Perfect Mechanical Structure
For seven years, we continue to improve the mechanical structure, thereby created a generation classic models in personal CNC field.
Now, although there are growing number of imitators, but we firmly believe that Classic will continue, because we made it really diligently. For your benefit, please buy genuine products.
◎ X6-2200L-USBequipped with Linear Guide Rails which has stronger intensity and greater precision, and it is designed special aluminum profiles for X6-2200L-USB. now we directly sale X6-2200L-USB to global only via omiocnc.com , if any other store(or webstore) sell it, that's must be a fake.
◎ This machine target user must be a professional user, you need to have some knowledge of cutting tools and machining experience.
we suggest that : if you have never used a similar CNC equipment , you'd better do not buy X6-2000L-USB. you can choose other models like X3, X4, or X6 series..
Now, although there are growing number of imitators, but we firmly believe that Classic will continue, because we made it really diligently. For your benefit, please buy genuine products.
◎ X6-2200L-USBequipped with Linear Guide Rails which has stronger intensity and greater precision, and it is designed special aluminum profiles for X6-2200L-USB. now we directly sale X6-2200L-USB to global only via omiocnc.com , if any other store(or webstore) sell it, that's must be a fake.
◎ This machine target user must be a professional user, you need to have some knowledge of cutting tools and machining experience.
we suggest that : if you have never used a similar CNC equipment , you'd better do not buy X6-2000L-USB. you can choose other models like X3, X4, or X6 series..
Specifications
Equipment Specifications
| Max. working stroke： | (X)355×(Y)510×(Z)85mm (Tips: if remove the Z-axis dust cover, Z-axis travel will be 140mm.) |
| Acceptable material thickness： | ≤140mm |
| Frame Material： | 6061-T5 extruded aluminum alloy |
| Rail type： | HG20 Linear Guide Rails |
| Screw Type： | 1605 Ball screw,Diameter 16mm,screw thread pitch 5mm |
| Positioning accuracy： | 0.05mm |
| Spindle Motor ： | Frequency spindle,2200W |
| Revolution Speed： | 6000~24000rpm/min |
| Collet type ： | ER20(standard equipped with 6mm collet, If need other size collet, please buy from other place.) |
| X/Y/Z Stepper Motor ： | 57BYGH76-3A/150N.cm |
| X/Y/Z/A Stepper Drives： | High performance Digital Stepper Drives |
| Feed rate ： | 100-4000mm/min |
Equipment Working Requirements
| Computer | Laptop or Desktop |
| Communication Interface： | USB |
| Operation System | Windows XP, Windows 7, Windows 10 |
| Control Software | MACH3 (recommend use the version which we send to .) |
| Command code： | G-code(file type: /.nc/.ncc/.tab/.txt ) |
| Power： | 100V-120V or 220V-240V |
| Environment ： | Temp: 5°~40° C; Humidity: 35 to 80% |
Equipment Dimensions and Weight
| Equipment dimensions： | L880 × W665 × H655mm |
| Machine weight： | 68kg |
| Packages： | 2 boxes (box1: 640x450x550mm, box2: 860x630x220mm) |
4th-axis (A-axis,Rotation-axis)
Please click here to see the new upgraded 4th-axis: H60-TB80T or AH60-XX80M-10
Standard Package list
Note:
◎ X6-2200-USB packaged with 2 boxes.
◎ X6-2200-USB packaged with 2 boxes.
