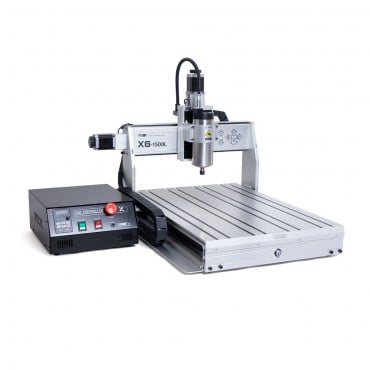

X6-1500L-USB CNC Desktop Engraving machine

Regular Price: US$1,999.00

Special Price US$1,899.00

Availability: In stock

This machine is equipped with linear guide rails (square rail) for XYZ axis. Standard comes with ER11-1500W Air-cooling Spindle. If add 4th-axis, a stepper driver board will be pre-installed into the control box for the 4th-axis.



* Required Fields

Regular Price: US$1,999.00

Special Price US$1,899.00

Shopping Policy
  • Shipping by DHL/FEDEX/TNT, more>
  • We accept PayPal, you can use credit card through PayPal.
  • Estimated Delivery Time: 12 - 20days
  • Buyer Protection: Full Refund if you don't receive your order.
  • Free Water pump (only for machine with water-cooling spindle).

Rigid all-metal design
heavy-duty aluminum extrusion

Mechanical Structural Details

This machine is perfect for a wide variety of applications including milling, drilling, contouring, and routing. It allows you to create highly detailed carvings , fast and easy to engrave or scribe a wide variety of materials. including hardwoods, softwoods, MDF,and many synthetic materials such as Acrylic and ABS,POM, foam, modeling wax, styrene, epoxy board, urethane foam, plastic, nylon,Epoxy Tooling Board, and light metals such as brass and aluminum...etc. It can produce accurate, repeatable, and cost-effective work in much less time than it takes to do the same work by hand. Its low cost,high precision and low noise operation makes it perfect for workshop,home or office use.

Production process

Dimensions and Machinable Material Size

Support for long materials machining segmented.The spindle fixed position can be adjusted up or down.

EQUIPMENT SPECS

Equipment Specifications
Max. working stroke: (X)365×(Y)565×(Z)80mm
Acceptable material thickness: ≤125mm
Frame Material: 6061/6063-T6 extruded aluminum alloy
Rail type: Linear Guide Rails (Square rail)
Screw Type: Ball screw,Diameter 16mm,screw thread pitch 5mm
Positioning accuracy: 0.05mm
Spindle Motor : 1500W Powerful Brushless frequency spindle
Revolution Speed: 3000~24000rpm/min
Collet type : ER11 Collet 3.175 ~ 6mm
X/Y/Z Stepper Motor : Stepper Motor 57BYGH76-3.0A
X/Y/Z/(A) Stepper Drives: High-performance DSP digital driver
Feed rate : 300~5000mm/min
Equipment Working Requirements
Computer Laptop or Desktop
Communication Interface: USB
Operation System Win7(32/64bit) ,Win10.
Control Software MACH3
Command code G-code(file type: /.nc/.ncc/.tab/.txt )
Power: 220V~240VAC / 100~120VAC
Environment : Temp: 5°~40° C; Humidity: 35 to 80%
Equipment Dimensions and Weight
Equipment dimensions L880 × W665 × H580mm
Machine weight: 53kg (Including packaging)
Packages: 2 box (66*47*48cm,87*20*65cm)

In The Box

Optional: 4th-axis
