X4-800L-USB
OMIOCNC Desktop Engraver
Overview
If you feel X6 series is too big, X4-800 is not powerful enough, if you are expecting higher machining efficiency, or if you need to machining copper or aluminum or other soft metals, the X4-800L is your best choice.
Although X4-800L use 800W spindle, but it is equipped with Linear Guide Rails, the Linear Guide Rails brings qualitative leap forward to milling performance , more faster, more accurate, more powerful.
X4-800L is especially designed for DIY enthusiasts, Creators and SME R&D department. and of course that you can use it to Machining some of the goods to earn money. It is a trustworthy friend.
◎ Standard 800W water-cooling frequency spindle.
◎ 3-axis all use HG15+20 Linear Guide Rails,
◎XYZ-axis limit protected.
◎ wireless control.
◎ USB2.0 interface, support laptop computer.
◎ DC36V 'switching power' provided ample power source for the stepper drive.
◎ Advanced digital stepper drives achieved a greater locking torque and positioning accuracy.
◎ High-performance USB motion controller guaranteed that transmission of running instructions real-time and accurately.
◎ Featured highly matching VFD guaranteed spindle motor to running on high performance.
◎ Reasonable lines layout reflected the intentions of design.
◎ H60 4th-axis(A-axis) with YOC556 Stepper Drive.
Although X4-800L use 800W spindle, but it is equipped with Linear Guide Rails, the Linear Guide Rails brings qualitative leap forward to milling performance , more faster, more accurate, more powerful.
X4-800L is especially designed for DIY enthusiasts, Creators and SME R&D department. and of course that you can use it to Machining some of the goods to earn money. It is a trustworthy friend.
◎ Standard 800W water-cooling frequency spindle.
◎ 3-axis all use HG15+20 Linear Guide Rails,
◎XYZ-axis limit protected.
◎ wireless control.
◎ USB2.0 interface, support laptop computer.
◎ DC36V 'switching power' provided ample power source for the stepper drive.
◎ Advanced digital stepper drives achieved a greater locking torque and positioning accuracy.
◎ High-performance USB motion controller guaranteed that transmission of running instructions real-time and accurately.
◎ Featured highly matching VFD guaranteed spindle motor to running on high performance.
◎ Reasonable lines layout reflected the intentions of design.
◎ H60 4th-axis(A-axis) with YOC556 Stepper Drive.
Machinable Materials
X4-800L-USB suitable for machining of bamboo, wood, various plastics (such as ABS, POM, nylon, glass, rubber, etc.), advertising logo material (such as acrylic, color plates, aluminum panels, Chevron board), bakelite plate, fiberglass plate, carbon fiber plate, non-ferrous metals (such as gold, silver, copper, aluminum, lead, zinc, stainless steel, etc.),marble, ceramic.
 |
 |
 |
 |
|
Wood
|
Marble
|
Acrylic plate
|
Insulation board
|
 |
 |
 |
 |
|
1045(45C)Carbon Steel
|
Copper
|
Aluminum Alloy
|
High density board
|
Machinable Material Dimensions
◎ Support for long materials machining segmented.
◎ The spindle fixed position can be adjusted up or down.
Features
HG20/15 Linear Guide Rails
Wireless control handle,
easy and convenient to use
easy and convenient to use
High Performance USB Motion controller
for mach3 , support 4-axes
for mach3 , support 4-axes
YOC556 High Performance Digital Stepper Drives,
based on a 32-bit DSP processor
based on a 32-bit DSP processor
Support Laptop computer to control
Travel limit protection

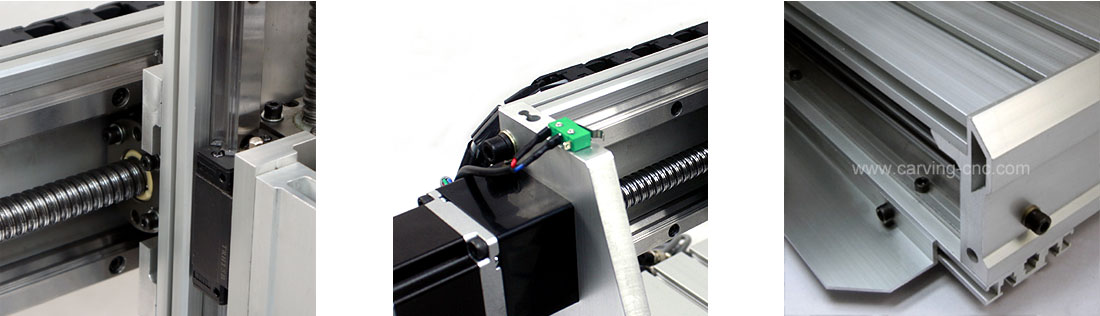

Mature and Perfect Mechanical Structure
For seven years, we continue to improve the mechanical structure, thereby created a generation classic models in personal CNC field.
Now, although there are growing number of imitators, but we firmly believe that Classic will continue, because we made it really diligently. For your benefit, please buy genuine products.
◎ X4-800L equipped Linear Guide Rails which has greater strength and better accuracy, and we designed a special aluminum profiles for X4-800L.
◎ We direct sale this machine to global, if any other online store platforms or websites sell it or similar, it is definitely fake or imitation goods.
Now, although there are growing number of imitators, but we firmly believe that Classic will continue, because we made it really diligently. For your benefit, please buy genuine products.
◎ X4-800L equipped Linear Guide Rails which has greater strength and better accuracy, and we designed a special aluminum profiles for X4-800L.
◎ We direct sale this machine to global, if any other online store platforms or websites sell it or similar, it is definitely fake or imitation goods.
Specifications
Equipment Specifications
| Max. working stroke： | (X)270×(Y)390×(Z)105mm(if use Dust Cover , the Z-axis stroke will be reduced to 90mm.) |
| Acceptable material thickness： | ≤115mm |
| Frame Material： | 6061 and 6063 Hard aluminum alloy (The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.) |
| Rail type： | HG15+HG20 Linear Guide Rails |
| Screw Type： | 1605 Ball screw,Pitch 5mm |
| Mechanical Resolution： | XYZ-axis : 0.0025 mm/step |
| Positioning accuracy： | 0.05mm |
| Spindle Motor ： | Powerful Brushless frequency spindle, 800W |
| Revolution Speed： | 6000~24000rpm/min |
| Collet type ： | ER11（equipped with 3.175mm and 6mm collet） |
| X/Y/Z Stepper Motor ： | NEMEA23 2.8A/130N.cm |
| X/Y/Z/A Stepper Drives： | YOC556 High performance Digital Stepper Drives |
| Feed rate ： | 300~5000mm/min |
Equipment Working Requirements
| Computer | Laptop or Desktop |
| Communication Interface： | USB2.0 (doesn’t support USB3.0) |
| Operation System | Win2000XP, Win7(32/64bit) (Prohibit the installation of any other software except Mach3.) |
| Control Software | MACH3 (recommend use the version which we send to .) |
| Command code： | G-code(file type: /.nc/.ncc/.tab/.txt ) |
| Power： | 100V-120V or 220V-240V |
| Environment ： | Temp: 5°~40° C; Humidity: 35 to 80% |
Equipment Dimensions and Weight
| Equipment dimensions： | L690 × W545 × H560mm |
| Machine weight： | 50kg |
| Package dimension ： | 1 box |
4th-axis (A-axis,Rotation-axis)
H60 Rotation-axis (come with YOC556 Stepper drive *1)
| Center height： | H = 60mm |
| Maximum clamp diameter: | ≤50mm |
| Maximum turning diameter: | ≤110mm |
| Reduction ratio： | 3: 1 |
| Deceleration mode： | Synchronous belt + synchronous wheel. |
| Stepper motor | 57BYGH76-3A |
| Stepper Drive | YOC556 High performance Digital stepping drive |
| Processing materials： | wood, plastic, copper and aluminum. |
| Weight: | 5.5kg |
Optional
Upgrade Spindle
Note:
X4-800L comes standard with a 65mm 800W water-cooled spindle motor (length 160mm).
We also offer 2 kinds of enhanced Spindle 800w selections for X4-800L).
195mm water-cooled spindle (4 bearings) +$40.
190mm air-cooled spindle (4 bearings) +$65. (if you often carving copper or aluminum, this is better selection)
Any spindle comes standard with 2 kinds of 3.175mm*1 and 6mm collet *1.
