X8-2200EPL Woodworking / Metalworking CNC Router --OMIOCNC -omiocnc.com

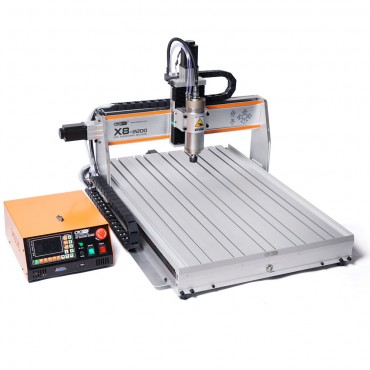

OMIO CNC X8-2200EPL CNC Router | desktop engraving machine

US$2,899.00

Availability: In stock

Standard come with OMIO-EPL-4F Offline Control System, HG20 Linear Guide Rails(for XYZ axis), 40V Switching-Power, High performance Digital Stepper Drives, Limit Switches, ER20-2200W Water-cooled Spindle, AH60 4th-axis optional.


Shipping: Add product to Cart then go to shopping cart page to check the shipping cost.


<<  Back to details page


* Required Fields

US$2,899.00
Shopping Policy
  • Shipping by DHL/FEDEX/TNT, more>
  • We accept PayPal, you can use credit card through PayPal.
  • Estimated Shipping Time: 10 - 15days
  • Buyer Protection: Full Refund if you don't receive your order.
  • Free Water pump (only for machine with water-cooling spindle).
Equipment Specifications
Max. working stroke: (X)565×(Y)770×(Z)85mm (Tips: if remove the Z-axis dust cover, Z-axis travel will be 140mm.)
Acceptable material thickness: ≤140mm
Frame Material: 6061-T5 extruded aluminum alloy
Rail type: HG20 Linear Guideway
Screw Type: Ball screw, XZ=1605,Y=2005,screw thread pitch 5mm
Positioning accuracy: 0.05mm
Spindle Motor: Powerful brushless frequency spindle,2200W
Revolution Speed: 6000~24000rpm/min
Collet type: ER20(standard equipped with 6mm collet, If need other size collet, please see here.)
X/Y/Z Stepper Motor: Stepper Motor 60BYGH86-4.2A
X/Y/Z/A Stepper Drives: High performance Digital Stepper Drives
Feed rate: 100~4000mm/min
Control System: OMIO-EPL-4F CNC system
Acceptable Command code: : G-code (file type: /.nc/.ncc/.tap/.txt)
Power: 100V-120V or 220V-240V
Environment: Temp: 5°~40° C; Humidity: 35 to 80%
Equipment Dimensions and Weight
Equipment dimensions: L1120 × W900 × H690mm
Machine weight: 95kg
Package dimension: 2 boxes (box1: 1130*235*850mm, box2: 870*400*580mm)
