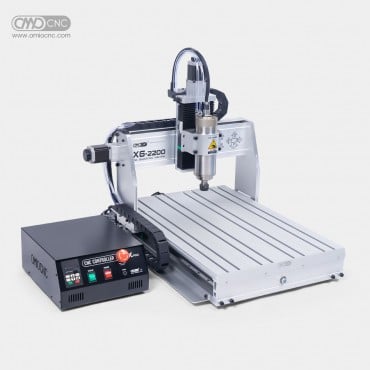

Specifications
Equipment Specifications
| Max. working stroke： | (X)355×(Y)510×(Z)85mm (Tips: if remove the Z-axis dust cover, Z-axis travel will be 140mm.) |
| Acceptable material thickness： | ≤140mm |
| Frame Material： | 6061-T5 extruded aluminum alloy |
| Rail type： | HG20 Linear Guide Rails |
| Screw Type： | 1605 Ball screw,Diameter 16mm,screw thread pitch 5mm |
| Positioning accuracy： | 0.05mm |
| Spindle Motor ： | Frequency spindle,2200W |
| Revolution Speed： | 6000~24000rpm/min |
| Collet type ： | ER20(standard equipped with 6mm collet, If need other size collet, please buy from other place.) |
| X/Y/Z Stepper Motor ： | 57BYGH76-3A/150N.cm |
| X/Y/Z/A Stepper Drives： | High performance Digital Stepper Drives |
| Feed rate ： | 100-4000mm/min |
Equipment Working Requirements
| Computer | Laptop or Desktop |
| Communication Interface： | USB |
| Operation System | Windows XP, Windows 7, Windows 10 |
| Control Software | MACH3 (recommend use the version which we send to .) |
| Command code： | G-code(file type: /.nc/.ncc/.tab/.txt ) |
| Power： | 100V-120V or 220V-240V |
| Environment ： | Temp: 5°~40° C; Humidity: 35 to 80% |
Equipment Dimensions and Weight
| Equipment dimensions： | L880 × W665 × H655mm |
| Machine weight： | 68kg |
| Packages： | 2 boxes (box1: 640x450x550mm, box2: 860x630x220mm) |
