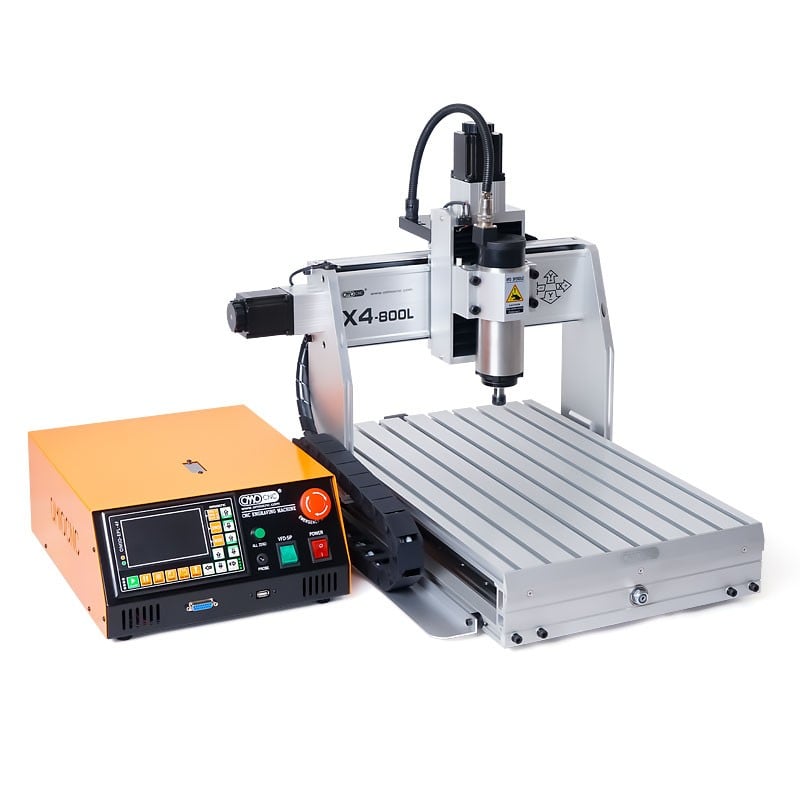

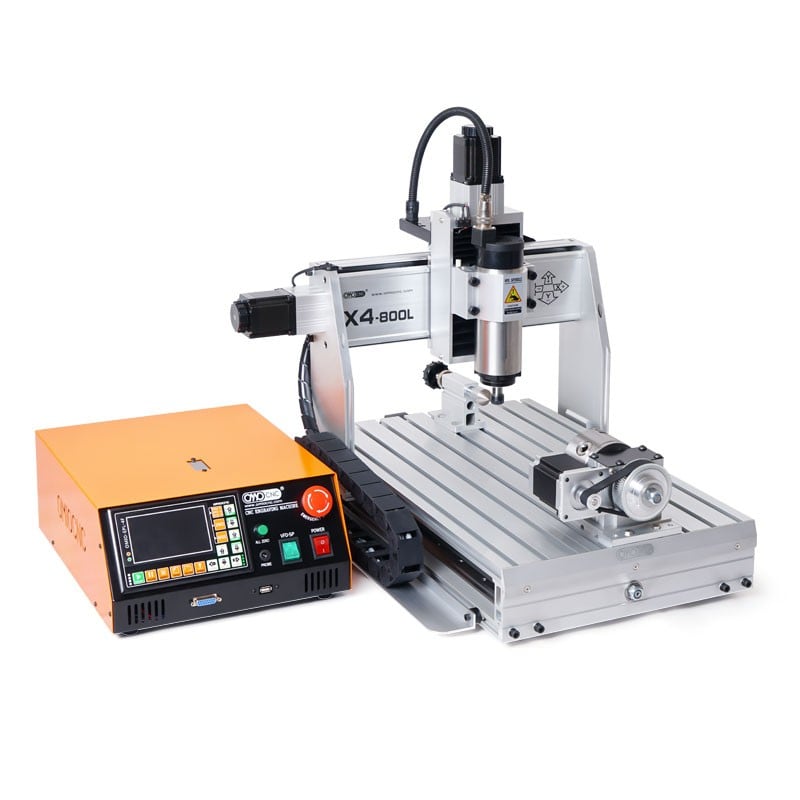

Equipment Specifications
| Max. working stroke: | (X)270×(Y)390×(Z)100mm |
| Acceptable material thickness: | ≤105mm |
| Frame Material: | 6061 and 6063 Hard aluminum alloy (The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.) |
| Rail type: | HG15 Linear Guide Rails (Y-axis guide rail with double flange block) |
| Screw Type: | Ball screw, diameter 16mm,screw thread pitch 5mm |
| Positioning accuracy: | 0.05mm |
| Spindle Motor: | Powerful brushless frequency spindle, 800W/1500W spindle optional. |
| Revolution Speed: | 6000~24000rpm/min |
| Collet type: | ER11 (equipped with 6mm collet) |
| X/Y/Z Stepper Motor: | Stepper Motor 57BYGH64-2.8A |
| X/Y/Z/A Stepper Drives: | X054 High performance Digital Stepper Drives |
| Feed rate: | 100~4000mm/min |
| Control System: | OMIO-EPL-4F CNC system |
| Acceptable Command code: : | G-code (file type: /.nc/.ncc/.tap/.txt) |
| Power: | 100V-120V or 220V-240V |
| Environment: | Temp: 5°~40° C; Humidity: 35 to 80% |
Equipment Dimensions and Weight
| Equipment dimensions: | L690 × W545 × H560mm |
| Machine weight: | 46kg |
| Package dimension: | 1 box (680x550x550mm) |
