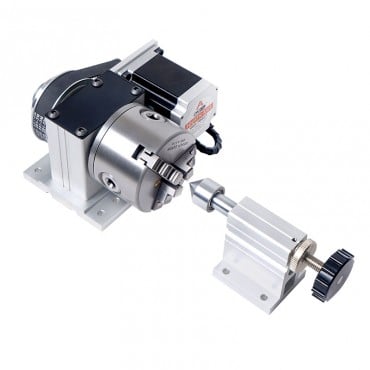

H60-TB80T 4th-axis (A-axis,Rotation-axis)


Availability: In stock

Suitable for X4M, X4-800L, X6M, X6-2200L, X8M, X8-2200L.
If your machine is 3-axis version, you need to buy a Stepper Drive board for the 4th-axis.

Shopping Policy
  • Shipping by DHL/FEDEX/TNT, more>
  • We accept PayPal, you can use credit card through PayPal.
  • Estimated Shipping Time: 10 - 15days
  • Buyer Protection: Full Refund if you don't receive your order.
  • Free Water pump (only for machine with water-cooling spindle).
New generation 4th Axis for CNC Engraving Machine


Suitable for X4M, X4-800L, X6M, X6-2200L, X8M, X8-2200L.

What's Included:

• 3 Jaw self-centering chuck, inside and outside jaws included.
• Synchronous belt reduction mechanism.
• Adjustable tailstock, live center included.
• Low inductance Nema 23 stepper motor and cable.
• All required fasteners for mounting to your CNC machine.


• 80mm 3 jaw chuck
• Nema 23 stepper motor, 2 PHASE,1.8°/STEP, CURRENT 3A.
• Center height: H=60mm
• Max swing diameter: ≤110mm
• Diameter of through hole: ≤16mm
• Reduction ratio: 4 : 1
• Deceleration method: synchronous wheel + synchronous belt
• Maximum RPM: 120
• Weight: 5.4kg


The H60-TB80T CNC Rotary Axis adds rotary cutting and indexing capabilities to benchtop CNC machines.
It can be mounted to an existing machine parallel with the X or Y axis.
Mounting parallel to the Y axis (perpendicular to the machine gantry) maximizes workpiece length, while mounting parallel to the X axis preserves greater traditional routing work area.
