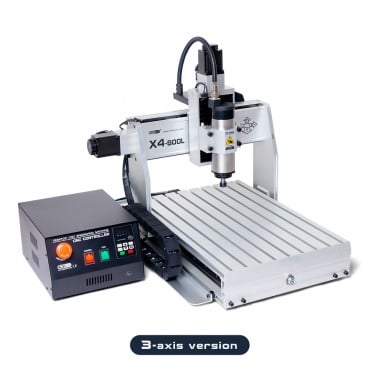

OMIO CNC X4-800L CNC Router | Desktop Engraving machine

US$1,599.00

Availability: In stock

Standard come with HG15 Linear Guide Rails, X054 High Performance Digital Stepping Drivers, USB Motion Control Card, Limit Switches, Wireless Control Handle, 4 bearings ER11-800W air-cooled Spindle.


Shipping: Add product to Cart then go to shopping cart page to check the shipping cost.


<<   Back to learn more

* Required Fields

US$1,599.00
Shopping Policy
  • Shipping by DHL/FEDEX/TNT, more>
  • We accept PayPal, you can use credit card through PayPal.
  • Estimated Shipping Time: 10 - 15days
  • Buyer Protection: Full Refund if you don't receive your order.
  • Free Water pump (only for machine with water-cooling spindle).
Specifications
Equipment Specifications
Max. working stroke: (X)270×(Y)390×(Z)105mm
Acceptable material thickness: ≤115mm
Frame Material: 6061 and 6063 Hard aluminum alloy  (The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.)
Rail type: HG15 Linear Guide Rails (Y-axis guide rail with double flange block)
Screw Type: 1605 Ball screw,Pitch 5mm
Positioning accuracy: 0.05mm
Spindle Motor : Powerful Brushless frequency spindle, 800W
Revolution Speed: 6000~24000rpm/min
Collet type : ER11(equipped with 3.175mm and 6mm collet)
X/Y/Z Stepper Motor : NEMEA23 2.8A/130N.cm
X/Y/Z/A Stepper Drives: X054 High performance Digital Stepper Drives
Feed rate : 300~5000mm/min
Equipment Working Requirements
Computer Laptop or Desktop
Communication Interface: USB
Operation System Windows XP, Windows 7, Windows 10
Control Software MACH3 (recommend use the version which we send to .)
Command code: G-code(file type: /.nc/.ncc/.tab/.txt )
Power: 100V-120V or 220V-240V
Environment : Temp: 5°~40° C; Humidity: 35 to 80%
Equipment Dimensions and Weight
Equipment dimensions: L690 × W545 × H560mm
Machine weight: 45kg
Package dimension : 1 box
4th-axis for 4-axis version (A-axis,Rotation-axis)
H60 Rotation-axis (come with X054 Stepper drive *1)
Center height: H = 60mm
Maximum clamp diameter: ≤50mm
Maximum turning diameter: ≤110mm
Reduction ratio: 4 : 1
Deceleration mode: Synchronous belt + synchronous wheel.
Stepper motor 57BYGH76-3A
Stepper Drive X054 High performance Digital stepping drive
Processing materials: wood, plastic, copper and aluminum.
Weight: 5.5kg
