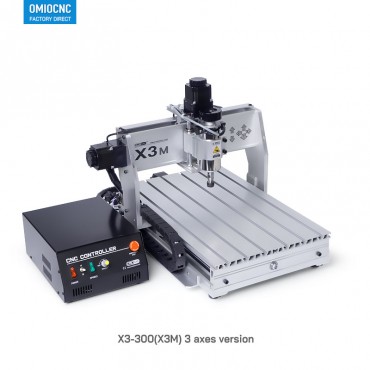

Classic entry-level small CNC engraving machine upgraded !
Overview
X3-300 is the perfect small machine which is fits any office, lab, and classroom space.
It is provides a low-cost alternative for product engineers and designers , and it was loved by the majority of hobbyists because of its good accuracy and
mechanical stability.
The new version X3-300, although has a compact body, but equipped a more powerful spindle and 3-axes separate stepper drives,
Additionally, USB communication function can let you to use a laptop computer to control the machine now.
◎ 300W DC spindle
◎ USB interface, support laptop computer..
◎ Spindle supports replaceable carbon brushes.
◎ Spindle supports switching control (manual or software control).
◎ Use precision ball screw.
◎ newly designed high performance stepper drives, Independently for each axis, high-speed power.
◎ Supports scalable 4th-axis at any time.
◎ 300W DC spindle
◎ USB interface, support laptop computer..
◎ Spindle supports replaceable carbon brushes.
◎ Spindle supports switching control (manual or software control).
◎ Use precision ball screw.
◎ newly designed high performance stepper drives, Independently for each axis, high-speed power.
◎ Supports scalable 4th-axis at any time.
Machinable Material Type
X3-300 applicable to processing bamboo, wood, MDF, all kinds of plastic (such as ABS, nylon, PVC, POM, rubber, etc.), advertising material (such as
acrylic, color plates, aluminum plates, Chevron board), bakelite plate, fiberglass plate, carbon fiber plate, it's can also be used to cutting the aluminum
plates and copper plates(thickness <2mm), and to engraving graphics on surface.
 |
 |
 |
 |
Wood |
Double color plate |
Acrylic plate |
Insulation board |
 |
 |
 |
 |
Carbon fiber plate |
Thin Copper plate |
Thin Aluminum Alloy |
High density board |
Dimensions and Machinable Material Size
◎ Support for long materials machining segmented.
◎ The spindle fixed position can be adjusted up or down.
Six Features
Controlled by Mach3 , Support Windows XP,
Windows 7(32/64bit), Windows 10
All equipped with 1204 Ball Screws
Pitch 4mm, more accurate positioning
Pitch 4mm, more accurate positioning
USB Motion Control Card
Upgrade to 300W DC spindle
◎ Provide a more stronger cutting power.
◎ Replaceable motor carbon brushes and improve the life of the spindle.
◎ Come with 3.175mm high precision collet (1/8 inch).
Mature and Perfect Mechanical Structure
For seven years, we continue to improve the mechanical structure, thereby created a generation classic models in personal CNC field.
Now, although there are growing number of imitators, but we firmly believe that Classic will continue, because we made it really diligently. For your benefit, please buy genuine products.
◎ All frame materials using our proprietary extrusion mold, 6061-T5 extruded aluminum profiles, higher density, higher strength.
◎ Each of materials are so consistent, effectively avoid the errors caused due to machining.
◎ Using higher accuracy ball screw, it is worthwhile to pay a higher cost for accuracy;
◎ Professional installation and fixation methods of the screw, and clasped type couplings ;
◎ Beautiful shape, it is not just an effective tool, it is your capable assistant.
Now, although there are growing number of imitators, but we firmly believe that Classic will continue, because we made it really diligently. For your benefit, please buy genuine products.
◎ All frame materials using our proprietary extrusion mold, 6061-T5 extruded aluminum profiles, higher density, higher strength.
◎ Each of materials are so consistent, effectively avoid the errors caused due to machining.
◎ Using higher accuracy ball screw, it is worthwhile to pay a higher cost for accuracy;
◎ Professional installation and fixation methods of the screw, and clasped type couplings ;
◎ Beautiful shape, it is not just an effective tool, it is your capable assistant.
Performance Parameters
Equipment Specifications
| Max. working stroke： | (X)290×(Y)390×(Z)57mm |
| Acceptable material thickness： | ≤84mm |
| Frame Material： | 6061-T5 extruded aluminum alloy |
| Rail type： | Chromeplate shaft+Linear Bearings |
| Screw Type： | Ball screw,Diameter 12mm,screw thread pitch 4mm |
| Positioning accuracy： | 0.05mm |
| Spindle Motor ： | DC spindle,300W |
| Revolution Speed： | 5000~11000rpm/min |
| Collet type ： | ER11(equipped with 3.175mm collet) |
| X/Y/Z Stepper Motor ： | Stepper Motor 57BYGH41-1.8A |
| X/Y/Z/A Stepper Drives： | T65X3-USB high performance drive for independence |
| Feed rate ： | 300~5000mm/min |
Equipment Working Requirements
| Computer | Laptop or Desktop |
| Communication Interface： | USB |
| Operation System | Windows XP, Windows 7, Windows 10 |
| Control Software | MACH3 (recommend use the version which we send to .) |
| Command code： | G-code(file type: /.nc/.ncc/.tab/.txt ) |
| Power： | 100V-120V or 220V-240V |
| Environment ： | Temp: 5°~40° C; Humidity: 35 to 80% |
Equipment Dimensions and Weight
| Equipment dimensions： | L620*W490*H410mm （24.4 * 19.3 * 16.1 inches) |
| Machine weight： | 28kg (62 lbs) ,include package box. |
| Package dimension ： | 1 box, 600*460*370mm |
Standard Package list
Note:
◎ X3-300 packaged with one box.
◎ X3-300 packaged with one box.
