OMIOCNC Desktop Engraver
X4-800-USB CNC engraving machine is a professional entry-level CNC equipment, it is equipped with professional 800W frequency spindle motor, it can be turned on/off spindle automatically via relay controlling. we provide it with a variety of optional enhanced configuration, if you think X6 is too big, or 3040 is not enough powerfull , so the X4 would be a better choice.

◎ 800W ER11 spindle
◎ USB2.0 interface, support laptop computer.
◎ More Upgrade Optionals.
◎ Featured highly matching VFD guaranteed spindle motor to running on high performance.
◎ Reasonable lines layout reflected the intentions of design.
◎ H60 4th-axis, come with YOC335 Stepper drive.
Machinable Materials
X4-800-USB suitable for machining of bamboo, wood, various plastics (such as ABS, POM, nylon, glass, rubber, etc.), advertising logo material (such as acrylic, color plates, aluminum panels, Chevron board), bakelite plate, fiberglass plate, carbon fiber plate, non-ferrous metals (such as gold, silver, copper, aluminum, lead, zinc, stainless steel, etc.).
Double color plate
Acrylic plate
Insulation board
Carbon fiber plate
Thin Copper plate
Aluminum Alloy
Stainless steel plate

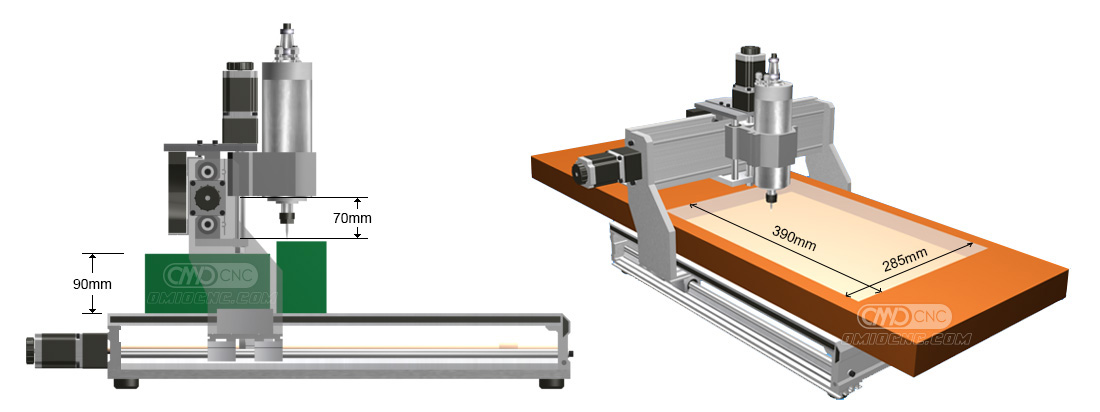

Machinable Material Dimensions

◎ Support for long materials machining segmented.

◎ The spindle fixed position can be adjusted up or down.

More Powerful Cutting Force
Wireless control handle,
easy and convenient to use
High Performance USB Motion controller
for mach3 version, support 4-axes
YOC335 high performance stepper drives
Independently for each axis, high-speed power
All equipped with 1605 Ball Screws
Pitch 5mm, more accurate positioning
travel limit protection
Mature and Perfect Mechanical Structure
For seven years, we continue to improve the mechanical structure, thereby created a generation classic models in personal CNC field.
Now, although there are growing number of imitators, but we firmly believe that Classic will continue, because we made it really diligently. For your benefit, please buy genuine products.
◎ All frame materials using our proprietary extrusion mold, 6061-T5 extruded aluminum profiles, higher density, higher strength.
◎ Each of materials are so consistent, effectively avoid the errors caused due to machining.
◎ Using higher accuracy ball screw, it is worthwhile to pay a higher cost for accuracy;
◎ Professional installation and fixation methods of the screw, and clasped type couplings ;
◎ Beautiful shape, it is not just an effective tool, it is your capable assistant.

Equipment Specifications
Max. working stroke: (X)285×(Y)390×(Z)70mm
Acceptable material thickness: ≤90mm
Frame Material: 6061 and 6063 Hard aluminum alloy  (The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.)
Rail type: Chrome-plate shaft+Linear Bearings, X/Y/Z Diameter=20/20/13mm
Screw Type: 1605 Ball screw,Pitch 5mm
Mechanical Resolution: XYZ-axis : 0.0025 mm/step
Positioning accuracy: 0.05mm
Spindle Motor : Powerful Brushless frequency spindle,800W,water-cooled
Revolution Speed: 3000~24000rpm/min
Collet type : ER11(equipped with 3.175mm collet)
X/Y/Z Stepper Motor : NEMEA23 2.8A/130N.cm
X/Y/Z/A Stepper Drives: YOC335 High performance Digital stepping drive
Feed rate : 300~5000mm/min
Equipment Working Requirements
Computer Laptop or Desktop
Communication Interface: USB2.0 (doesn’t support USB3.0)
Operation System Win2000/XP, Win7(32/64bit) (Prohibit the installation of any other software except Mach3.)
Control Software MACH3 (recommend use the version which we send to .)
Command code: G-code(file type: /.nc/.ncc/.tab/.txt )
Power: 100V-120V or 220V-240V
Environment : Temp: 5°~40° C; Humidity: 35 to 80%
Equipment Dimensions and Weight
Equipment dimensions: L675 × W540 × H500mm
Machine weight: 42kg
Package dimension : 1 box, L640 × W500 × H440mm
Optional: 4th-axis (A-axis,Rotation-axis)
H60 Rotation-axis
Center height: H = 60mm
Maximum clamp diameter: ≤50mm
Maximum turning diameter: ≤110mm
Reduction ratio: 3: 1
Deceleration mode: Synchronous belt + synchronous wheel.
Stepper motor 57BYGH76-3A
Stepper Drive YOC335 High performance Digital stepping drive
Processing materials: wood, plastic, copper and aluminum.
Weight: 5.5kg
Upgrade Spindle

X4-800 comes standard with a 65mm 800W water-cooled spindle motor (length 160mm).
We also offer 2 kinds of enhanced Spindle 800w selections for X4 series).
195mm water-cooled spindle (4 bearings) +$40.
190mm air-cooled spindle (4 bearings) +$65. (if you often carving copper or aluminum, this is better selection)

Any spindle comes standard with 2 kinds of 3.175mm*1 and 6mm collet *1.

Standard Package list
◎ X6-800-USB packaged with one box.
